B0623 Arducam 3MP ISX031 MIPI Camera for NVIDIA Jetson Orin Nano/NX

Description

B0623 Arducam 3MP ISX031 MIPI Camera for NVIDIA Jetson Orin Nano/NX

The Arducam 3MP ISX031 MIPI Camera brings Sony’s automotive-grade imaging performance to the NVIDIA Jetson Orin platform. Featuring a 120 dB high dynamic range, built-in ISP, and LED flicker mitigation, it delivers exceptional clarity in complex lighting—from bright sunlight to dim indoor scenes with LED illumination. With a wide-angle lens and native Jetson compatibility, it’s an ideal camera for AI vision, robotics, and outdoor perception systems demanding both stability and image fidelity.

Applications

  • Robotics and autonomous navigation
  • Smart traffic systems and ADAS prototypes
  • Industrial and warehouse automation
  • Drone vision and environmental monitoring
  • Embedded AI projects on Jetson Orin Nano/NX

Features

  • ▶ 120 dB High Dynamic Range (HDR) Powered by Sony’s ISX031, this camera achieves a remarkable 120 dB HDR, capturing fine details in scenes with strong contrast — from bright outdoor sunlight to shaded areas. Ideal for autonomous systems that must see clearly under rapidly changing light.

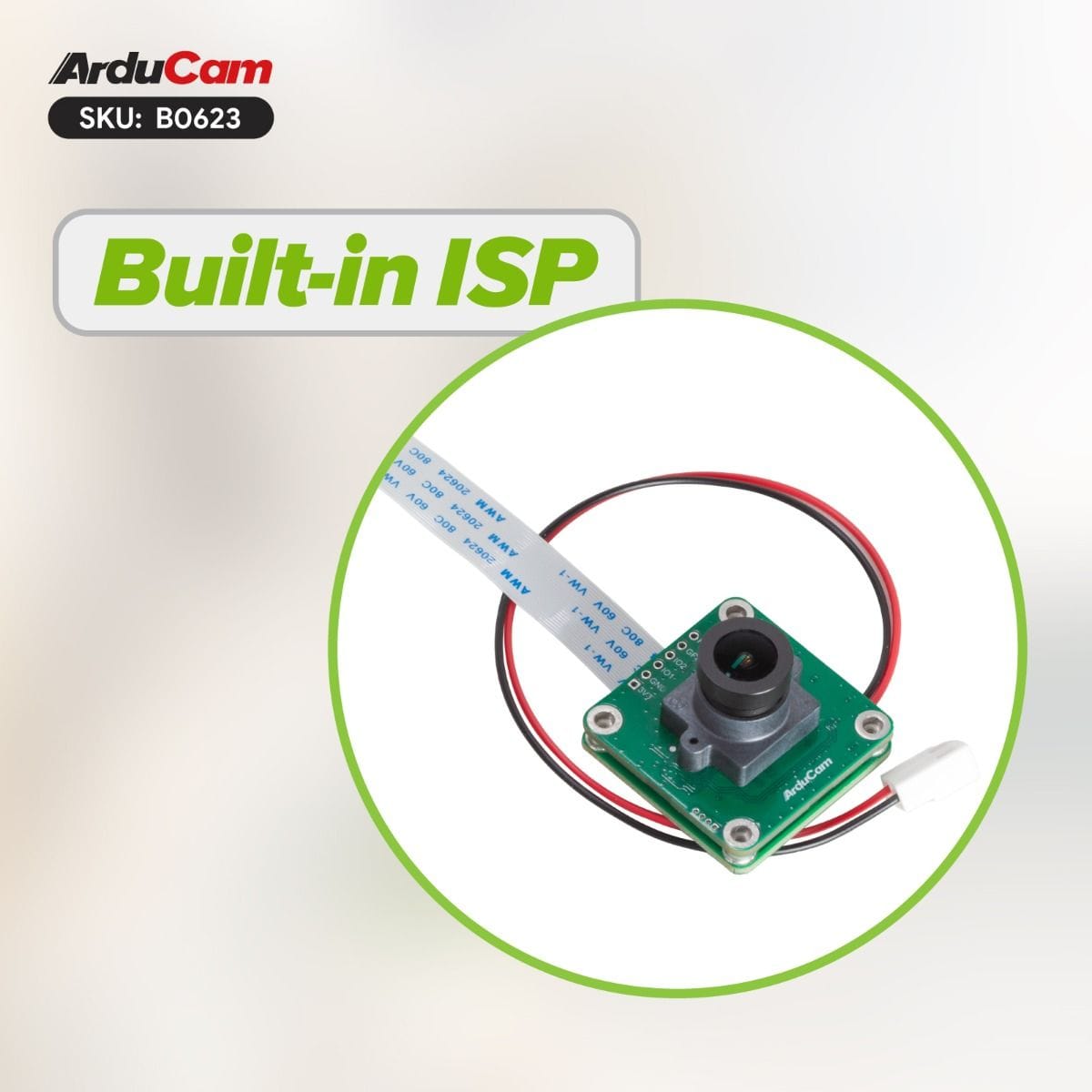

  • ▶ Built-in Image Signal Processor (ISP) The integrated ISP handles real-time image optimization — including auto exposure, white balance, tone mapping, and noise reduction — reducing host workload and ensuring consistent image quality across applications.
  • ▶ LED Flicker Mitigation (LFM) With advanced flicker suppression, the ISX031 ensures stable, artifact-free imaging under LED or strobe light sources common in industrial, traffic, and warehouse environments.
  • ▶ Wide-Angle Lens for Expanded Coverage A factory-calibrated wide-angle lens provides a broad field of view, enabling greater spatial awareness and scene coverage for robotics, vehicles, or AI perception systems.

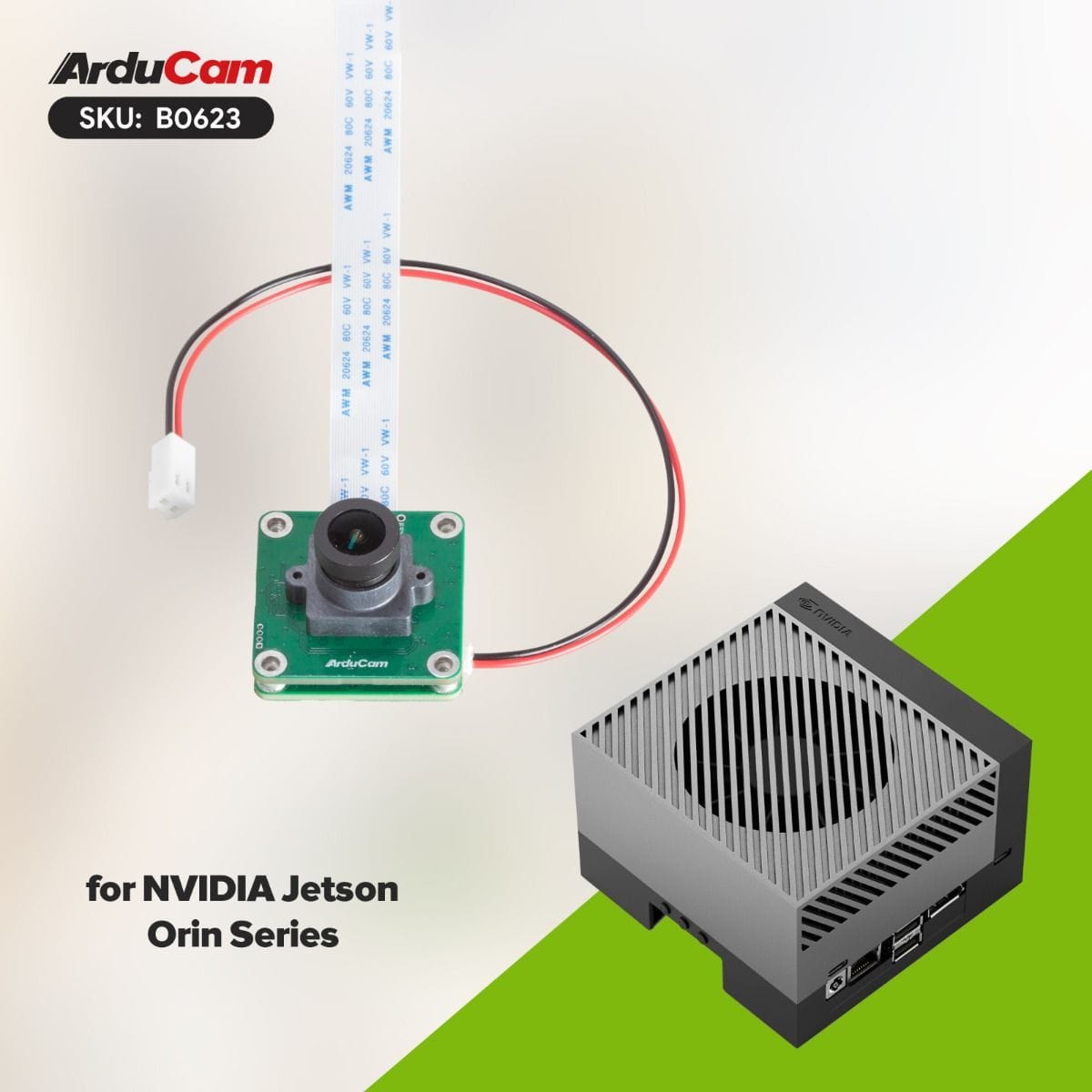

  • ▶ Seamless Integration with Jetson Orin Nano/NX Optimized for NVIDIA Jetson Orin Nano and NX platforms through the MIPI CSI-2 interface, offering high data throughput, low latency, and full compatibility with NVIDIA’s vision frameworks.

Specifications

Image Sensor
Sensor ISX031
Resolution 3 Megapixels
Chroma Color
Shutter Type Rolling Shutter
Optical Format 1/2.42"
Pixel Size 3.0 µm x3.0 µm
Sensor Active Area 1920(H)×1536(V)
Sensor Image Area 5.760 mm x 4.608 mm (7.38 mm diagonal)
Output Format YUV
Resolution@fps 1920x1536@60fps, 1920x1080@60fps
ISP Built-in ISP
Lens
Focus Type Fixed Focus

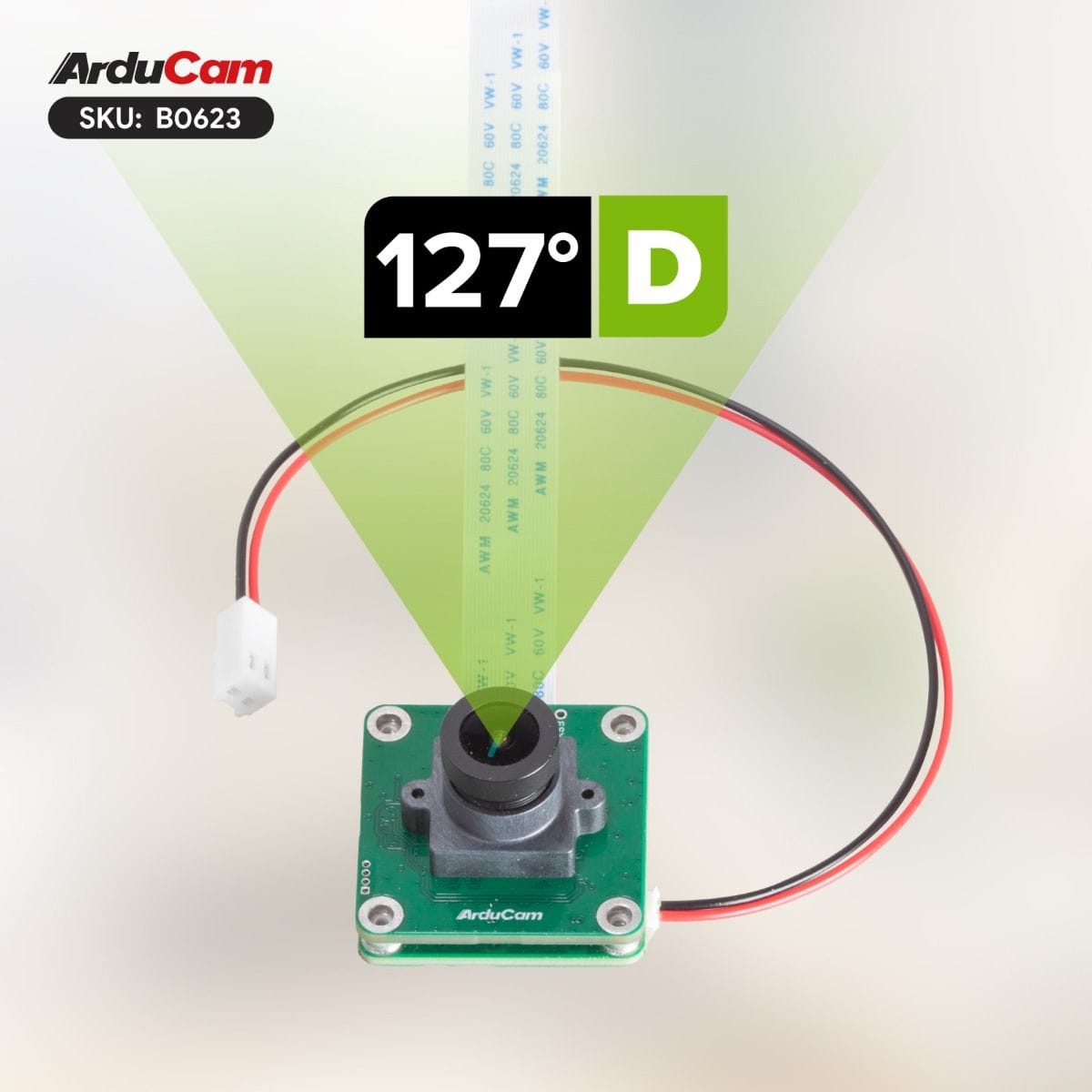

FOV 127°(D)×97°(H)×76°(V)
Lens Mount M12 Mount
F.NO F2.5
E.F.L 3.57mm
IR Sensitivity Integral 650nm IR Filter, visible light only
Default Focus Distance 300cm-INF
Distrotion <-18%
Weight 3.8g
Functionality and Compatibility
HDR Support Yes
Supported Platform NVIDIA Orin Nano/Orin NX/AGX Orin
Supported JetPack Version JetPack6.2/L4T36.4.3 and later versions
Camera Interface MIPI CSI-2
MIPI Lanes 4-Lane by default
User Control Parameters (v4l2-ctl) Brightness, Contrast, Saturation, Hue, Sharpness, Flicker, hflip, vflip
Electrical and Mechanical
Operating Voltage 5V
Power Consumption 1W
Camera Board Size 34×34 mm
Overall Weight (Net) 15g
Standard and Certifications
Temperature range (Storage) -4°F-167°F (-20°C to +85°C)
Temperature range (Operating) 32°F-122°F (0°C to +50°C)
Certification RoHS

Package Including

  • 1 x Arducam 3MP ISX031 HDR MIPI Camera Module
  • 1 x 15cm 22-22pin FPC Cable
  • 1 x 20cm DuPont 2.54-2P(F)+ZH1.5
