B0624 Arducam 3MP ISX031 USB3 UVC Camera 120 dB HDR Built-in ISP

Description

B0624 Arducam 3MP ISX031 USB3 UVC Camera 120 dB HDR Built-in ISP

The Arducam 3MP ISX031 USB3 UVC Camera combines Sony’s automotive-grade ISX031 sensor with a high-speed USB 3.0 interface for seamless, plug-and-play imaging on major platforms. Featuring 120 dB HDR, built-in ISP, and LED Flicker Mitigation, it delivers clear, flicker-free images even under complex lighting. With a wide-angle lens and UVC compatibility, this camera is ideal for developers and engineers seeking a reliable, high-performance vision solution that works instantly out of the box.

Applications

  • AI vision and robotics development
  • Smart traffic and LED-lit monitoring systems
  • Industrial inspection and automation
  • Drone vision and environmental imaging
  • Research and prototyping with Jetson, PC, or SBC platforms

Features

  • ▶ 120 dB High Dynamic Range (HDR) The ISX031 sensor delivers up to 120 dB HDR, enabling precise detail capture in both bright sunlight and deep shadow. Ideal for outdoor and mixed-lighting scenarios.
  • ▶ Built-in Image Signal Processor (ISP) An integrated ISP performs color correction, noise reduction, and tone mapping directly on the sensor, ensuring consistent, true-to-life imagery without extra processing load on the host.
  • ▶ LED Flicker Mitigation (LFM) Advanced LED flicker suppression guarantees stable video streams in environments with LED lighting, such as traffic systems or warehouses.

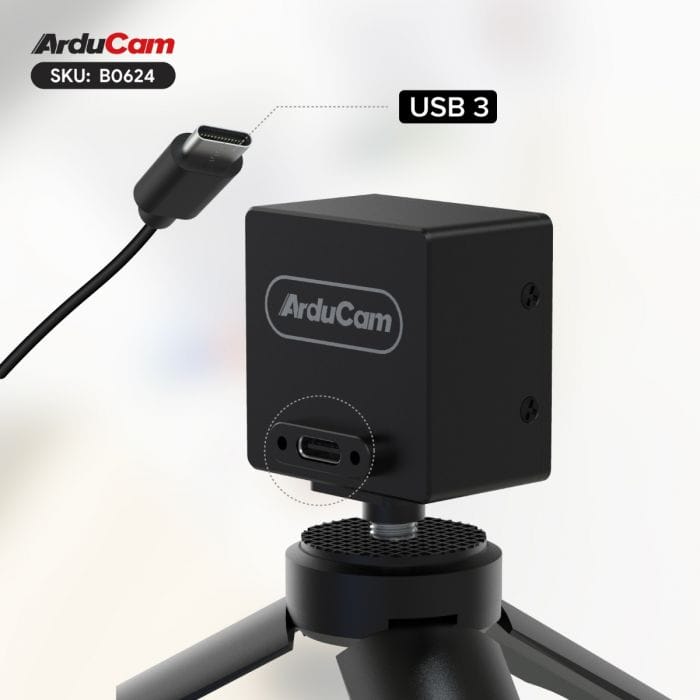

  • ▶ USB 3.0 UVC Plug-and-Play No drivers required — simply connect via USB 3.0 and start capturing. Supports popular apps and frameworks across Windows and Linux.
  • ▶ Wide-Angle Lens for Broader Coverage Factory-mounted wide-angle lens provides greater situational awareness, ideal for AI perception, navigation, and inspection systems.

Specifications

Image Sensor
Sensor ISX031
Resolution 3 Megapixels
Chroma Color
Shutter Type Rolling Shutter
Optical Format 1/2.42"
Pixel Size 3.0 µm x3.0 µm
Sensor Active Area 1920(H)×1536(V)
Sensor Image Area 5.760 mm x 4.608 mm (7.38 mm diagonal)
Output Format YUV
Resolution@fps 1920x1536@30fps, 1920x1080@30fps
ISP Built-in ISP
Lens
Focus Type Fixed Focus
FOV 127°(D)×97°(H)×76°(V)
Lens Mount M12 Mount
F.NO F2.5
E.F.L 3.57mm
IR Sensitivity Integral 650nm IR Filter, visible light only
Default Focus Distance 300cm-INF
Distortion <-18%
Weight 3.8g
USB Features
Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts
Connector Type-C reversible interface connector
UVC Compliant No additional drivers required
Functionality and Compatibility
HDR Support Yes
Supported OS Windows, Linux
Recommend Imaging Applications PotPlayer for Windows, qv4l2 for Linux
UVC Controls Sharpness, Hue, Brightness, Contrast, Saturation, Power Line Frequency
Electrical and Mechanical
Operating Voltage 5 V +/- 5%
Power Consumption Max: 1.6W
Camera Board Size 34×34 mm
Overall Weight (Net) 50g

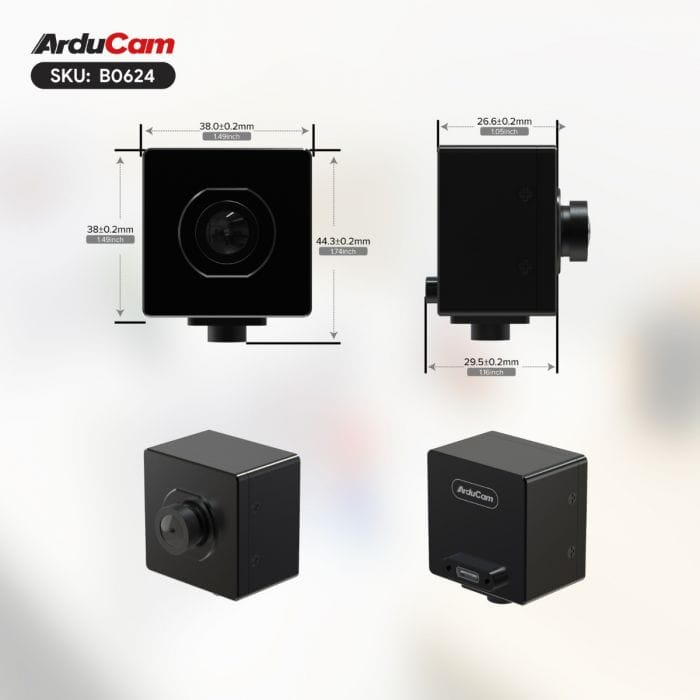

Overall Size 38x38 mm
Standard and Certifications
Temperature range (Storage) -4°F-167°F (-20°C to +85°C)
Temperature range (Operating) 32°F-122°F (0°C to +50°C)
Certification RoHS

Package Including

  • 1 x Arducam 3MP ISX031 HDR USB3 UVC Camera Module
  • 1 x 1m USB A to Type-C Cable

Documentation
