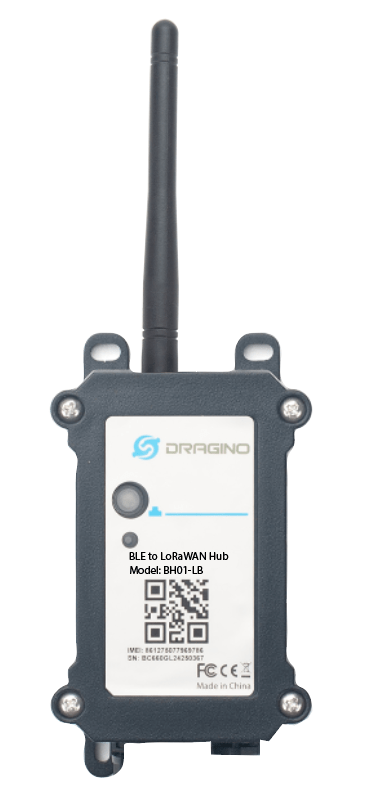

BH01-LB BLE to LoRaWAN Hub Converter
Dragino BH01-LB/LS BLE to LoRaWAN Hub is an edge communication node device designed for loT applications. It uses the BLE Bluetooth module to periodically scan and collect data from surrounding Bluetooth temperature and humidity sensors (such as BCN02, iBeasons or third-party BLE sensors), and then uses the LoRaWAN protocol to transmit the data over long distances to the cloud platform, achieving seamless connection between Bluetooth devices and low-power wide area networks.
BH01-LB/LS is a BLE to LoRaWAN Hub which can turn BLE devices to LoRaWAN devices. This feature can help system integrator have a wide choice in sensor selection and simplify the network structure.
It is suitable for cold chain warehouse monitoring, smart agricultural environment monitoring, asset tracking and urban infrastructure health management. It combines the flexibility of Bluetooth and the wide coverage of LoRaWAN. Compared with wifi connection, it can significantly reduce the deployment cost of the Internet of Things.
BH01-LB/LS has a built-in BLE module, the user can configure the sensor remotely via Mobile Phone. It also supports OTA upgrades via private LoRa protocol for easy maintaining.
BH01-LB/LS is powered by an 8500mA Li/SOCl2 battery.
Features:
- LoRaWAN 1.0.3 Class A
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Data collcetion: Bluetooth tags monitor environmental parameters in real time and upload data to the Hub via BLE protocol
- Combines BLE’s short-range precision with LoRaWAN’s long range transmission
- Monitor Battery Level
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery (BH01-LB)
Bluetooth Sensor Tag Specification:
DR-TAH02:
- Bluetooth version: Bluetooth LE 5.1 protocol
- Shell material: PET composite plastic bag (heat sealed)
- Temperature range: -40°C ~ +85°C, ±0.3°C
- Waterproof level: IP67
- Battery capacity: 600mAh
- Working temperature: -40°C ~ +60°C
- Battery specification: CR2450
- Data storage: 512 records
- Battery life: 3 years (varies with the transmission power broadcast
- frequency settings)
- Transmit power: -19.5dBm ~ +2.5dBm (configurable)
- Broadcast frequency: 500ms (configurable)
- Sampling frequency: 5min/time (configurable)
- Broadcast power consumption: 22uA (varies with the transmission
- power and broadcast frequency settings)
- Broadcast mode: Custom Sensor broadcast
- Broadcast distance Distance: 100m (varies with the transmission
- power setting)
- Configuration APP: nRF connect (Android / IOS)
DR-ES01:
- Bluetooth version: Bluetooth LE 5.3 protocol
- Casing material: PC material
- Temperature range: 0°C ~ +85°C, ±0.2°C
- Waterproof level: IP65
- Battery capacity: 1100mAh
- Working temperature: 0°C ~ +85°C
- Battery specification: AAA LR03 x2
- Battery life: 3 years (varies with the transmission power broadcast
- frequency settings)
- Transmit power: -20dBm ~ +4dBm (configurable)
- Broadcast frequency: 1000ms (configurable)
- Humidity range: 0~100%RH, ±2%RH
- Broadcast power consumption: 34uA (varies with the transmission
- power and broadcast frequency settings)
- Supported system: Android 4.3 / IOS7.0 and above
- Broadcast mode: Custom Sensor broadcast
- Broadcast distance Distance: 100m (varies with thetransmission
- power setting)
- Configuration APP: nRF connect (Android / IOS)
- Supported system: Android 4.3 / IOS7.0 and above
