CAN FD to ETH Protocol Converter Bidirectional DIN-Rail

Description

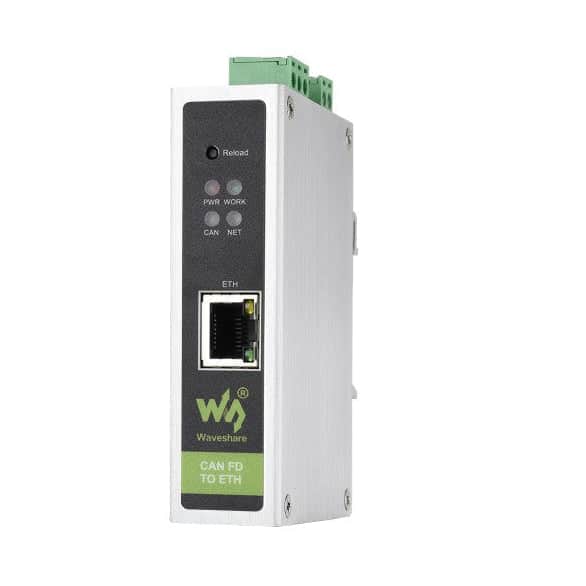

CAN FD to ETH Protocol Converter Bidirectional DIN-Rail

The CAN FD TO ETH is a DIN-rail CAN FD to ETH bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and Network port devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

Specifications:


Classify Parameter Describe
Parameter Working voltage DC 9V ~ 36V

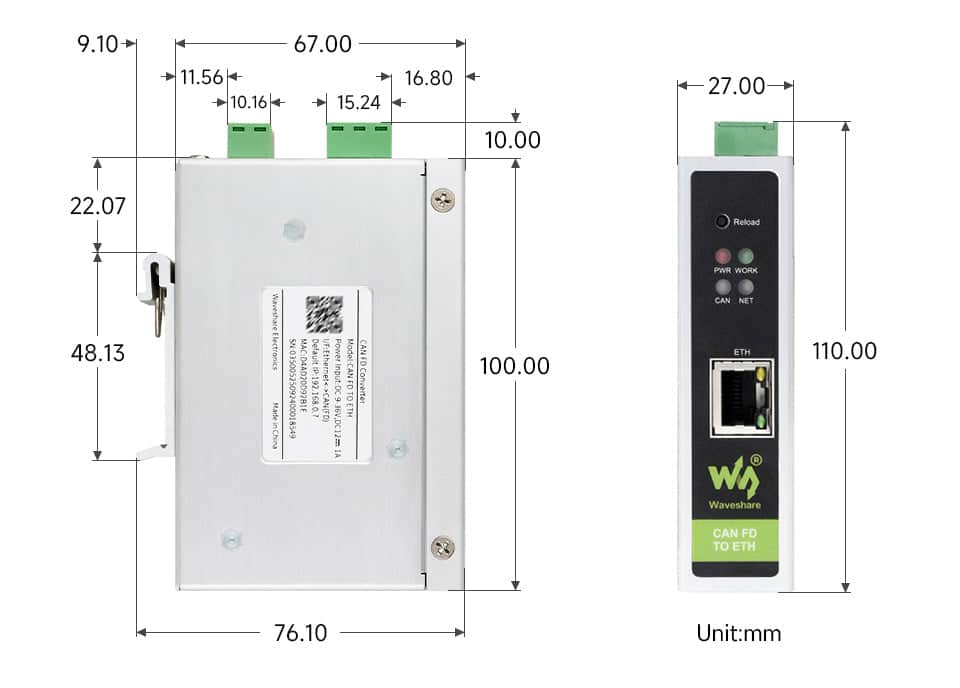

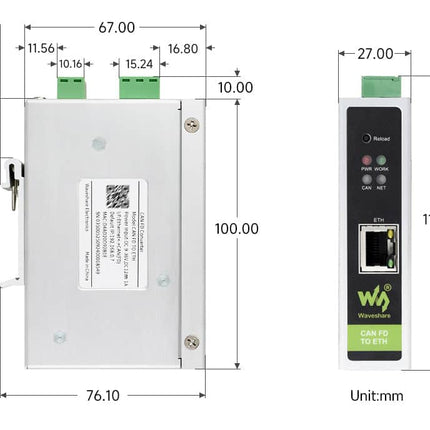

Size 110 × 27 × 76.1 (mm)

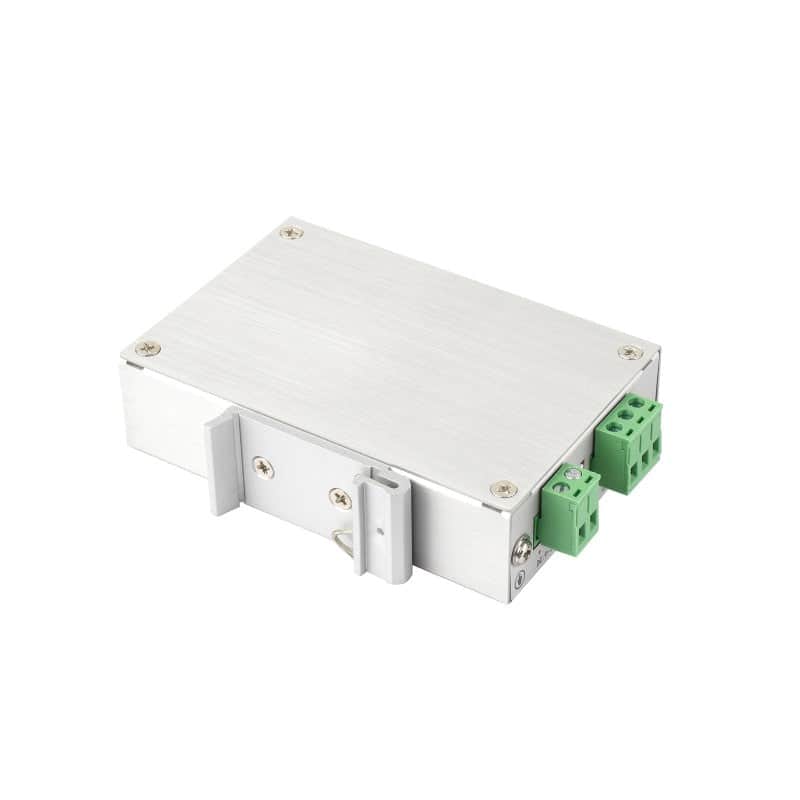

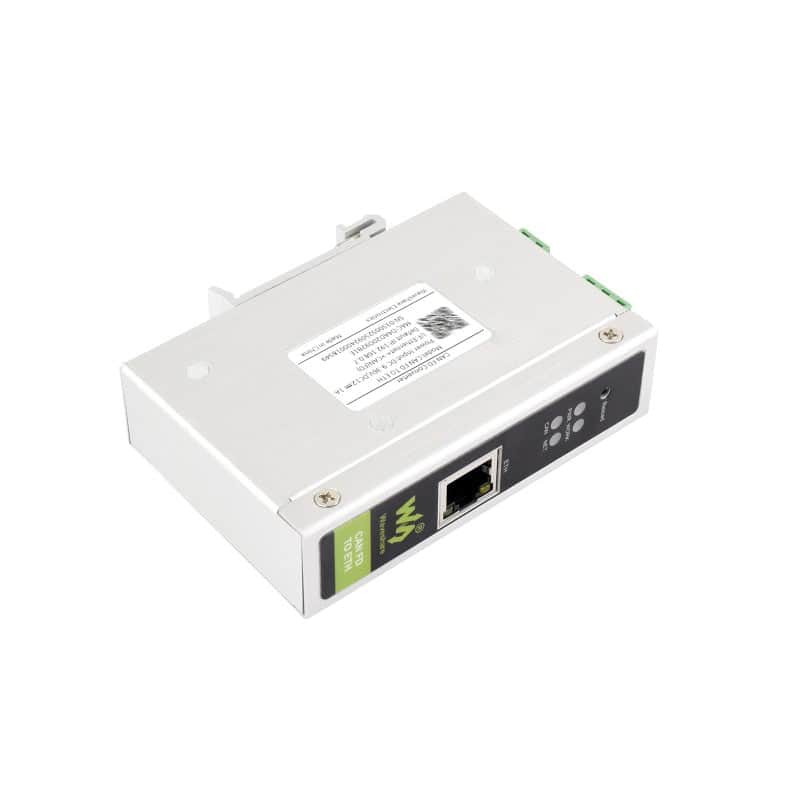

Way to install DIN-rail installation
Reload button Long-press to restore factory settings
Indicator light POWER, WORK, NET and CAN

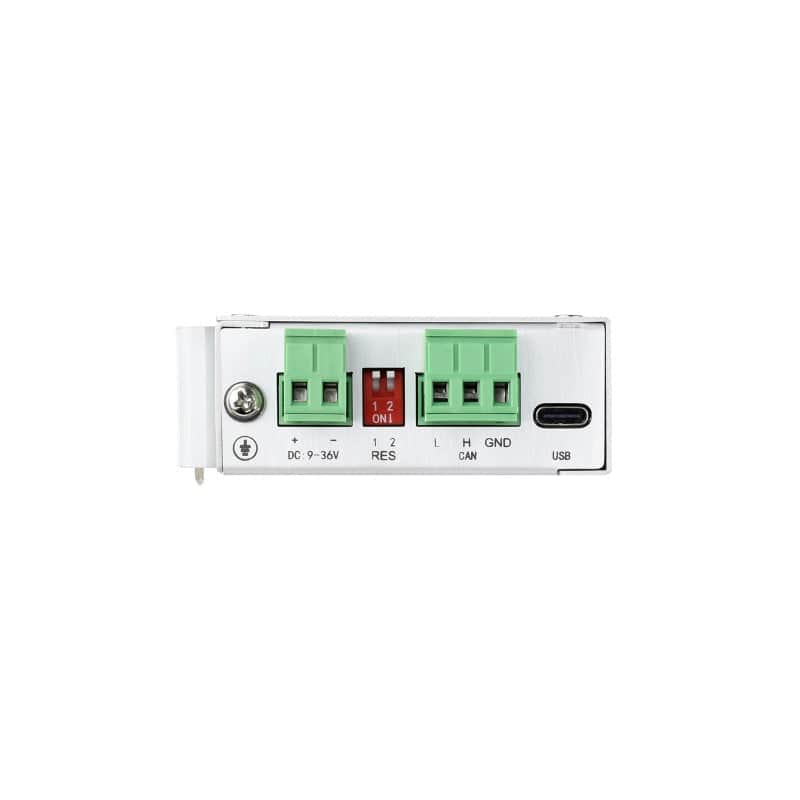

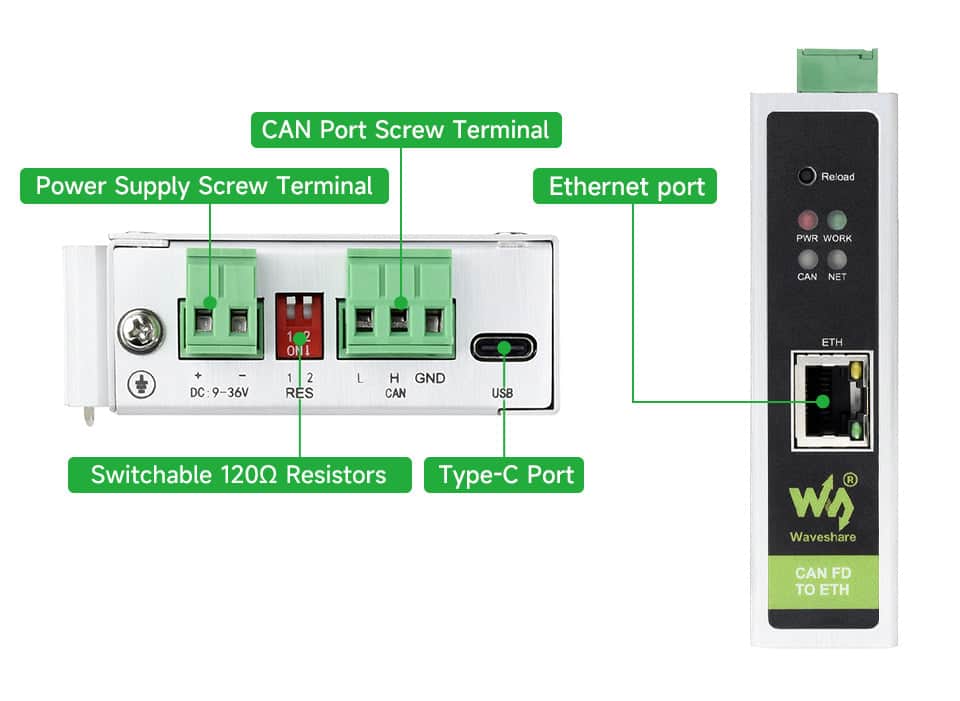

Interface Parameters CAN port specification 1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B
CAN port baud rate Arbitration domain baud rate: 5Kbps ~ 1Mbps
Data domain baud rate: 100Kbps ~ 5Mbps

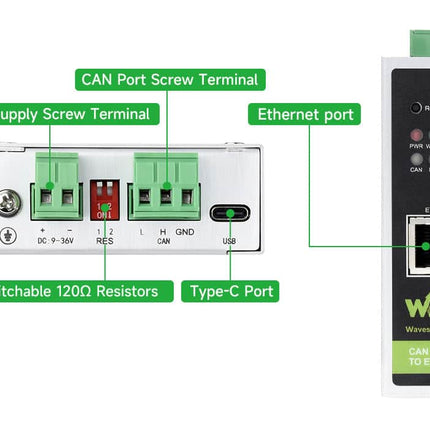

Terminal resistor Built-in 2 × 120Ω terminal resistors,
Switching either DIP switch to ON connects one 120 Ω resistor in parallel.
Switching both to ON connects two 120Ω resistors in parallel
Network port specification RJ45,10/100Mbps,Cross-connection adaptive
Work Environment Working temperature -40℃ ～ 85℃
Storage temperature -40℃ ～ 105℃
Working humidity 5% ～ 95% RH (no condensation)
Storage humidity 5% ～ 95% RH (no condensation)
Software Function Networking protocol TCP server, TCP client, UDP server, and UDP client
Modbus gateway CAN FD to Modbus TCP (Master/Slave)
Send the message Supports up to 64 transmit messages
Receive messages Supports up to 64 receiving messages
Protocol conversion Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion
CAN ID Supports standard frame and extended frame
Frame ID filtering Supports only standard frames, only extended frames, and a custom input frame ID (up to 32 groups)
Pack frame time Supports customizing the number of frames and the time of frame packing
Change direction Supports bidirectional conversion, only Network port to CAN, and only CAN to Network port;
Firmware upgrade Supports the host computer for firmware upgrade
Parameter configuration AT instruction and host computer software configuration
Other features Supports heartbeat packets; register packets; normal, loopback, and only listen modes
Protection Parameters ESD Protection Air discharge: 8 KV, Contact discharge: 6 KV
Eft/Burst Power circuit: 2KV; Network port & CAN port circuit: 1KV
Surge Immunity Test Power circuit: 1KV differential mode, 2KV common mode;
CAN port circuit: 2kV common mode; Network port circuit: 2kV;

Basic Function:

Supports CAN FD To ETH Bidirectional Data Communication

CAN-FD-TO-ETH, basic functions

CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps

CAN-FD-TO-ETH, arbitration domain baud rate

CAN FD data domain baud rate：100Kbps ~ 5Mbps

CAN-FD-TO-ETH, data domain baud rate
Industrial-grade design
CAN-FD-TO-ETH, Industrial-grade design
Supports multiple conversion modes

Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion

CAN-FD-TO-ETH, Supports multi conversion modes

Transparent conversion

Achieve original conversion between CAN FD frames and Ethernet frames

CAN-FD-TO-ETH, Transparent conversion

Transparent Conversion with ID

Transfer the ID information in Ethernet frames to CAN FD frames

CAN-FD-TO-ETH, Transparent Conversion with ID

Standard Conversion

Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format

CAN-FD-TO-ETH, Standard Conversion

Modbus Protocol Conversion

Realise Modbus data transmission over CAN bus through packet segmentation and reassembly

CAN-FD-TO-ETH, Modbus Protocol Conversion

Custom protocol conversion

Users can customise frame headers and trailers to enable bidirectional data conversion

CAN-FD-TO-ETH, Custom protocol conversion

3 Frame Filtering Methods, 32 Sets of Configurable Filters

Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference

CAN-FD-TO-ETH, 3 Frame Filtering Methods, 32 Sets of Configurable Filters

Configuration parameters via host computer

CAN-FD-TO-ETH, Configuration parameters via AT commands/host computer


Function Overview

CAN Heartbeat Packet: Acts as a fixed query command, sending heartbeat packets through the CAN network.
Network Heartbeat Packet: Notifies the server that the device is active and maintains a stable network connection with the server.

CAN-FD-TO-ETH, CAN / Network Heartbeat Packet function

Registration Packet Function

Allows the server to identify the source device of incoming data, or serves as an authentication key for the device to access the server’s authorized functions.

CAN-FD-TO-ETH, Registration Packet Function

WiKi Page



Read more

CAN FD to ETH Protocol Converter Bidirectional DIN-Rail

Product form
Free pickup in our shop(s)

SKU: 32598

$99.00 $89.00 Excl. GST

$99.00 $89.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    CAN FD to ETH Protocol Converter Bidirectional DIN-Rail

    The CAN FD TO ETH is a DIN-rail CAN FD to ETH bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and Network port devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

    Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

    Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

    Specifications:


    Classify Parameter Describe
    Parameter Working voltage DC 9V ~ 36V
    Size 110 × 27 × 76.1 (mm)
    Way to install DIN-rail installation
    Reload button Long-press to restore factory settings
    Indicator light POWER, WORK, NET and CAN
    Interface Parameters CAN port specification 1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B
    CAN port baud rate Arbitration domain baud rate: 5Kbps ~ 1Mbps
    Data domain baud rate: 100Kbps ~ 5Mbps
    Terminal resistor Built-in 2 × 120Ω terminal resistors,
    Switching either DIP switch to ON connects one 120 Ω resistor in parallel.
    Switching both to ON connects two 120Ω resistors in parallel
    Network port specification RJ45,10/100Mbps,Cross-connection adaptive
    Work Environment Working temperature -40℃ ～ 85℃
    Storage temperature -40℃ ～ 105℃
    Working humidity 5% ～ 95% RH (no condensation)
    Storage humidity 5% ～ 95% RH (no condensation)
    Software Function Networking protocol TCP server, TCP client, UDP server, and UDP client
    Modbus gateway CAN FD to Modbus TCP (Master/Slave)
    Send the message Supports up to 64 transmit messages
    Receive messages Supports up to 64 receiving messages
    Protocol conversion Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion
    CAN ID Supports standard frame and extended frame
    Frame ID filtering Supports only standard frames, only extended frames, and a custom input frame ID (up to 32 groups)
    Pack frame time Supports customizing the number of frames and the time of frame packing
    Change direction Supports bidirectional conversion, only Network port to CAN, and only CAN to Network port;
    Firmware upgrade Supports the host computer for firmware upgrade
    Parameter configuration AT instruction and host computer software configuration
    Other features Supports heartbeat packets; register packets; normal, loopback, and only listen modes
    Protection Parameters ESD Protection Air discharge: 8 KV, Contact discharge: 6 KV
    Eft/Burst Power circuit: 2KV; Network port & CAN port circuit: 1KV
    Surge Immunity Test Power circuit: 1KV differential mode, 2KV common mode;
    CAN port circuit: 2kV common mode; Network port circuit: 2kV;

    Basic Function:

    Supports CAN FD To ETH Bidirectional Data Communication

    CAN-FD-TO-ETH, basic functions

    CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps

    CAN-FD-TO-ETH, arbitration domain baud rate

    CAN FD data domain baud rate：100Kbps ~ 5Mbps

    CAN-FD-TO-ETH, data domain baud rate
    Industrial-grade design
    CAN-FD-TO-ETH, Industrial-grade design
    Supports multiple conversion modes

    Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion

    CAN-FD-TO-ETH, Supports multi conversion modes

    Transparent conversion

    Achieve original conversion between CAN FD frames and Ethernet frames

    CAN-FD-TO-ETH, Transparent conversion

    Transparent Conversion with ID

    Transfer the ID information in Ethernet frames to CAN FD frames

    CAN-FD-TO-ETH, Transparent Conversion with ID

    Standard Conversion

    Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format

    CAN-FD-TO-ETH, Standard Conversion

    Modbus Protocol Conversion

    Realise Modbus data transmission over CAN bus through packet segmentation and reassembly

    CAN-FD-TO-ETH, Modbus Protocol Conversion

    Custom protocol conversion

    Users can customise frame headers and trailers to enable bidirectional data conversion

    CAN-FD-TO-ETH, Custom protocol conversion

    3 Frame Filtering Methods, 32 Sets of Configurable Filters

    Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference

    CAN-FD-TO-ETH, 3 Frame Filtering Methods, 32 Sets of Configurable Filters

    Configuration parameters via host computer

    CAN-FD-TO-ETH, Configuration parameters via AT commands/host computer


    Function Overview

    CAN Heartbeat Packet: Acts as a fixed query command, sending heartbeat packets through the CAN network.
    Network Heartbeat Packet: Notifies the server that the device is active and maintains a stable network connection with the server.

    CAN-FD-TO-ETH, CAN / Network Heartbeat Packet function

    Registration Packet Function

    Allows the server to identify the source device of incoming data, or serves as an authentication key for the device to access the server’s authorized functions.

    CAN-FD-TO-ETH, Registration Packet Function

    WiKi Page



    Read more
