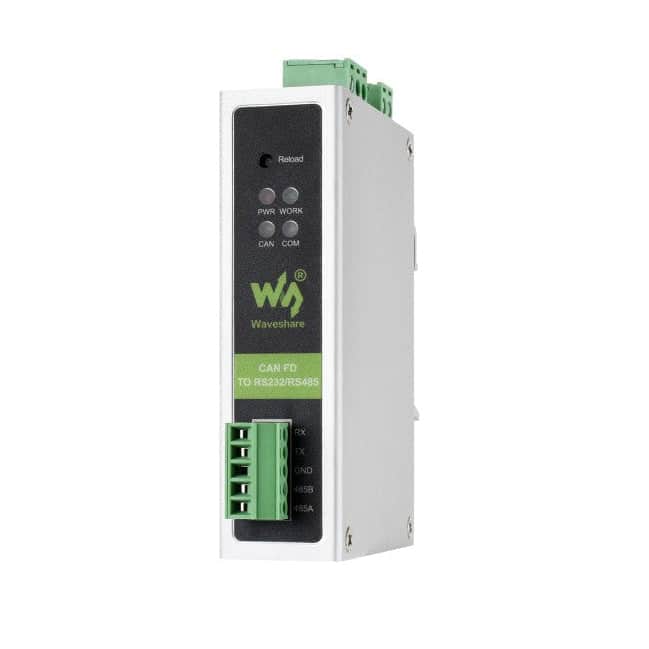

CAN FD to RS232/RS485 Protocol Converter Bidirectional DIN-Rail

Description

CAN FD to RS232/RS485 Protocol Converter Bidirectional DIN-Rail

The CAN FD TO RS232/RS485 is a DIN-rail CAN FD to RS232/RS485 bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and serial devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

Specifications:


Classify Parameter Describe
Parameter Working voltage DC 9V ~ 36V, recommended use 12V 1A
Size 110 × 27 × 85.6 (mm)

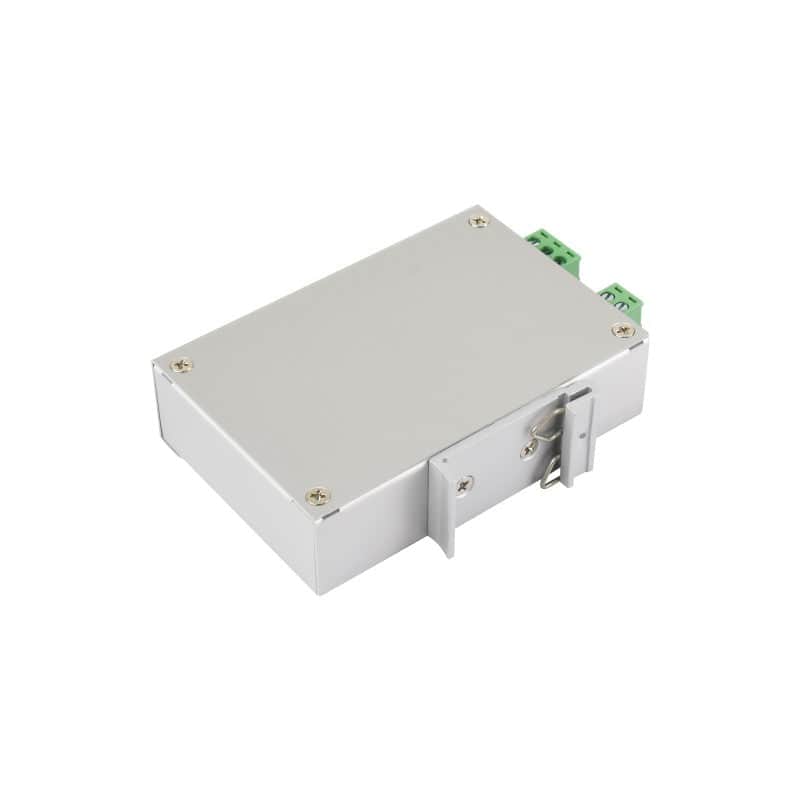

Way to install DIN-rail installation
Reload button Long press to restore factory settings

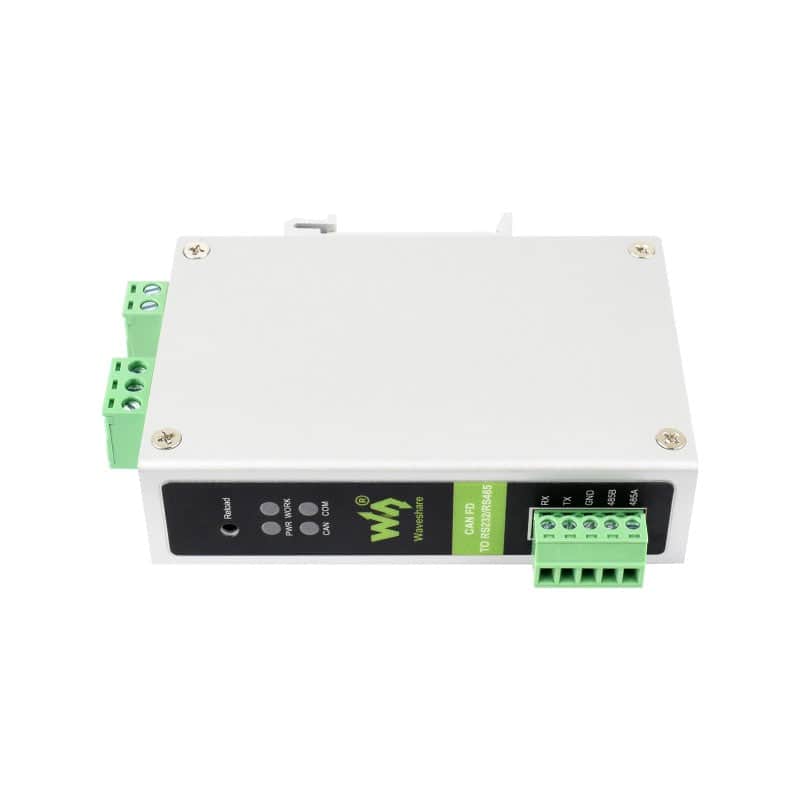

Indicator light POWER, WORK, COM and CAN
Interface Parameters CAN port specification 1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B
CAN port baud rate Arbitration domain baud rate: 5Kbps ~ 1Mbps
Data domain baud rate: 100Kbps ~ 5Mbps
Terminal resistor Built-in 2 × 120Ω terminal resistors,
Switching either DIP switch to ON connects one 120 Ω resistor in parallel.
Switching both to ON connects two 120Ω resistors in parallel
Serial port specification Supports 1-ch RS485 or RS232
Work Environment Working temperature -40℃ ～ 85℃
Storage temperature -40℃ ～ 105℃
Working humidity 5% ～ 95% RH (no condensation)
Storage humidity 5% ～ 95% RH (no condensation)
Software Function Modbus gateway CAN FD to Modbus RTU (Master/Slave)
Send the message Supports up to 64 transmit messages
Receive messages Supports up to 64 receiving messages
Protocol conversion Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion
CAN ID Supports standard frame and extended frame
Frame ID filtering Supports only standard frames, only extended frames, and a custom input frame ID (up to 32 groups)
Change direction Supports bidirectional conversion, only serial port to CAN, and only CAN to serial port;
Firmware upgrade Supports the host computer for firmware upgrade
Parameter configuration AT instruction and host computer software configuration
Protection Parameters ESD Protection Air discharge: 8 KV, Contact discharge: 6 KV
Eft/Burst Power circuit: 2KV; RS485/RS232 circuit: 1KV; CAN circuit: 1KV
Surge Immunity Test Power circuit: 1KV differential mode, 2KV common mode;
CAN circuit: 2KV common mode

Basic Function:


supports CAN FD To RS232/RS485 Bidirectional Data Communication

CAN-FD-TO-RS232/RS485, basic functions

CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps

CAN-FD-TO-RS232/RS485, arbitration domain baud rate

CAN FD data domain baud rate：100Kbps ~ 5Mbps

CAN-FD-TO-RS232/RS485, data domain baud rate
Industrial-grade design
CAN-FD-TO-RS232/RS485, Industrial-grade design
Supports multiple conversion modes

Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion

CAN-FD-TO-RS232/RS485, Supports multi conversion modes

Transparent conversion

Achieve original conversion between CAN FD frames and serial frames

CAN-FD-TO-RS232/RS485, Transparent conversion

Transparent Conversion with ID

Transfer the ID information in serial frames to CAN FD frames

CAN-FD-TO-RS232/RS485, Transparent Conversion with ID

Standard Conversion

Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format

CAN-FD-TO-RS232/RS485, Standard Conversion

Modbus Protocol Conversion

Realize Modbus data transmission over CAN bus through packet segmentation and reassembly

CAN-FD-TO-RS232/RS485, Modbus Protocol Conversion

Custom protocol conversion

Users can customize frame headers and trailers to enable bidirectional data conversion

CAN-FD-TO-RS232/RS485, Custom protocol conversion

3 Frame Filtering Methods, 32 Sets of Configurable Filters

Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference

CAN-FD-TO-RS232/RS485, 3 Frame Filtering Methods, 32 Sets of Configurable Filters

Configuration parameters via host computer

CAN-FD-TO-RS232/RS485, Configuration parameters via AT commands/host computer


Application Scenarios
CAN-FD-TO-RS232/RS485, BMS Battery Monitoring

BMS Battery Monitoring


CAN-FD-TO-RS232/RS485, Industrial Automation

Industrial Automation

CAN-FD-TO-RS232/RS485, EV charging

EV Charging


CAN-FD-TO-RS232/RS485, Traffic Monitoring

Traffic Monitoring

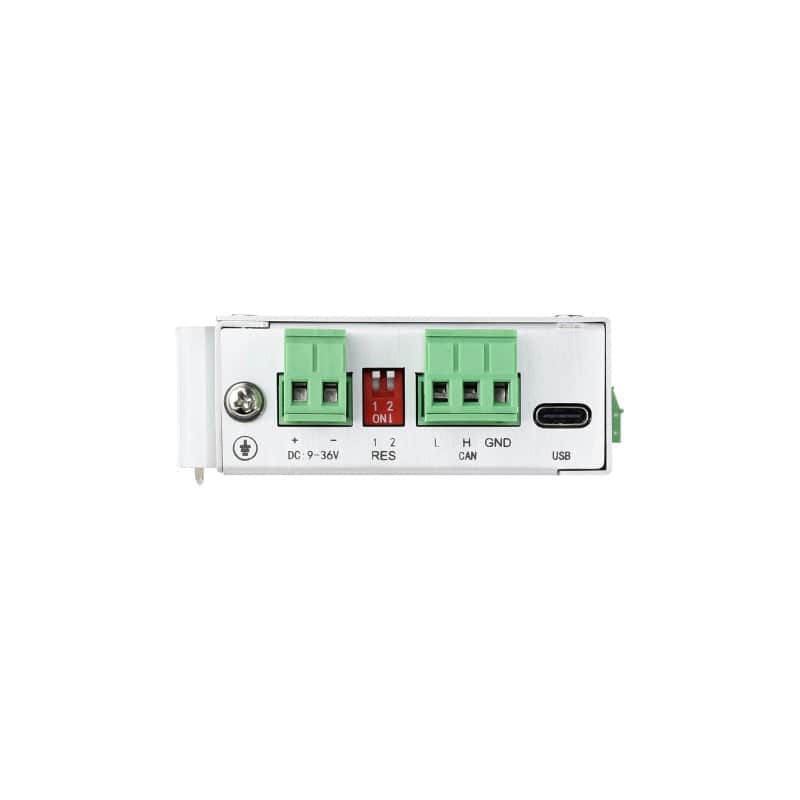

Interface introduction

CAN-FD-TO-RS232/RS485, Interface introduction
Outline dimensions
CAN-FD-TO-RS232/RS485, Outline dimensions

WiKi



Read more

CAN FD to RS232/RS485 Protocol Converter Bidirectional DIN-Rail

Product form
Free pickup in our shop(s)

SKU: 32599

$99.00 $89.00 Excl. GST

$99.00 $89.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    CAN FD to RS232/RS485 Protocol Converter Bidirectional DIN-Rail

    The CAN FD TO RS232/RS485 is a DIN-rail CAN FD to RS232/RS485 bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and serial devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

    Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

    Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

    Specifications:


    Classify Parameter Describe
    Parameter Working voltage DC 9V ~ 36V, recommended use 12V 1A
    Size 110 × 27 × 85.6 (mm)
    Way to install DIN-rail installation
    Reload button Long press to restore factory settings
    Indicator light POWER, WORK, COM and CAN
    Interface Parameters CAN port specification 1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B
    CAN port baud rate Arbitration domain baud rate: 5Kbps ~ 1Mbps
    Data domain baud rate: 100Kbps ~ 5Mbps
    Terminal resistor Built-in 2 × 120Ω terminal resistors,
    Switching either DIP switch to ON connects one 120 Ω resistor in parallel.
    Switching both to ON connects two 120Ω resistors in parallel
    Serial port specification Supports 1-ch RS485 or RS232
    Work Environment Working temperature -40℃ ～ 85℃
    Storage temperature -40℃ ～ 105℃
    Working humidity 5% ～ 95% RH (no condensation)
    Storage humidity 5% ～ 95% RH (no condensation)
    Software Function Modbus gateway CAN FD to Modbus RTU (Master/Slave)
    Send the message Supports up to 64 transmit messages
    Receive messages Supports up to 64 receiving messages
    Protocol conversion Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion
    CAN ID Supports standard frame and extended frame
    Frame ID filtering Supports only standard frames, only extended frames, and a custom input frame ID (up to 32 groups)
    Change direction Supports bidirectional conversion, only serial port to CAN, and only CAN to serial port;
    Firmware upgrade Supports the host computer for firmware upgrade
    Parameter configuration AT instruction and host computer software configuration
    Protection Parameters ESD Protection Air discharge: 8 KV, Contact discharge: 6 KV
    Eft/Burst Power circuit: 2KV; RS485/RS232 circuit: 1KV; CAN circuit: 1KV
    Surge Immunity Test Power circuit: 1KV differential mode, 2KV common mode;
    CAN circuit: 2KV common mode

    Basic Function:


    supports CAN FD To RS232/RS485 Bidirectional Data Communication

    CAN-FD-TO-RS232/RS485, basic functions

    CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps

    CAN-FD-TO-RS232/RS485, arbitration domain baud rate

    CAN FD data domain baud rate：100Kbps ~ 5Mbps

    CAN-FD-TO-RS232/RS485, data domain baud rate
    Industrial-grade design
    CAN-FD-TO-RS232/RS485, Industrial-grade design
    Supports multiple conversion modes

    Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion

    CAN-FD-TO-RS232/RS485, Supports multi conversion modes

    Transparent conversion

    Achieve original conversion between CAN FD frames and serial frames

    CAN-FD-TO-RS232/RS485, Transparent conversion

    Transparent Conversion with ID

    Transfer the ID information in serial frames to CAN FD frames

    CAN-FD-TO-RS232/RS485, Transparent Conversion with ID

    Standard Conversion

    Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format

    CAN-FD-TO-RS232/RS485, Standard Conversion

    Modbus Protocol Conversion

    Realize Modbus data transmission over CAN bus through packet segmentation and reassembly

    CAN-FD-TO-RS232/RS485, Modbus Protocol Conversion

    Custom protocol conversion

    Users can customize frame headers and trailers to enable bidirectional data conversion

    CAN-FD-TO-RS232/RS485, Custom protocol conversion

    3 Frame Filtering Methods, 32 Sets of Configurable Filters

    Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference

    CAN-FD-TO-RS232/RS485, 3 Frame Filtering Methods, 32 Sets of Configurable Filters

    Configuration parameters via host computer

    CAN-FD-TO-RS232/RS485, Configuration parameters via AT commands/host computer


    Application Scenarios
    CAN-FD-TO-RS232/RS485, BMS Battery Monitoring

    BMS Battery Monitoring


    CAN-FD-TO-RS232/RS485, Industrial Automation

    Industrial Automation

    CAN-FD-TO-RS232/RS485, EV charging

    EV Charging


    CAN-FD-TO-RS232/RS485, Traffic Monitoring

    Traffic Monitoring

    Interface introduction

    CAN-FD-TO-RS232/RS485, Interface introduction
    Outline dimensions
    CAN-FD-TO-RS232/RS485, Outline dimensions

    WiKi



    Read more
