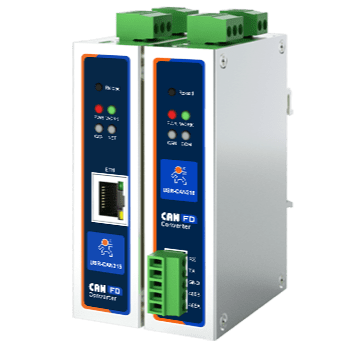

CANFD Protocol Converter DIN-rail CANFD to Ethernet/RS485/RS232

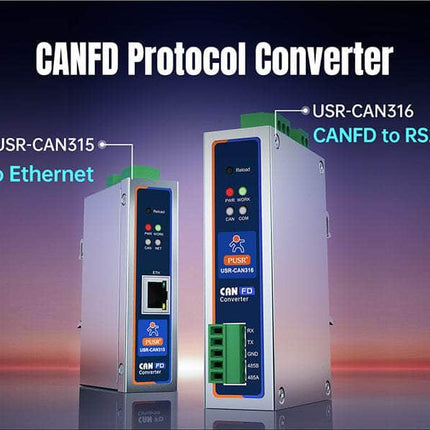

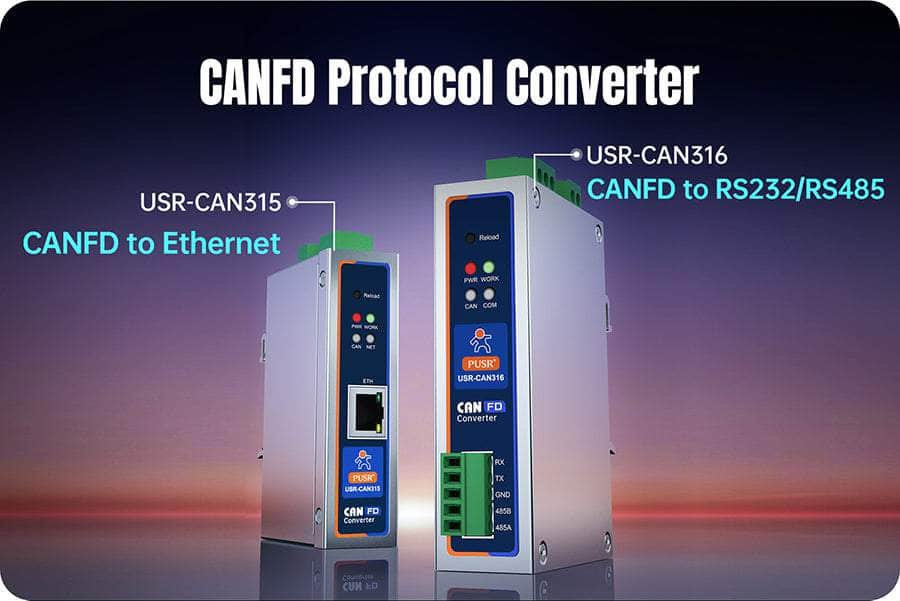

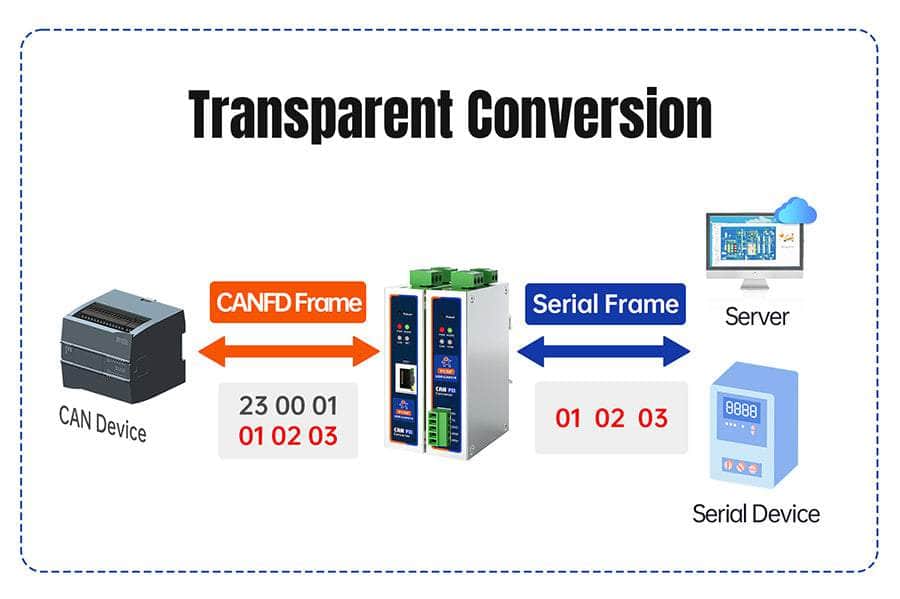

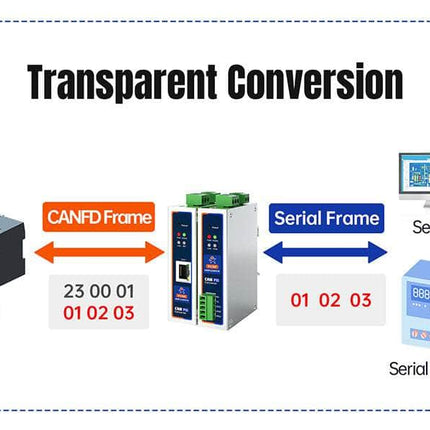

USR-CAN315/316 is a DIN-rail CANFD to Ethernet/RS485/RS232 converter featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus conversion, and custom conversion.

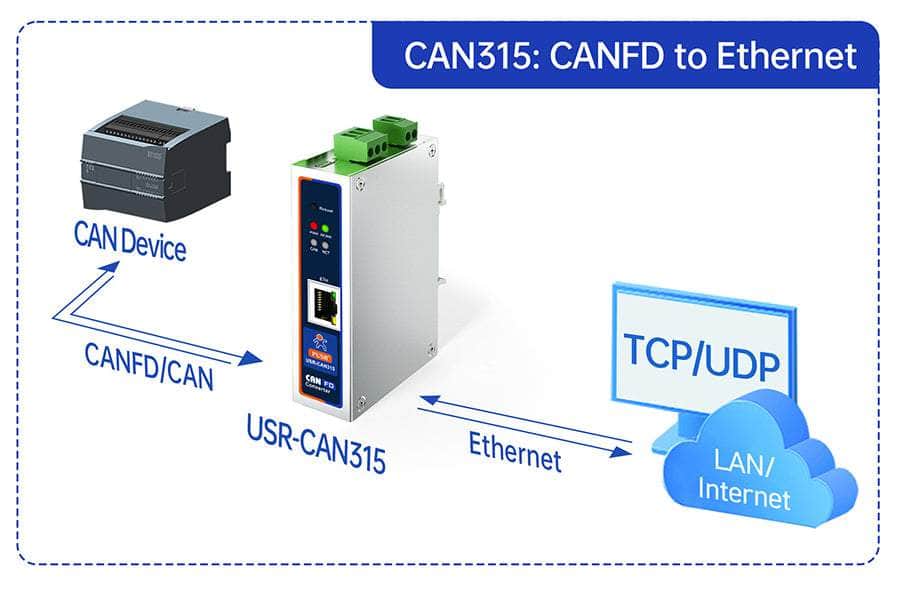

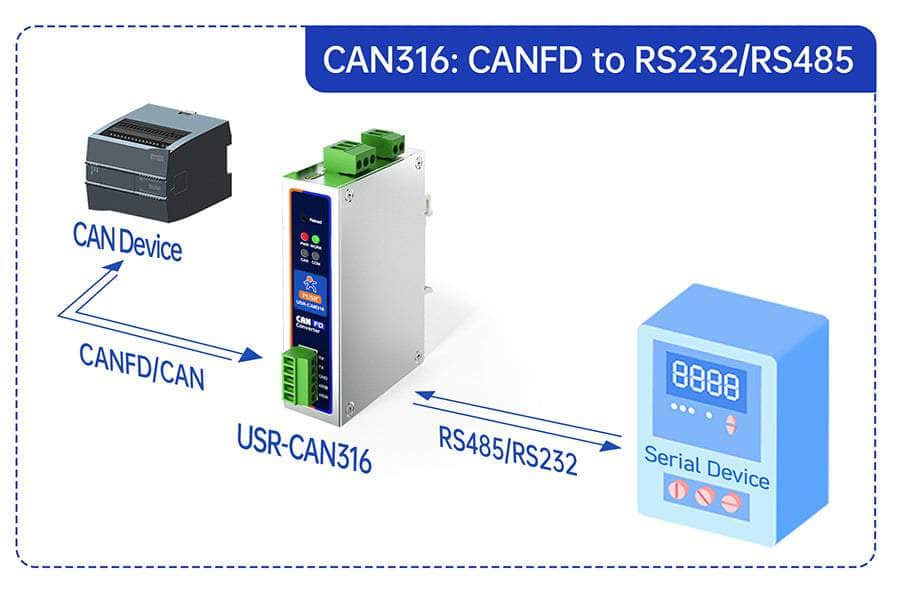

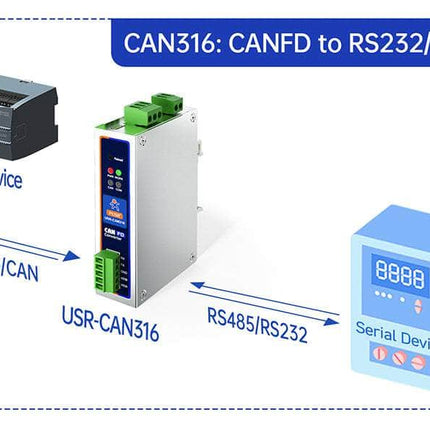

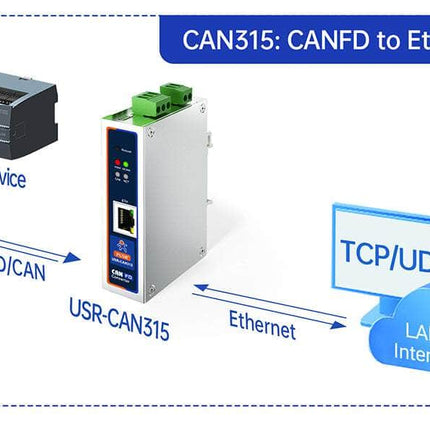

The CAN316 enables interconnection between CAN devices and serial devices, while the CAN315 connects CAN devices to network devices.
Key Features
Serial port version & Network port version
CANFD Protocol: Compatible with CAN2.0 A/B
5 Operating mode: Supports Modbus protocol
32 sets of filters: software configurable
Highly reliable EMC protection level 3
Wide operating temperature： -40℃~+85℃
DIN rail mounting
>Ultra-wide baud rate： CANFD can reach up to 5Mbps
Supports configuration via host computer and AT commands, as well as serial port firmware upgrade.
RS485/RS232 to CANFD, Bidirectional Data Communication:
With this CANFD converter, users can achieve data communication and conversion between RS485/RS-232 and CANFD devices.
CANFD to Modbus RTU/TCP Gateway
Supports 64 groups of receiving messages and 64 groups of sending messages.The device can act as both a Modbus master and a slave.

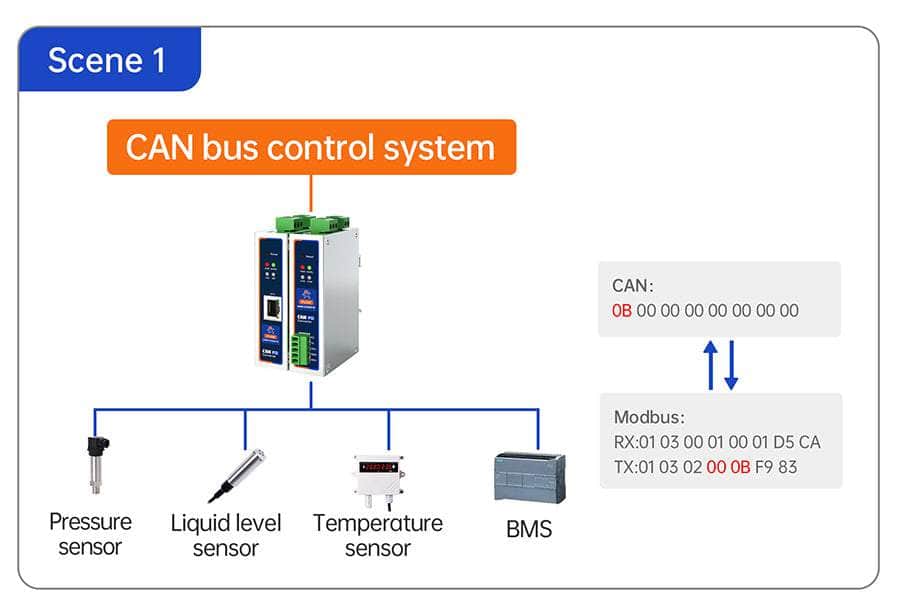

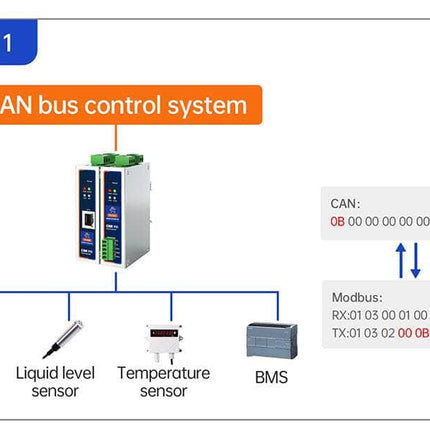

Scene 1：Sensors and other Modbus communication devices are connected to the CAN bus control system.
Scene 2：CAN devices support access to Modbus master control systems.
Multiple Hardware Protection, Reliable and Stable
EMC protection: level 3
Wide operating temperature: -40℃~+85℃
Dual watchdog: hardware & software watchdog, ensure stable operating
Wide power input: DC 9-36V, supports power input anti-reverse

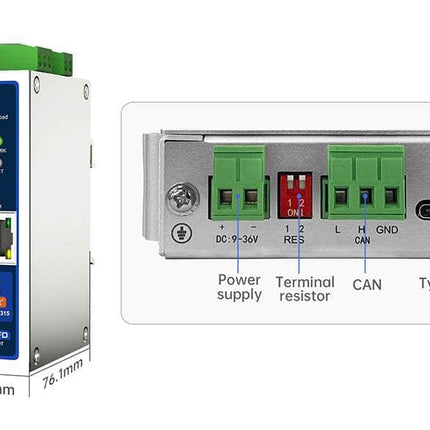

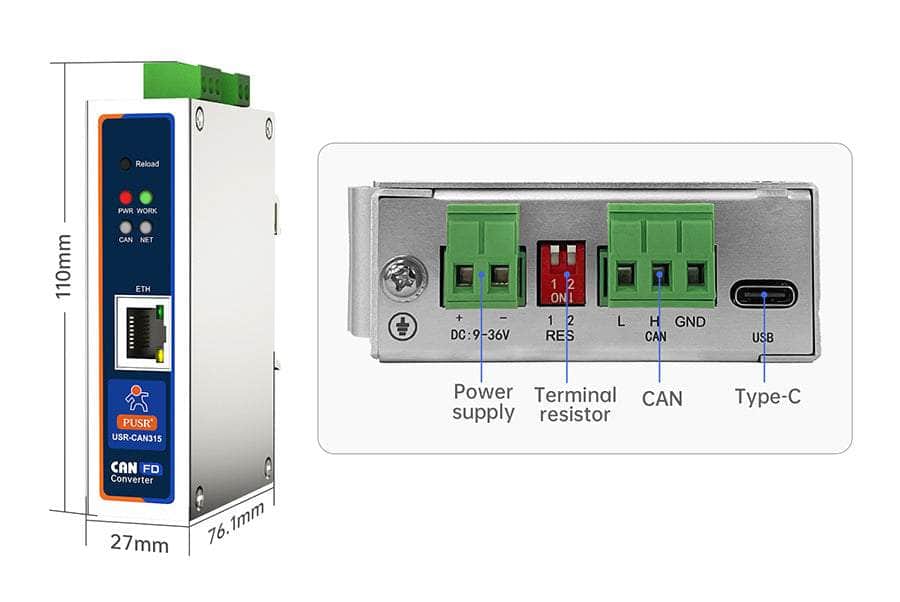

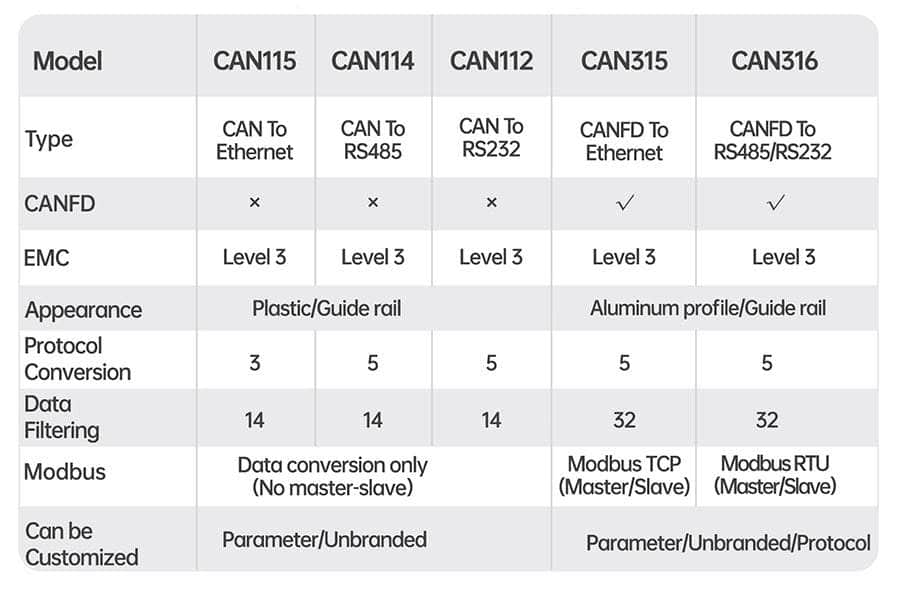

Specification:
|
Classify
|
Parameter
|
Describe
|
|
Parameter
|
Working voltage
|
DC9～36 V, recommended use 12V 1A
|
|
Size
|
110*27*76.1mm
|
|
Way to install
|
Guide installation
|
|
Reload
|
Long-press to restore factory Settings
|
|
Indicator light
|
CAN315：POWER、WORK、NET、CAN
CAN316：POWER、WORK、COM、CAN
|
|
Interface Parameters
|
Can port specification
|
1* CAN port, supports CANFD, compatible with CAN 2.0A/2.0B
|
|
Can port baud rate
|
Arbitration domain baud rate: 5K~1Mbps;
data domain baud rate 100K~5Mbps
|
|
Terminal resistor
|
Built-in 2* CAN bus 120Ω terminal resistor.
|
|
Networkport specifications
|
CAN315:RJ45、10/100Mbps、Cross-connection adaptive
|
|
Serial port specification
|
CAN316:RS485/RS232
|
|
Work Environment
|
Working temperature
|
-40~85℃
|
|
Storage temperature
|
-40~105℃
|
|
Working humidity
|
5%～95% RH(No condensation)
|
|
Storage humidity
|
5%～95% RH(No condensation)
|
|
Software Function
|
Networking protocol
|
TCP server、TCP client、UDP server、UDP client（Only CAN315）
|
|
Modbus gateway
|
CAN315：CAN(FD) To Modbus TCP（Master/Slave）
CAN316：CAN(FD) To Modbus RTU（Master/Slave）
|
|
Send the message
|
Transmission Messages: 64
|
|
Receive messages
|
Supports 64 receiving messages
|
|
Protocol conversion
|
5 Protocol Conversion Modes
|
|
Can Id
|
Support standard frame and extended frame
|
|
Frame id filtering
|
Supports only standard frames, only remote frames, and custom input frame ID (up to 32 groups)
|
|
Pack frame time
|
Supports customizing the number of frames and the time of frame packing
|
|
Change direction
|
Supports bidirectional conversion；
only network port to CAN；
only CAN to network port；
|
|
Firmware upgrade
|
Support the upper computer for firmware upgrade
|
|
Parameter configuration
|
AT instruction and upper computer software configuration
|
|
Other features
|
Support heartbeat packets; register packets; normal, loopback, and only listen modes (only CAN315)
|
|
Protection Parameters
|
Esd Protection
|
Air Discharge: 8 kV；
Contact Discharge: 6 kV
|
|
Eft/Burst
|
CAN315：Power Circuit: 2 kV；Network Port & CAN Port Circuit: 1 kV
CAN316：Power Circuit: 2 kV, RS485/RS232 Circuit: 1 kV, CAN Circuit: 1 kV
|
|
Surge Immunity Test
|
CAN315：Power circuit: 1kV differential mode, 2kV common mode;
CAN port circuit: 2kV common mode；Network port circuit: 1kV；
CAN316：Power circuit: 1kV differential mode, 2kV common mode；
CAN circuit: 2kV common mode
|
