Charger click - MikroElektronika MCP73831 Small Charge Management

Description

Charger click - MikroElektronika MCP73831 Small Charge Management

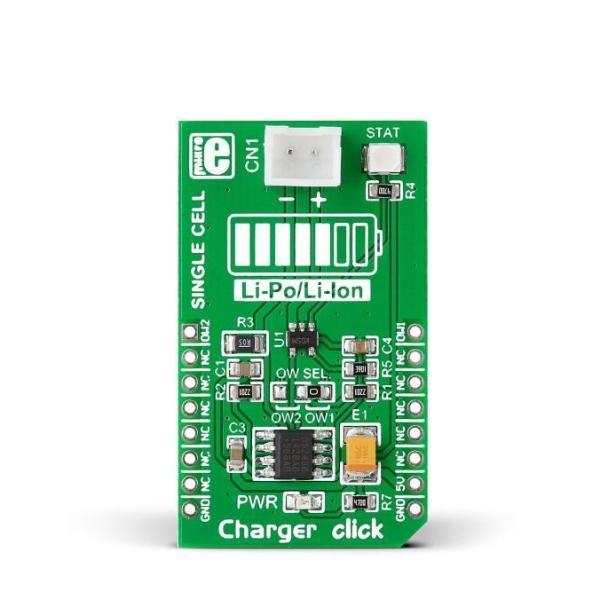

Charger click carries both a battery charger controller and a battery charge monitor, along with a battery connector. The smaller chip is MCP73831, a miniature single-cell Li-Ion and Li-Polymer charge management controller with a programmable charge current from 15 to 250 mA. The larger IC is DS2438, a smart battery monitor which integrates a temperature sensor, a timer, an ADC to measure the battery voltage and current, and a current accumulator that monitors the total amount of current going into and out of the battery. Charger click communicates with the target MCU through a 1-Wire interface. Charger click is designed to use a 5V power supply.

Downloads

 Charger click user manual
 Charger click Example



Type Battery charger,Buck
Applications Battery charging interface with precise monitoring for Ly-Ion and Ly-Polymer batteries, applicable for all sorts of devices, with precise monitoring.
On-board modules MCP73831 single-cell Li-Ion and Ly-Polymer battery charger, DS2438 Smart charge monitor
Key Features Charger click communicates with the target MCU through a 1-Wire interface
Key Benefits Integrated temp. Sensor, timer, ADC, EEPROM. Programmable charge current from 15 to 500 mA
Interface GPIO
Input Voltage 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)



Read more

Charger click - MikroElektronika MCP73831 Small Charge Management

Product form
Free pickup in our shop(s)

SKU: MIKROE-2033

$35.00 $25.00 Excl. GST

$35.00 $25.00
Product available in stock, Ships same business day.

    • We ship from our stock in AU (Perth), pickup by prior order/booking
    • We offer Price Match & Quantity Discounts for Large Orders
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
    • We ship the same day via express post for all items in stock

    Description

    Charger click - MikroElektronika MCP73831 Small Charge Management

    Charger click carries both a battery charger controller and a battery charge monitor, along with a battery connector. The smaller chip is MCP73831, a miniature single-cell Li-Ion and Li-Polymer charge management controller with a programmable charge current from 15 to 250 mA. The larger IC is DS2438, a smart battery monitor which integrates a temperature sensor, a timer, an ADC to measure the battery voltage and current, and a current accumulator that monitors the total amount of current going into and out of the battery. Charger click communicates with the target MCU through a 1-Wire interface. Charger click is designed to use a 5V power supply.

    Downloads

     Charger click user manual
     Charger click Example



    Type Battery charger,Buck
    Applications Battery charging interface with precise monitoring for Ly-Ion and Ly-Polymer batteries, applicable for all sorts of devices, with precise monitoring.
    On-board modules MCP73831 single-cell Li-Ion and Ly-Polymer battery charger, DS2438 Smart charge monitor
    Key Features Charger click communicates with the target MCU through a 1-Wire interface
    Key Benefits Integrated temp. Sensor, timer, ADC, EEPROM. Programmable charge current from 15 to 500 mA
    Interface GPIO
    Input Voltage 5V
    Compatibility mikroBUS
    Click board size M (42.9 x 25.4 mm)



    Read more
