Chroma Servo Board V3 For Raspberry Pi

Description

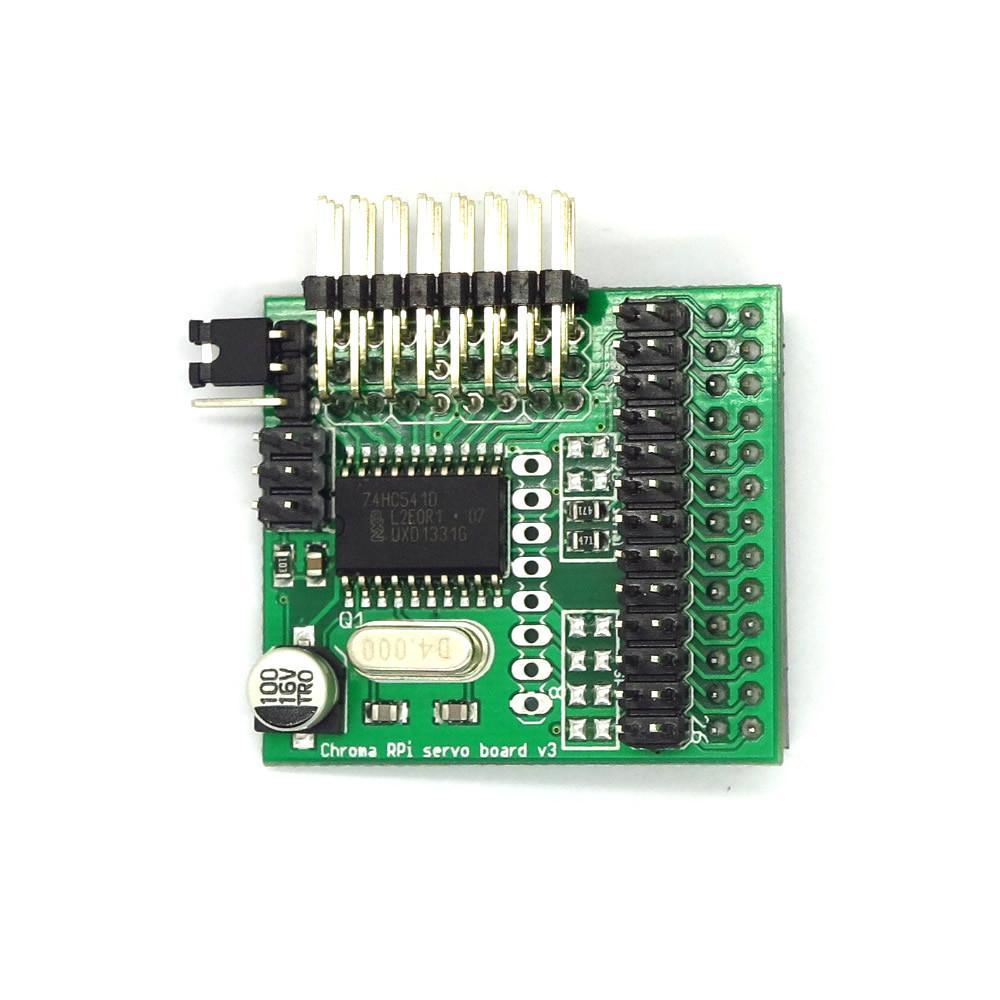

Chroma Servo Board V3 For Raspberry Pi

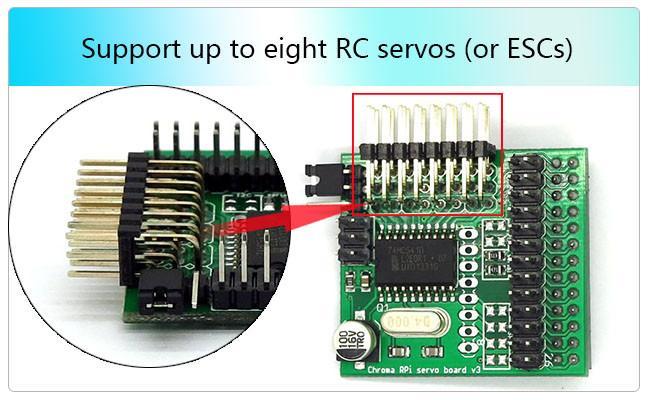

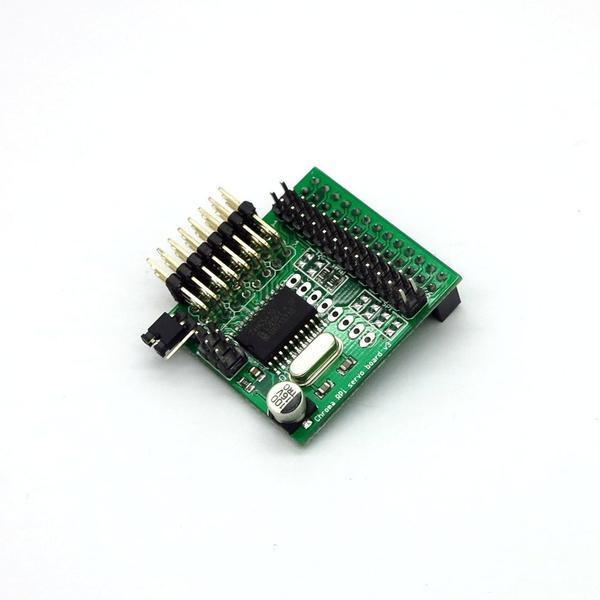

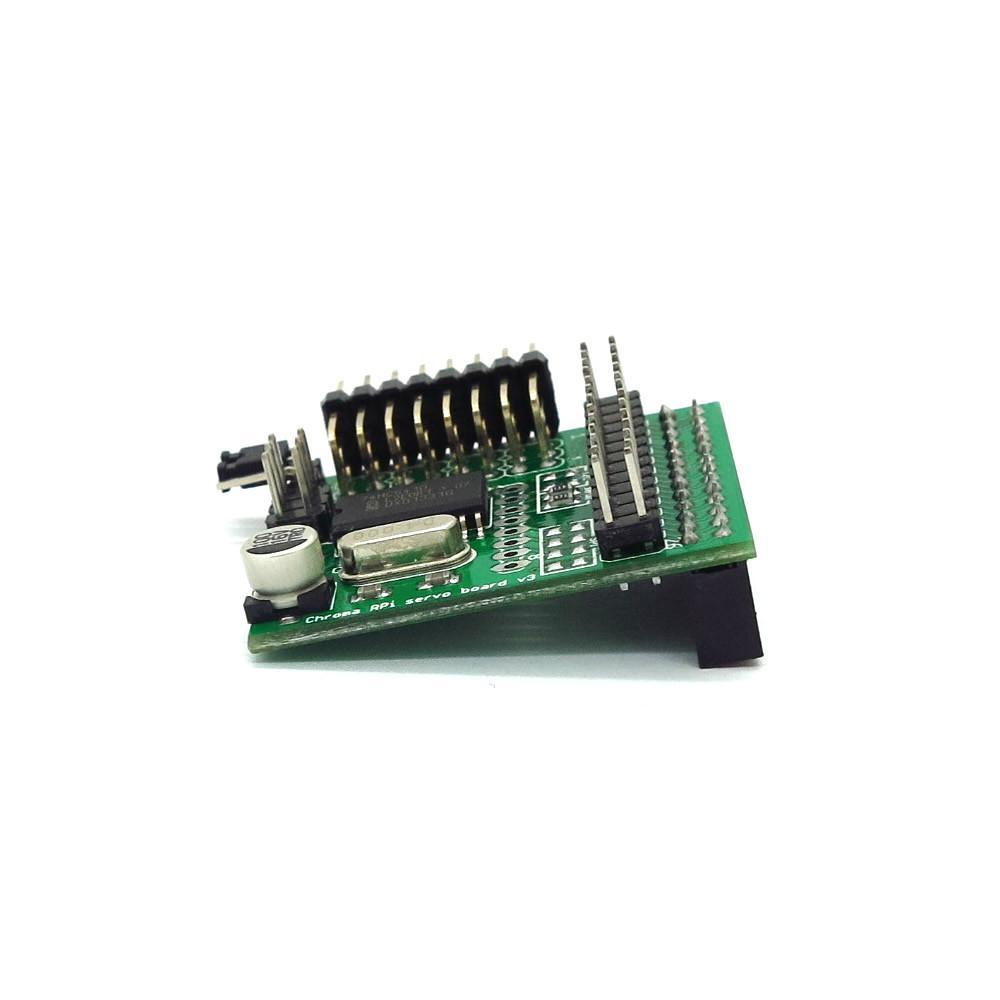

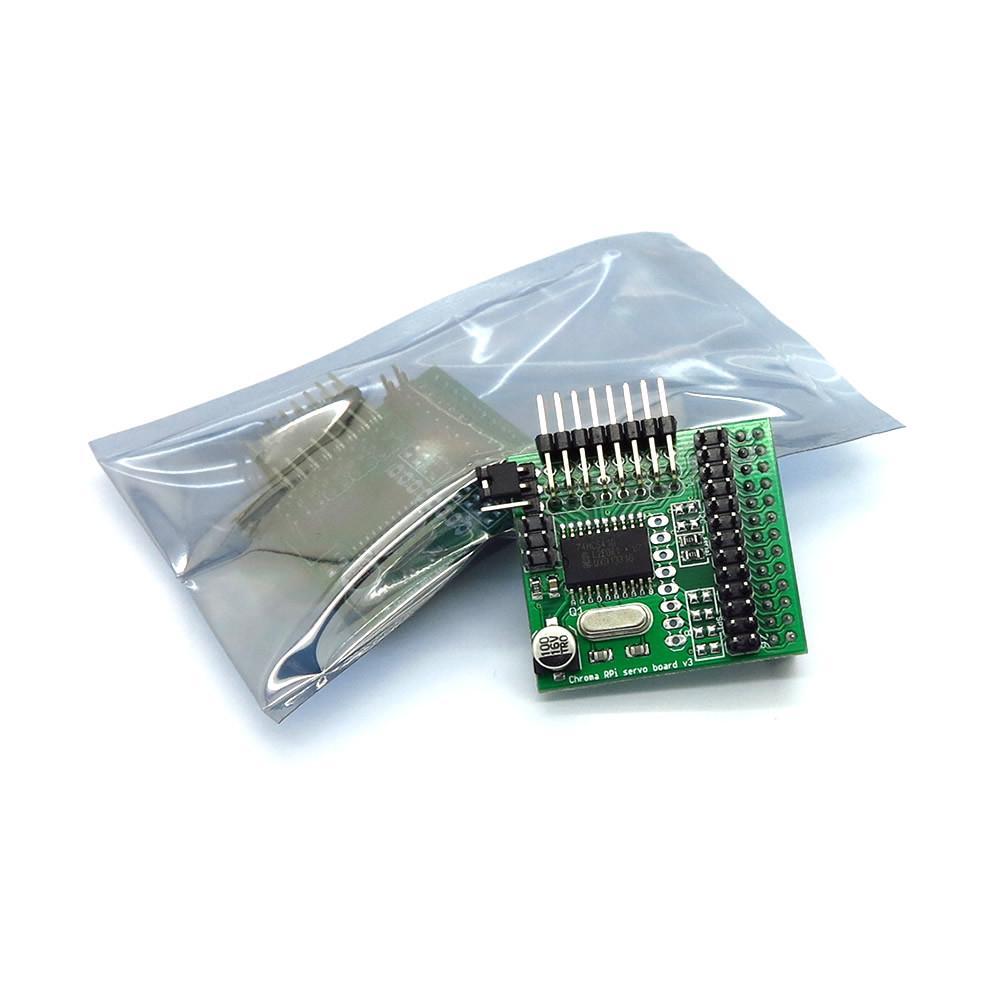

Chroma Servo Board for Raspberry Pi is a small board that connects to a Raspberry Pi and allows you to control up to eight RC servos (or ESCs) via the serial port in the GPIO port of the Raspberry Pi. The commands for the serial version are simple ASCII. The 2x13 pin header on top is a pass through if you want to connect other cards using the GPIO-port. Of course, this SW will also be open source. The serial ASCII protocol will be the same as for the HW v2 board and SW. The output is buffered and made 5V by a buffer IC.

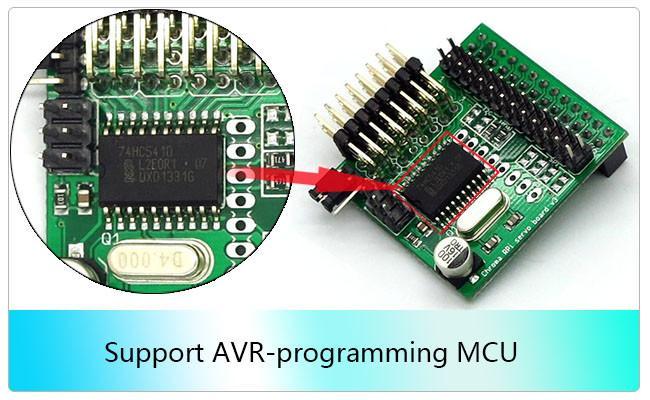

If you are into AVR-programming you can reprogram the little MCU on the RPi Servo board and make the card do whatever you like. Maybe read 6 temperature sensors and send the values as ASCII on the serial port?

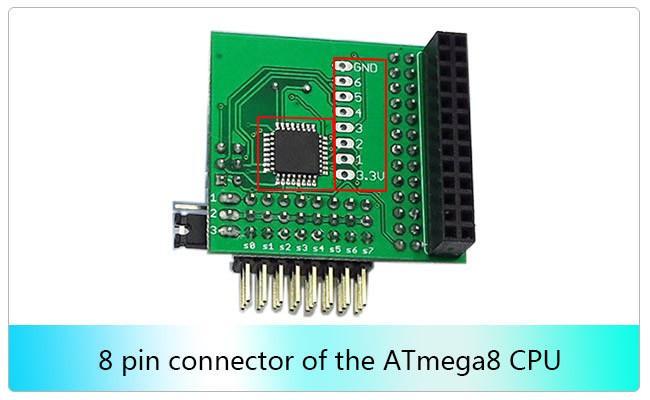

The card also has a 8 pin connector (unmounted) that exposes 6 GPIO-pins of the ATmega8 CPU, +3.3V and GND. With firmware version 0.2 there is experimental support to use them as digital output controlled via a serial command. If you want to make your own firmware the pins is also the ATmega8s I2C lines (2 pins) and SPI (4 pins).

Specification

Size: 39.6 mm x 35.7 mm x 18.5 mm

Read more

Chroma Servo Board V3 For Raspberry Pi

Product form
Free pickup in our shop(s)

SKU: IM140414001

$30.00 $10.00 Excl. GST

$30.00 $10.00
Product available in stock, Ships same business day.

    • Local AU Stock, Fast Same-Day Dispatch or Pickup
    • Price Match & Quantity Discounts Available (Request Quote)
    • Purchase Orders & Net 30-Day Terms for Approved Accounts
    • Free Local Technical Support Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government

    Description

    Chroma Servo Board V3 For Raspberry Pi

    Chroma Servo Board for Raspberry Pi is a small board that connects to a Raspberry Pi and allows you to control up to eight RC servos (or ESCs) via the serial port in the GPIO port of the Raspberry Pi. The commands for the serial version are simple ASCII. The 2x13 pin header on top is a pass through if you want to connect other cards using the GPIO-port. Of course, this SW will also be open source. The serial ASCII protocol will be the same as for the HW v2 board and SW. The output is buffered and made 5V by a buffer IC.

    If you are into AVR-programming you can reprogram the little MCU on the RPi Servo board and make the card do whatever you like. Maybe read 6 temperature sensors and send the values as ASCII on the serial port?

    The card also has a 8 pin connector (unmounted) that exposes 6 GPIO-pins of the ATmega8 CPU, +3.3V and GND. With firmware version 0.2 there is experimental support to use them as digital output controlled via a serial command. If you want to make your own firmware the pins is also the ATmega8s I2C lines (2 pins) and SPI (4 pins).

    Specification

    Size: 39.6 mm x 35.7 mm x 18.5 mm
