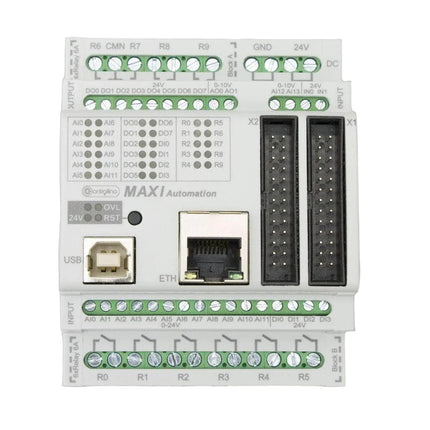

CONTROLLINO MAXI Automation
CONTROLLINO MAXI Automation
Presenting the CONTROLLINO MAXI Automation, a specialized variant of the CONTROLLINO MAXI, purpose-built for automation experts requiring 0-10V I/Os. This model upholds the ideal balance of compact design and significant I/O capacity that the MAXI is known for. The core strength of the MAXI Automation is its versatility. Please note, this model operates exclusively with a 24V DC power supply.
- Powered by 24Vdc
- Ethernet (RJ45, 10/100Mbps)
- Inputs (20 IN):
- 12x Analog (0-10Vdc) / digital (24Vdc)
- 4x Digital Input
- 2x Fixed Digital Input / interrupt.
- 2x Fixed Analog Input (0-10Vdc / 0-20mA)
- Outputs (22 Out):
- 10x Relay Outputs
- 8x Digital Outputs
- 2x Fixed Analog Outputs (0-10Vdc / 0-20mA)
Documents:
Specifications:
| Main Technical Specs. | |
|---|---|
| # CPU Type # | Controllino |
| # Device # | PLC |
| Inputs | |
| # Inputs # | 11-20 |
| Digital Inputs | 1-10 |
| Interrupt Input | 2 |
| Analog Inputs (Included as a Digitlal Input) | 12 |
| Outputs | |
| # Relay # | 1-10 |
| # Outputs # | 21-30 |
| Digital Outputs *See technical details | 8 |
| Relay Outputs *See technical details | 10 |
| Communications | |
| Ethernet | Yes |
| RS485 | Yes |
| I2C | Yes |
| SPI | Yes |
