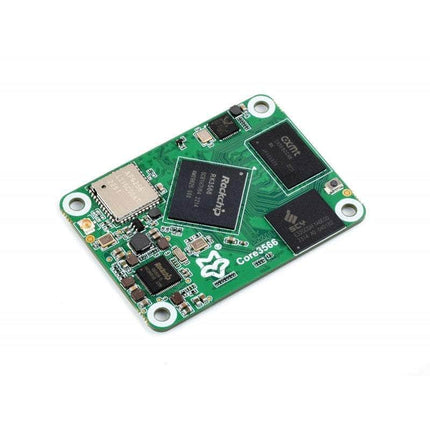

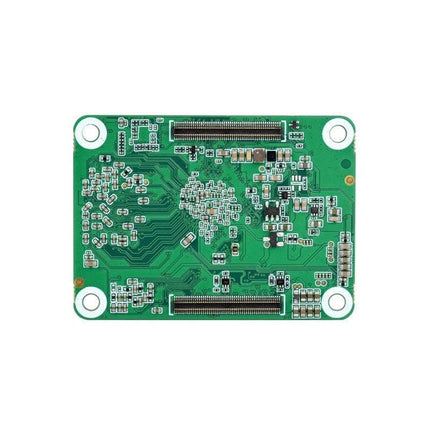

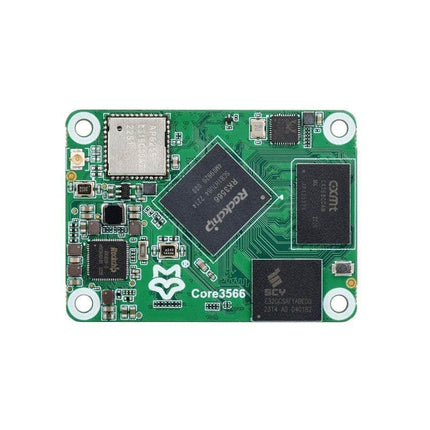

Core3566 Rockchip Quad-core 4GB RAM 32GB eMMC Compatible With Raspberry Pi CM4

Description

Core3566 Rockchip Quad-core 4GB RAM 32GB eMMC Wireless Compatible With Raspberry Pi CM4




Specifications:

Processor Quad-core Arm Cortex-A55 @1.8GHz
Memory 4GB LPDDR4 SDRAM memory
Storage 32GB eMMC Flash
NPU 0.8 TOPS @INT8
GPU Arm Mali-G52 2EE
Connectivity Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna
Supports IEEE 802.3 Gigabit Ethernet.
USB 2.0 × 1
PCIe Gen 2 x 1
28 GPIO signals
SD card interface (booted from eMMC first)
Video HDMI interface (4Kp60 supported)
2-lane MIPI DSI display interface × 2
2-lane MIPI CSI camera interface × 2
Multimedia 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
Operating Voltage 5V DC
Operating Temp. -10°C ~ 80°C ambient
Dimensions 55 × 40 × 4.7mm

Highly Integrated, Powerful Performance

Integrated With CPU, GPU, VPU, NPU, Etc.

  • RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
  • Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
  • The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
  • The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
  • The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow

High Speed WiFi And Bluetooth

Dual-Band WiFi And Bluetooth AP6256 Module, Surf The Web Anywhere

* Note: WiFi function is optional, and an additional antenna is required for WiFi module since it has no onboard antenna.

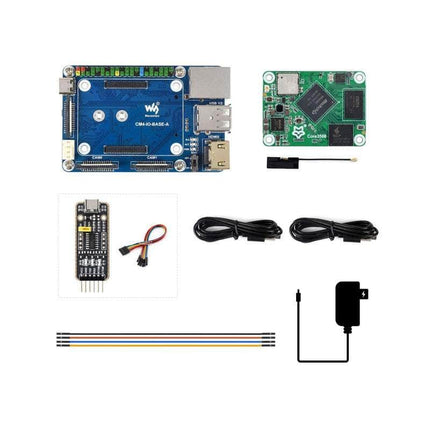

Compatible With CM4 Base Board

CM4-IO-BASE-B



Compute Module 4 IO Board



Compute Module 4 PoE Board





Product Details:


Onboard Resources

Read more

Core3566 Rockchip Quad-core 4GB RAM 32GB eMMC Compatible With Raspberry Pi CM4

Product form
Free pickup in our shop(s)

SKU: Core3566104032

$119.00 $99.00 Excl. GST

$119.00 $99.00
Product available in stock, Ships same business day.

    • Local AU Stock, Fast Same-Day Dispatch or Pickup
    • Price Match & Quantity Discounts Available (Request Quote)
    • Purchase Orders & Net 30-Day Terms for Approved Accounts
    • Free Local Technical Support Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government

    Description

    Core3566 Rockchip Quad-core 4GB RAM 32GB eMMC Wireless Compatible With Raspberry Pi CM4




    Specifications:

    Processor Quad-core Arm Cortex-A55 @1.8GHz
    Memory 4GB LPDDR4 SDRAM memory
    Storage 32GB eMMC Flash
    NPU 0.8 TOPS @INT8
    GPU Arm Mali-G52 2EE
    Connectivity Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna
    Supports IEEE 802.3 Gigabit Ethernet.
    USB 2.0 × 1
    PCIe Gen 2 x 1
    28 GPIO signals
    SD card interface (booted from eMMC first)
    Video HDMI interface (4Kp60 supported)
    2-lane MIPI DSI display interface × 2
    2-lane MIPI CSI camera interface × 2
    Multimedia 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
    Operating Voltage 5V DC
    Operating Temp. -10°C ~ 80°C ambient
    Dimensions 55 × 40 × 4.7mm

    Highly Integrated, Powerful Performance

    Integrated With CPU, GPU, VPU, NPU, Etc.

    • RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
    • Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
    • The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
    • The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
    • The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow

    High Speed WiFi And Bluetooth

    Dual-Band WiFi And Bluetooth AP6256 Module, Surf The Web Anywhere

    * Note: WiFi function is optional, and an additional antenna is required for WiFi module since it has no onboard antenna.

    Compatible With CM4 Base Board

    CM4-IO-BASE-B



    Compute Module 4 IO Board



    Compute Module 4 PoE Board





    Product Details:


    Onboard Resources

    Read more
