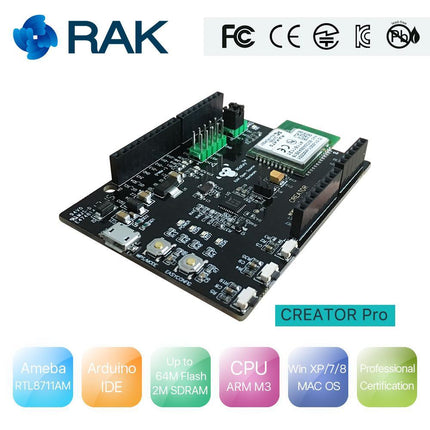

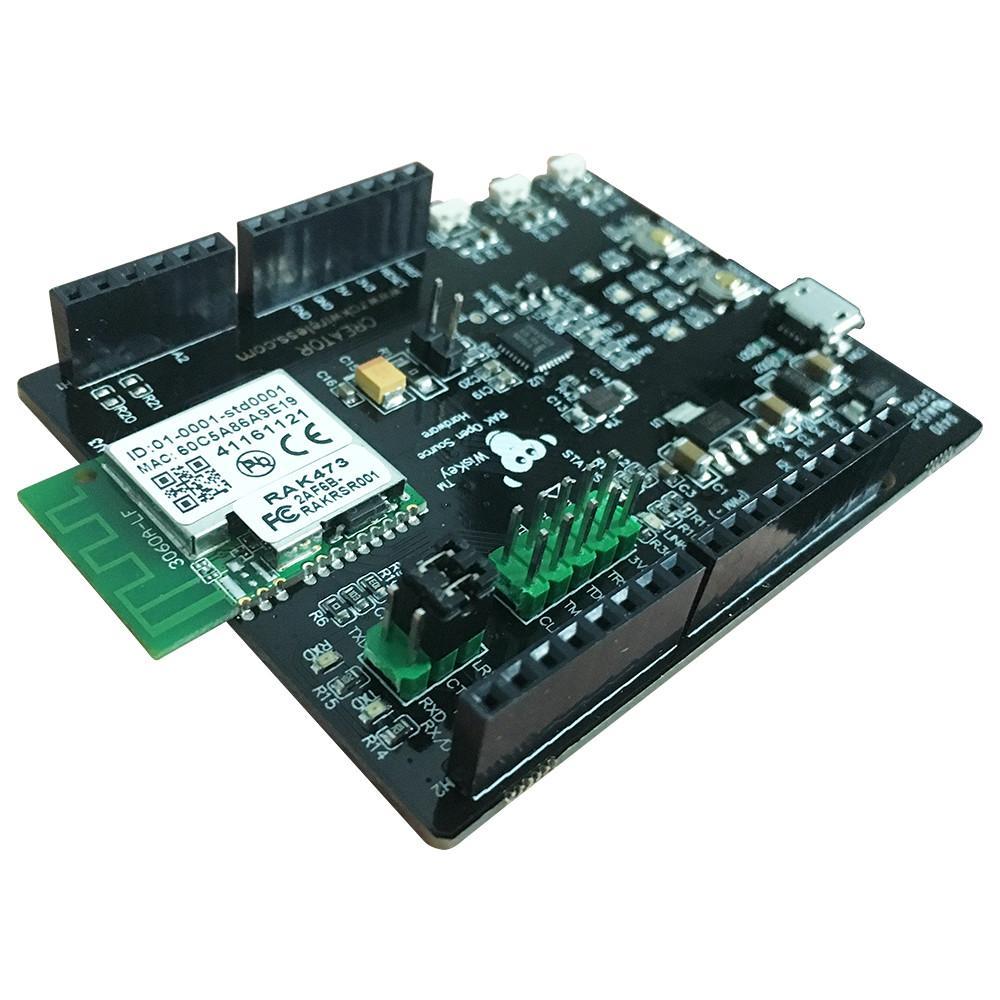

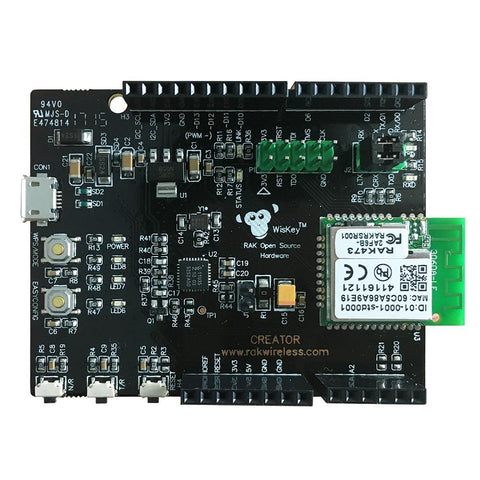

Creator Pro RTL8711AM (WIScreator-473MA) Realtek Ameba WiFi Module
Creator Pro belongs to RAK Wireless Wiskey product family.
Creator Pro is a convenient development kit for makers. It includes RTL8711AM chip and integrated programming tools. Creator Pro is Arduino compatible. Integrated high-performance CPU, Wi-Fi, Ethernet, and a wealth of peripherals, Standard Arduino Library, as an excellent single-chip networking solution, you can easily implement your IoT prototype.
Characteristic
- To achieve IoT application development, with a variety of peripheral interface WiFi, GPIO, I2C, UART, PWM, ADC;
- Compatible with Arduino, powered by Micro USB; Support Win XP/7/8 32 & 64 bit, MAC OS operating system;
- Support Win XP/7/8 32 & 64 bit, MAC OS operating system;
- Using RTL8711AM chip, integrated internal memory and flash memory, 1MB ROM,2MB SDRAM and 512KB SRAM;
- Supports NFC tags with reading and write functions
Specifications
| Parameters |
Description |
| CPU |
32-bit ARM Cortex M3, up to 166MHz |
| Memory |
1MB ROM, 2MB SDRAM, and 512KB SRAM |
| Key Features |
Integrated with 802.11 b/g/n 1x1 Wi-Fi |
| NFC Tag with Reading/Write Function |
| Hardware SSL engine |
| Maximum 19 GPIOs |
| 1 SPI Interfaces and support master and slave mode |
| 2 UART Interfaces including 1 HS-UART and one log UART |
| 3 I2C Interfaces and support both master and slave mode |
| 1 I2S/PCM Interfaces and support both master and slave mode |
| 4 PWM interfaces |
| 1 ADC interfaces |
| 1 DAC interfaces |
| Power supply |
3.3V (60-80ma) |
Applications
- Smart Car
- Using the CREATOR Pro development board, you can directly control the I / O port drive four-wheel drive car, combined with CREATOR Pro WIFI function, to achieve wireless remote control car
- Sensor data collection
- CREATOR pro based on the external interface, you can collect a variety of sensor data, and then through the connection router, spread to the remote server
- NFC information read
- In the CREATOR Pro NFC interface connected to the NFC antenna, you can CREATOR pro as NFC tag storage information
- Real-time power detection
- CREATOR Pro development board supports all the way ADC interface, can be used to detect real-time power and then transmitted through the WIFI, the battery information will be uploaded to the place you want to upload.
