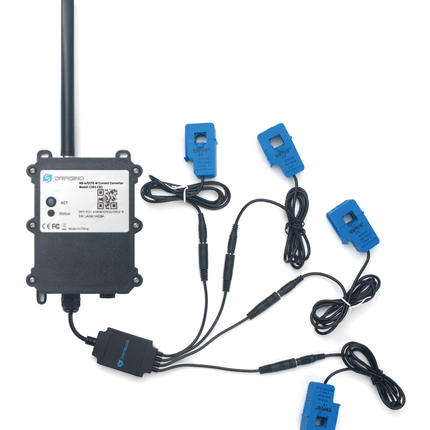

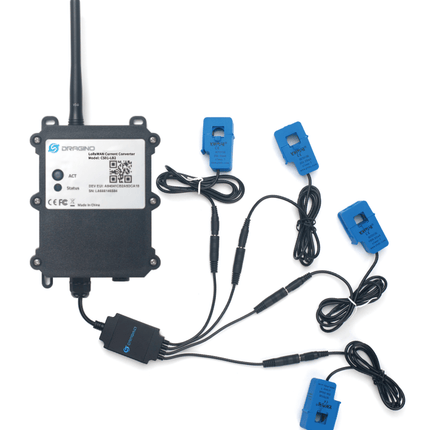

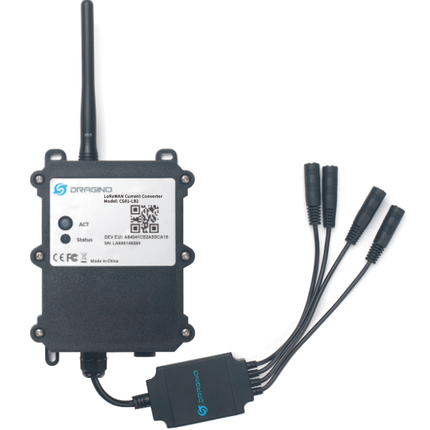

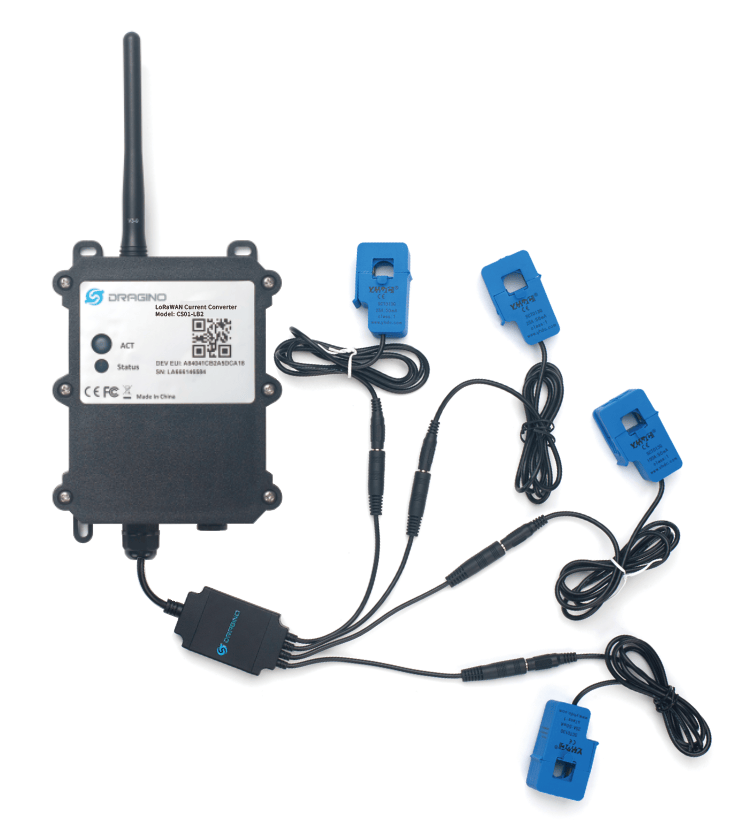

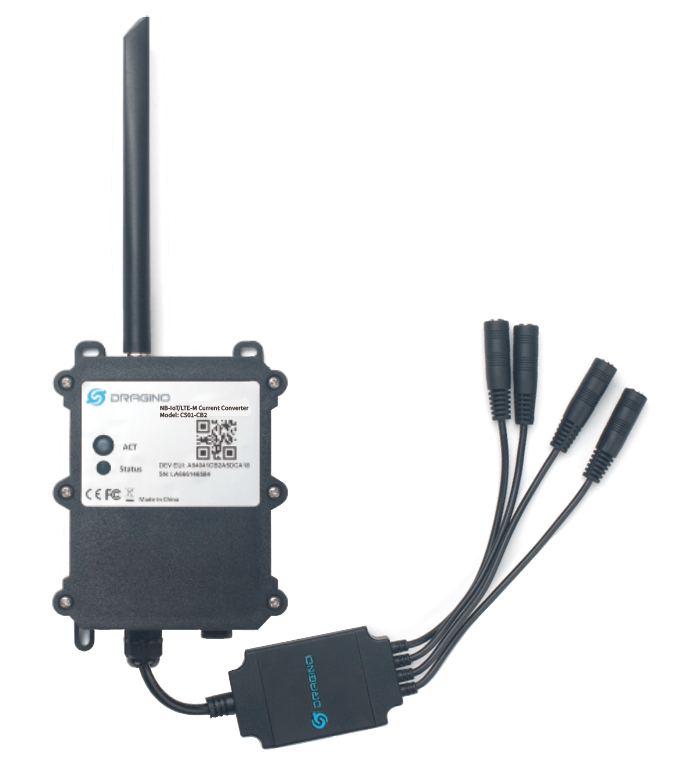

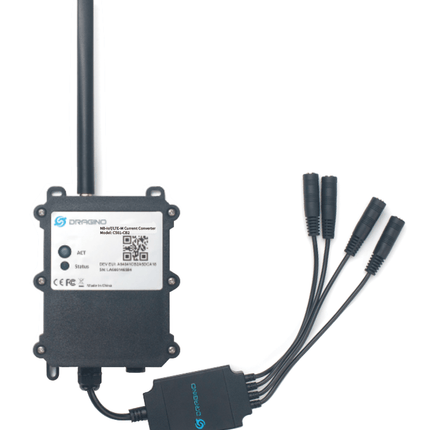

CS01 Wireless 4 Channels Current Sensor Energy Meter LoRaWAN NB-IoT CAT-M

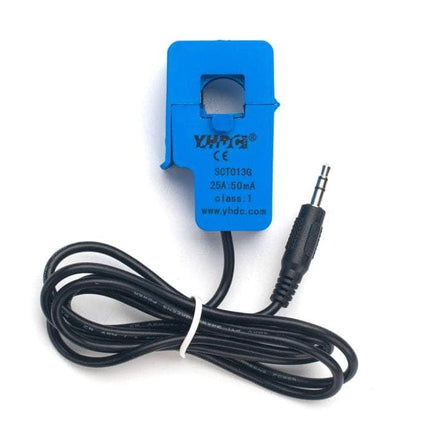

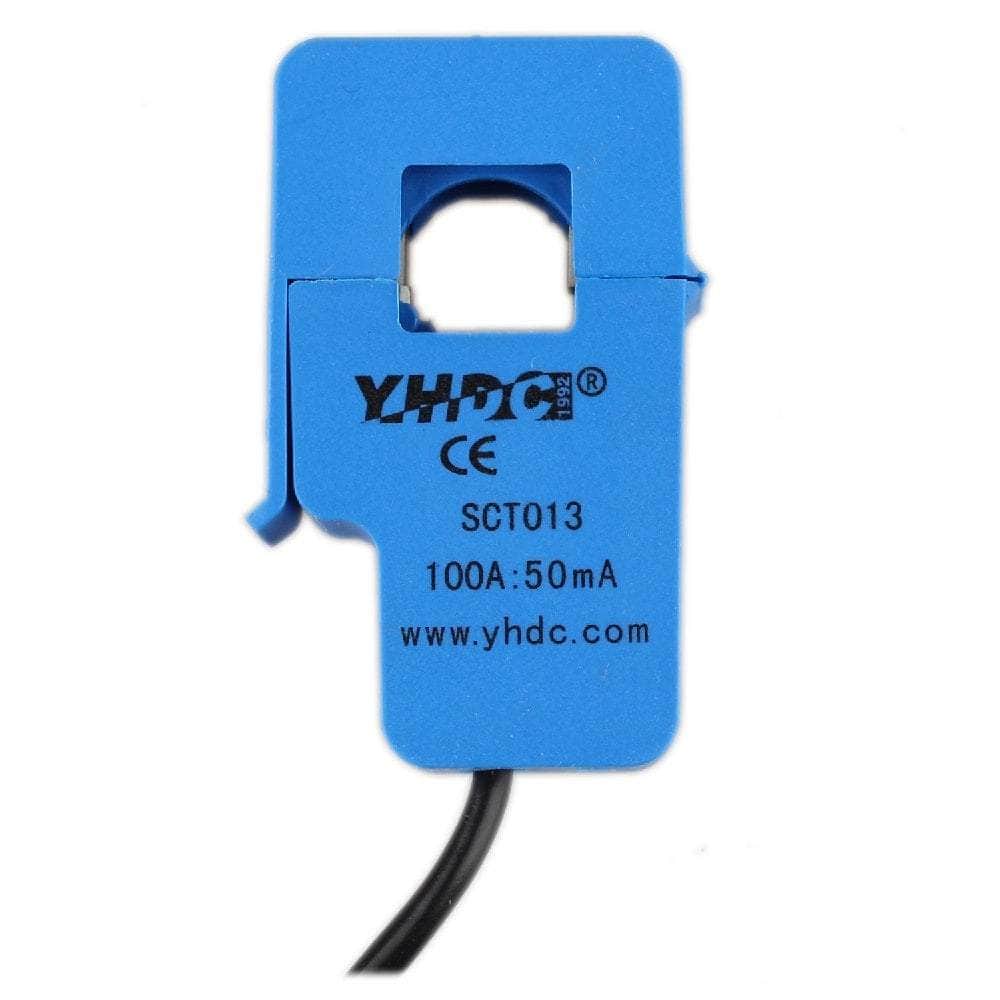

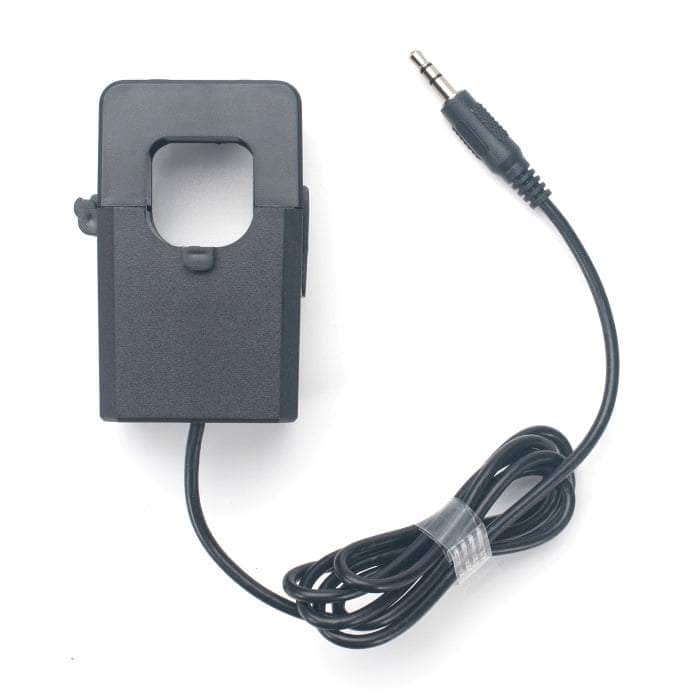

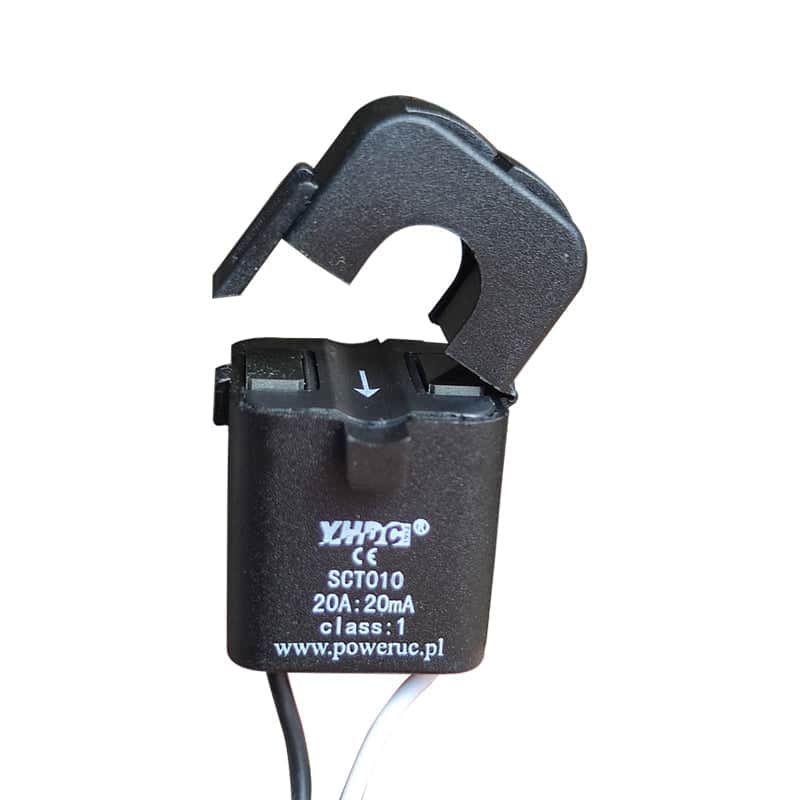

Links to suitable 0-100A Clamp-on CT

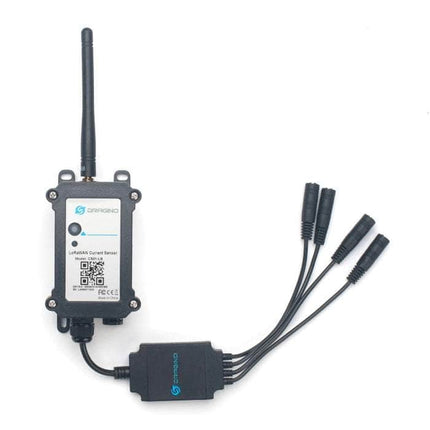

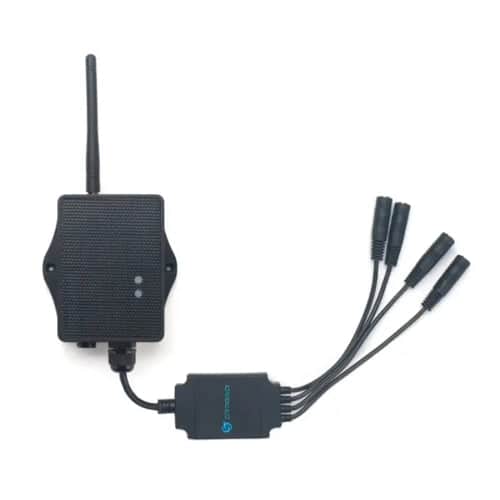

The CS01 is a 4 Channels Current Sensor Energy Meter. It can convert the reading from current sensors and upload to the IoT server via Wireless LoRaWAN, NB-IoT or LTE CAT-M Network.
CS01 can be used to monitor the machine running status and analyze power consumption trends.

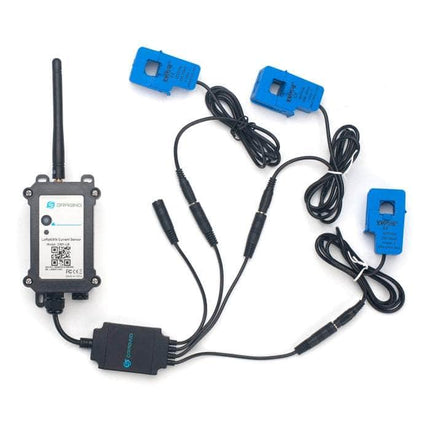

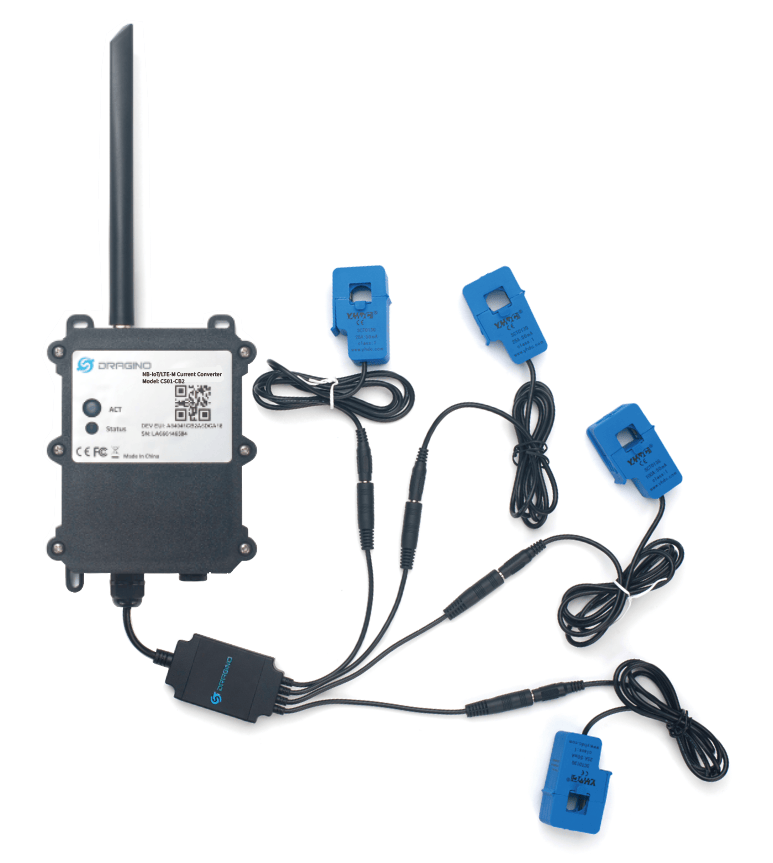

The CS01 supports maximum 4 current sensors. The current sensors are detachable and can be replaced with different scales.
CS01 supports BLE configure and wireless OTA update which makes user easy to use.
CS01 is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.
LoRaWAN Features:
- LoRaWAN 1.0.3 Class A
- Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Supports maximum 4 current sensors
- Support various current sensor Ratio: 50A, 100A etc.
- Monitor the machine running status
- Analyze power consumption trends
- Current Alarm
- Uplink on periodically
- Downlink to change configure
- Support BLE and LoRaWAN remote configure
- Support wireless OTA update firmware
- 8500mAh Li/SOCl2 Battery
NB-IoT Features:
- Bands:B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
- Ultra-low power consumption
- Supports maximum 4 current sensors
- Support various current sensor Ratio: 50A, 100A etc.
- Monitor the machine running status
- Analyze power consumption trends
- Current Alarm
- Uplink on periodically
- Downlink to change configure
- Support Bluetooth v5.1 remote configure and OTA update firmware
- 8500mAh Li/SOCl2 Battery(For CS01-NB)
- Solar panel + 3000mAh Li-on battery(For CS01-NS)
Applications:
Specification:
Common DC Characteristics:
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
-
Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
-
Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
