Cytron Planetary DC Geared Motor IG32E-35K

Description

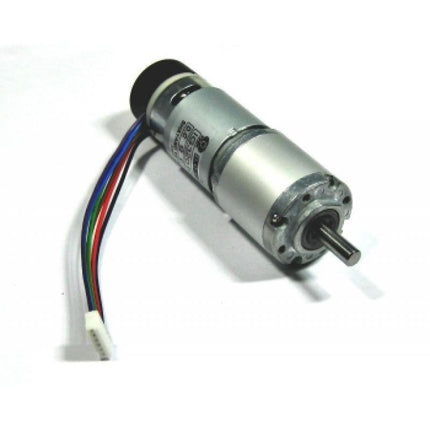

Cytron Planetary DC Geared Motor IG32E-35K

Planetary geared motor is always well known with its less backlash and higher efficiency characteristic to meet the higher requirement. This planetary geared motor is manufactured by an establish Taiwanese motor company to ensure the motor's quality and durability.

It also comes with 7 pulses per rotation, single channel output to provide real-time feedback on the rotating position.

Specification:
  • Voltage: 12VDC
  • Rated Torque: ~2.753 kg.cm (270 mN.m)
  • Rated Speed: 170 RPM
  • Rated Current: 900mA
  • Rated Power: 7W
  • Weight: 242g
  • Shaft: 6.0 mm diameter x 16.3 mm length
  • Motor dimension (w x l x h): 32.0 mm x 32.0 mm x 96.9 mm, detailed drawing
  • Compatible motor driver:
  • Gear ratio: 35:1
  • Encoder Output: 245 pulses per rotation, single channel output
  • Brushed motor type

    Cytron Planetary DC Geared Motor IG32E-35K

    Product form
    Free pickup in our shop(s)

    SKU: CYT-IG32E-35K

    $89.00 $59.00 Excl. GST

    $89.00 $59.00
    Product available in stock, Express post same business day.

      • Local AU Stock, Fast Same-Day Dispatch or Pickup
      • Price Match & Quantity Discounts Available (Request Quote)
      • Purchase Orders & Net 30-Day Terms for Approved Accounts
      • Free Local Technical Support Before & After Purchase
      • Custom Industrial IoT Solutions & Project Assistance
      • Trusted by Australian Industry, Utilities, Agriculture & Government

      Description

      Cytron Planetary DC Geared Motor IG32E-35K

      Planetary geared motor is always well known with its less backlash and higher efficiency characteristic to meet the higher requirement. This planetary geared motor is manufactured by an establish Taiwanese motor company to ensure the motor's quality and durability.

      It also comes with 7 pulses per rotation, single channel output to provide real-time feedback on the rotating position.

      Specification:
      • Voltage: 12VDC
      • Rated Torque: ~2.753 kg.cm (270 mN.m)
      • Rated Speed: 170 RPM
      • Rated Current: 900mA
      • Rated Power: 7W
      • Weight: 242g
      • Shaft: 6.0 mm diameter x 16.3 mm length
      • Motor dimension (w x l x h): 32.0 mm x 32.0 mm x 96.9 mm, detailed drawing
      • Compatible motor driver:
      • Gear ratio: 35:1
      • Encoder Output: 245 pulses per rotation, single channel output
      • Brushed motor type
