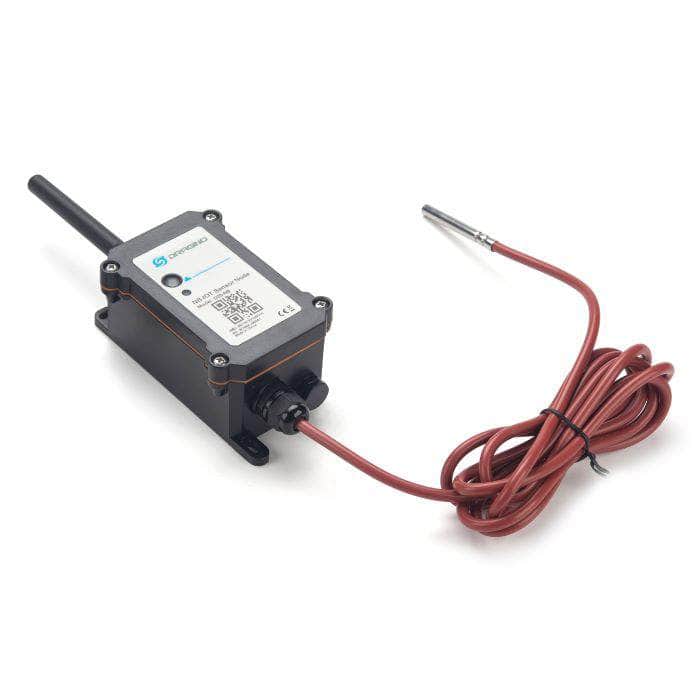

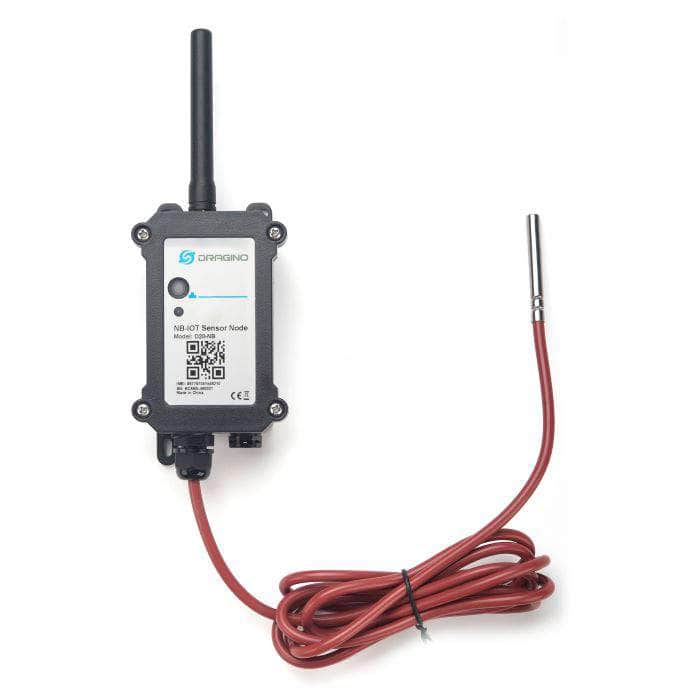

D20 NB-IoT LTE CAT-M Waterproof Outdoor Temperature Sensor
The Dragino D20-NB and D20-CB is an NB-IoT LTE CAT-M Temperature Sensor for Internet of Things solutions. D20-NB/D20-CB will convert the Temperature reading to upload the sensor data send to the IoT platform via the NB-IoT LTE CAT-M network.
The temperature sensor used in D20-NB/D20-CB can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).
D20-NB/D20-CB supports a temperature alarm feature, user can set a temperature alarm for instant notice. D20-NB supports the Datalog feature, it can save the data when there is no NB-IoT network and uplink when the network recovers.
D20-NB/D20-CB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and supports uplinks to various IoT Servers.
D20-NB/D20S-NB supports BLE configure and OTA update which make user easy to use.
D20-NB/D20S-NB is powered by an 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.
Features:
- NB-IoT LTE CAT-M Bands:B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
- Ultra Low Power Consumption
- 1 x DS18B20 Temperature probe
- Measure range: -55°C ~ 125°C
- Temperature alarm
- IP66 Waterproof Enclosure
- Support BLE remote configure and update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Battery for long term use
- Nano SIM card slot
Specifications:
Common DC Characteristics :
- Supply Voltage: 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
Temperature Sensor :
- Dallas DS18B20
- Range: -55 to + 125°C
- Accuracy ±0.5°C (max ±2.0 °C).
Support Bands:
- B1 @H-FDD: 2100MHz
- B2 @H-FDD: 1900MHz
- B3 @H-FDD: 1800MHz
- B4 @H-FDD: 2100MHz
- B5 @H-FDD: 860MHz
- B8 @H-FDD: 900MHz
- B12 @H-FDD: 720MHz
- B13 @H-FDD: 740MHz
- B17 @H-FDD: 730MHz
- B18 @H-FDD: 870MHz
- B19 @H-FDD: 870MHz
- B20 @H-FDD: 790MHz
- B25 @H-FDD: 1900MHz
- B28 @H-FDD: 750MHz
- B66 @H-FDD: 2000MHz
- B70 @H-FDD: 2000MHz
- B85 @H-FDD: 700MHz
Battery :
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption：
- STOP Mode: 10uA @ 3.3v
- Max transmit power: 350mA@3.3v
