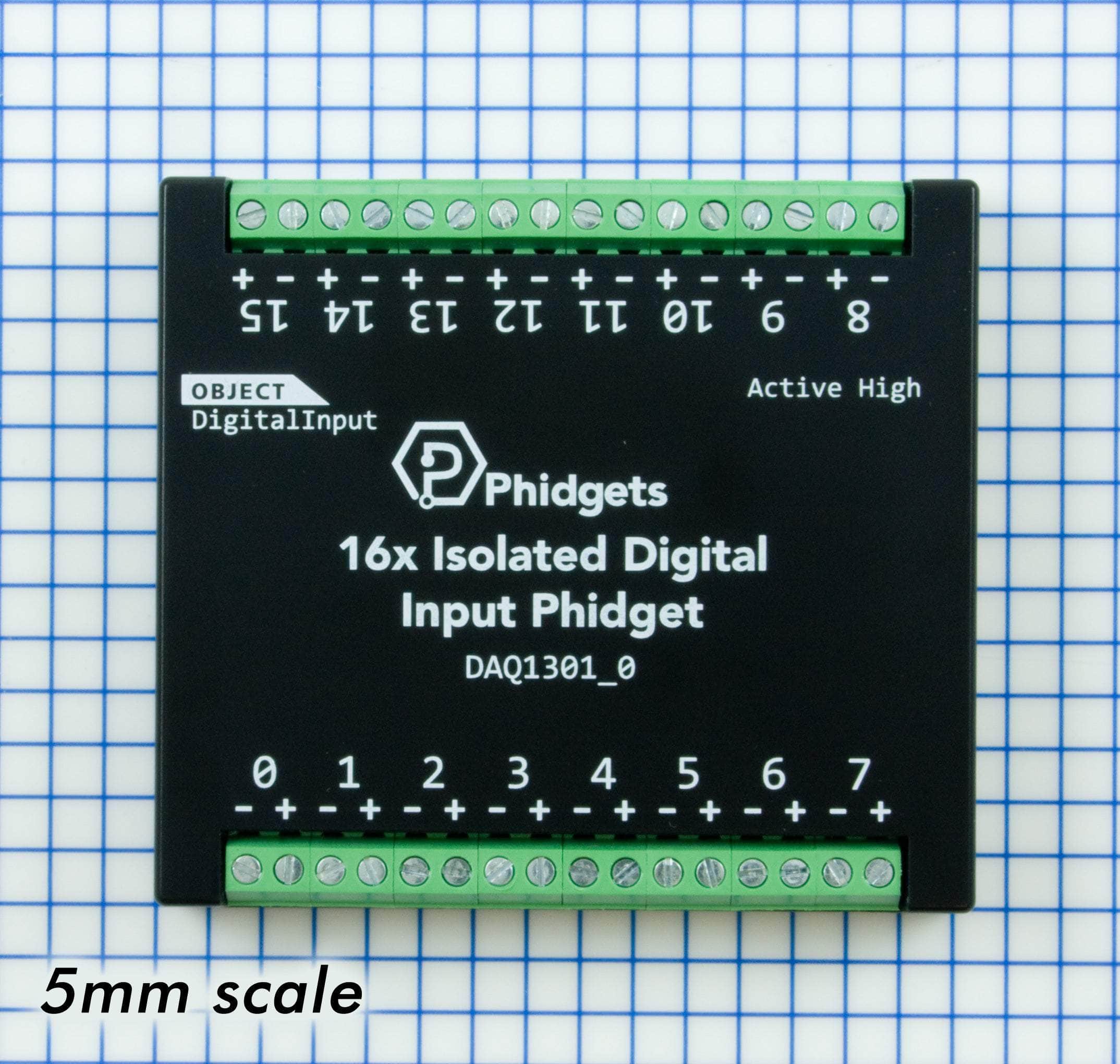

16x Isolated Digital Input Phidget DAQ1301

Description

16x Isolated Digital Input Phidget DAQ1301

The DAQ1301 allows you to connect 16 digital inputs - connect switches, buttons, or any device with a logic-level output. This Phidget connects to your computer through a VINT Hub.

Features

  • 16 digital inputs that can each withstand up to 30V DC
  • Triggers on very brief pulses as short as 200us
  • VINT port is isolated from the inputs, improving stability and reducing interference
  • Each input is isolated from the others, so you can switch multiple circuits with different grounds

Product Specifications

Board Properties
Controlled By VINT
VINT Communication Speed Max 100 kbit/s
Electrical Properties
Current Consumption Min 100 μA
Current Consumption Max 8 mA
Isolation Voltage (DC) 5 kV DC
Digital Inputs
Number of Digital Inputs 16
Low Voltage Max (False) 1.3 V DC
High Voltage Min (True) 2.5 V DC
Low Voltage Trigger Length Min 0.2 ms
High Voltage Trigger Length Min 0.05 ms
Digital Input Voltage Max 30 V DC
Digital Input Current 2.5 mA
Digital Input Type Powered
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C





16x Isolated Digital Input Phidget DAQ1301

Product form

SKU: DAQ1301

$100.00 $90.00 Excl. GST

$90.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    16x Isolated Digital Input Phidget DAQ1301

    The DAQ1301 allows you to connect 16 digital inputs - connect switches, buttons, or any device with a logic-level output. This Phidget connects to your computer through a VINT Hub.

    Features

    • 16 digital inputs that can each withstand up to 30V DC
    • Triggers on very brief pulses as short as 200us
    • VINT port is isolated from the inputs, improving stability and reducing interference
    • Each input is isolated from the others, so you can switch multiple circuits with different grounds

    Product Specifications

    Board Properties
    Controlled By VINT
    VINT Communication Speed Max 100 kbit/s
    Electrical Properties
    Current Consumption Min 100 μA
    Current Consumption Max 8 mA
    Isolation Voltage (DC) 5 kV DC
    Digital Inputs
    Number of Digital Inputs 16
    Low Voltage Max (False) 1.3 V DC
    High Voltage Min (True) 2.5 V DC
    Low Voltage Trigger Length Min 0.2 ms
    High Voltage Trigger Length Min 0.05 ms
    Digital Input Voltage Max 30 V DC
    Digital Input Current 2.5 mA
    Digital Input Type Powered
    Physical Properties
    Recommended Wire Size 16 - 26 AWG
    Operating Temperature Min -40 °C
    Operating Temperature Max 85 °C
