DC MOTOR 5 Click - MikroElektronika H-bridge Gate Driver

Description

DC MOTOR 5 Click - MikroElektronika H-bridge Gate Driver

DC MOTOR 5 click carries the DRV8701 brushed DC motor gate driver from Texas Instruments. The click is designed to run on an external power supply. It communicates with the target MCU over the following pins on the mikroBUS™ line: AN, RST, CS, PWM, and INT.

DRV8701 driver features

The DRV8701 is an H-bridge gate driver (also called a pre-driver or controller). The device integrates FET gate drivers in order to control four external NMOS FETs. The device can be powered with a supply voltage between 5.9V and 45V.

Internal protection functions are provided: under-voltage lockout, charge pump faults, overcurrent shutdown, short-circuit protection, pre-driver faults, and overtemperature.

How the click works

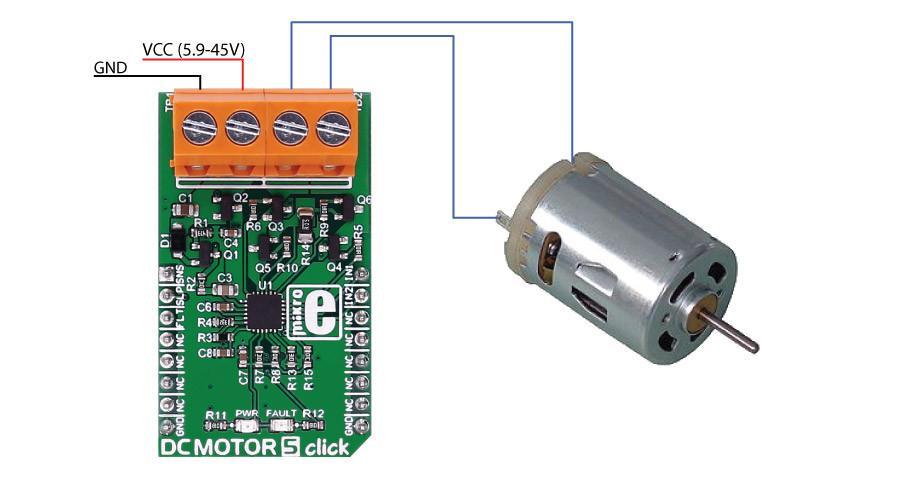

The motor's velocity and direction can be adjusted with two PWM input signal's.

Specifications

Type DC
Applications Industrial brushed-DC motors, robotics, home automation, etc.
On-board modules DRV8701 Brushed DC Motor Full-Bridge Gate Driver
Key Features supply voltage between 5.9V and 45V
Interface GPIO
Click board size M (42.9 x 25.4 mm)
