DFRobot Bluno Beetle Shield

Description

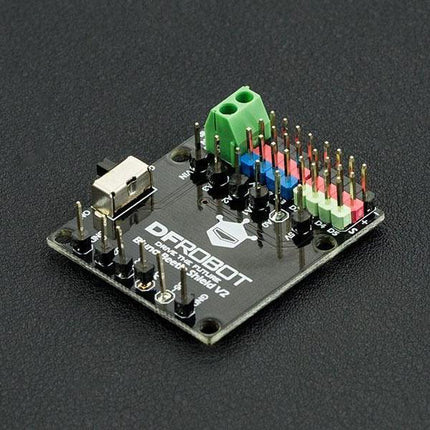

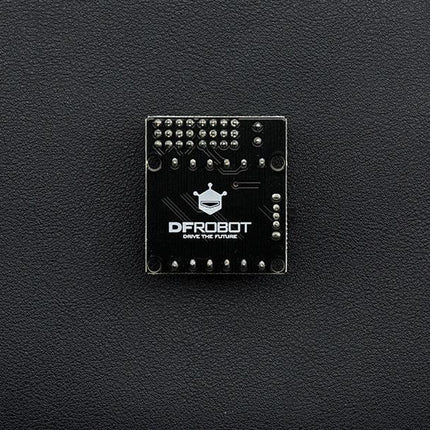

DFRobot Bluno Beetle Shield

The Bluno Beetle Shield expands the Beetle's single analog and digital I/O pins to the 3 pin "gravity" interface, giving more power and ground connections and making it easier to attach gravity interface modules. It also includes a convenient external power supply and a 5-8v switch to power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield's I/O pins and then soldered in place.


Bluno Beetle (DFR0339) stacked on Bluno Beetle Shield

FEATURES

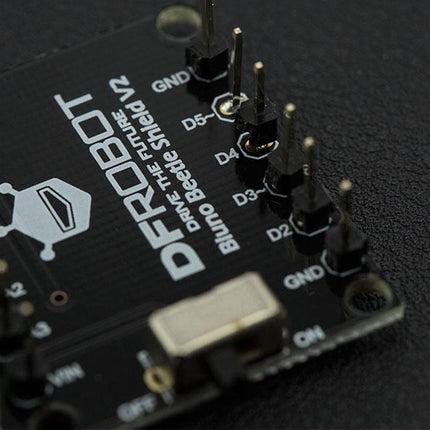

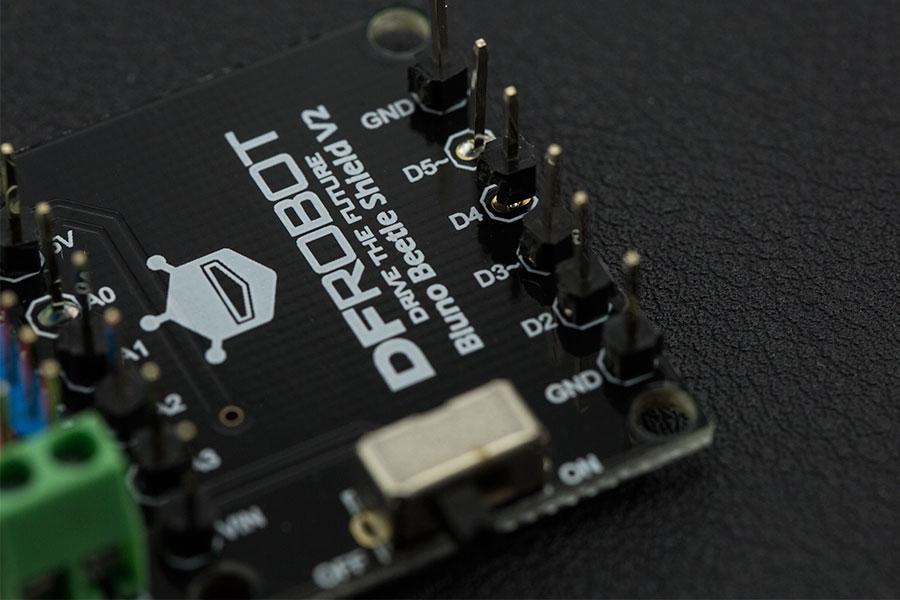

  • Digital I/O Pins x4: D2-D5

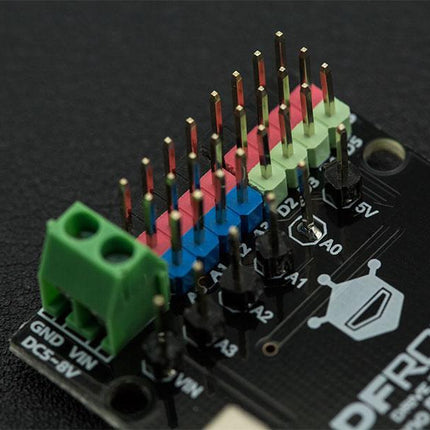

  • Analog Input Pins x4: A0-A3

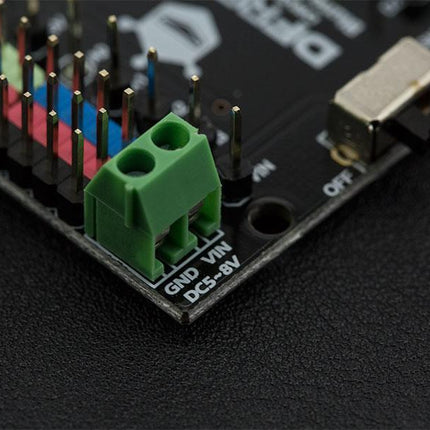

  • Vin input range: 5-8v

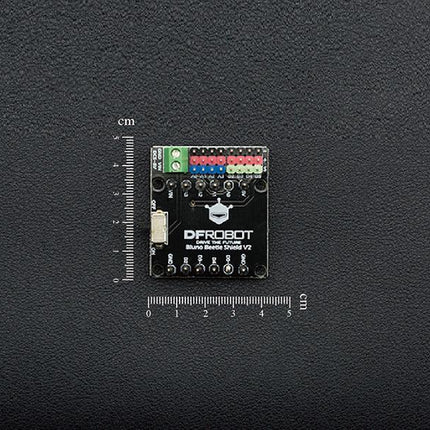

  • Mounting Holes x4 (3mm diameter)
  • Power Switch

DOCUMENTS

DFRobot Bluno Beetle Shield

Product form

SKU: DFR0356

$10.00 $7.00 Excl. GST

$7.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    DFRobot Bluno Beetle Shield

    The Bluno Beetle Shield expands the Beetle's single analog and digital I/O pins to the 3 pin "gravity" interface, giving more power and ground connections and making it easier to attach gravity interface modules. It also includes a convenient external power supply and a 5-8v switch to power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield's I/O pins and then soldered in place.


    Bluno Beetle (DFR0339) stacked on Bluno Beetle Shield

    FEATURES

    • Digital I/O Pins x4: D2-D5
    • Analog Input Pins x4: A0-A3
    • Vin input range: 5-8v
    • Mounting Holes x4 (3mm diameter)
    • Power Switch

    DOCUMENTS
