DFRobot Gravity: Analog Slide Position (Potentiometer) Sensor

Description

DFRobot Gravity: Analog Slide Position (Potentiometer) Sensor

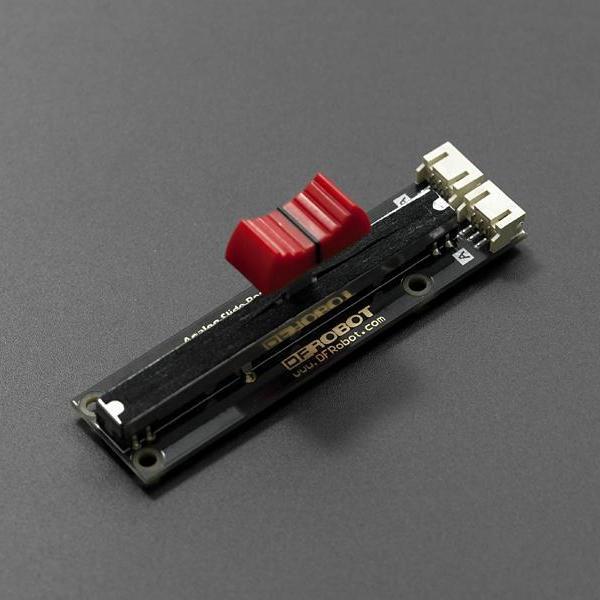

This Arduino Slide Position Sensor is based on straight-slip slide potentiometer sensor. The sensor is able to give provide the position of the slider which is often considered as a linear potentiometer.

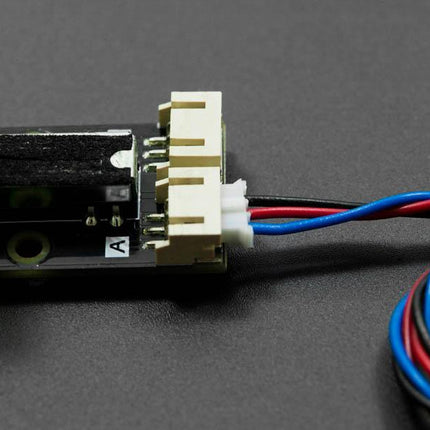

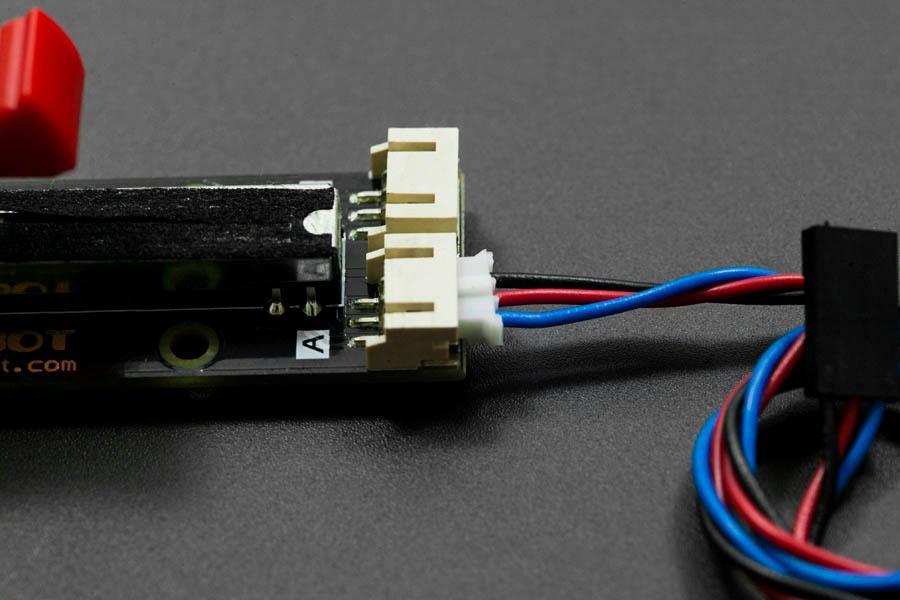

The sensor includes two analogue outputs to allow the user to average the values and minimize random sensor fluctuations.

To ease the difficulty of using this sensor,  a Gravity Interface is adapted to allow plug&play.

A slide potentiometer is commonly seen in music mixer.

Application of DFRobot arduino slider Potentiometer

What is potentiometer?

"A potentiometer is an instrument for measuring the potential (voltage) in a circuit. A fraction of a known voltage from a resistive slide wire is compared with an unknown voltage by means of a galvanometer. The sliding contact or wiper of the potentiometer is adjusted and the galvanometer briefly connected between the sliding contact and the unknown voltage. The deflection of the galvanometer is observed and the sliding tap adjusted until the galvanometer no longer deflects from zero. At that point the galvanometer draws no current from the unknown source, and the magnitude of voltage can be calculated from the position of the sliding contact."

SPECIFICATION

  • Voltage: +5 V
  • Interface Type: Analog
  • 5.4kΩ resistance value
  • High-quality connectors


DOCUMENTS

DFRobot Gravity: Analog Slide Position (Potentiometer) Sensor

Product form
Free pickup in our shop(s)

SKU: DFR0053

$15.00 $8.00 Excl. GST

$15.00 $8.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges

    Description

    DFRobot Gravity: Analog Slide Position (Potentiometer) Sensor

    This Arduino Slide Position Sensor is based on straight-slip slide potentiometer sensor. The sensor is able to give provide the position of the slider which is often considered as a linear potentiometer.

    The sensor includes two analogue outputs to allow the user to average the values and minimize random sensor fluctuations.

    To ease the difficulty of using this sensor,  a Gravity Interface is adapted to allow plug&play.

    A slide potentiometer is commonly seen in music mixer.

    Application of DFRobot arduino slider Potentiometer

    What is potentiometer?

    "A potentiometer is an instrument for measuring the potential (voltage) in a circuit. A fraction of a known voltage from a resistive slide wire is compared with an unknown voltage by means of a galvanometer. The sliding contact or wiper of the potentiometer is adjusted and the galvanometer briefly connected between the sliding contact and the unknown voltage. The deflection of the galvanometer is observed and the sliding tap adjusted until the galvanometer no longer deflects from zero. At that point the galvanometer draws no current from the unknown source, and the magnitude of voltage can be calculated from the position of the sliding contact."

    SPECIFICATION

    • Voltage: +5 V
    • Interface Type: Analog
    • 5.4kΩ resistance value
    • High-quality connectors


    DOCUMENTS
