Analog Water Pressure Sensor

Description

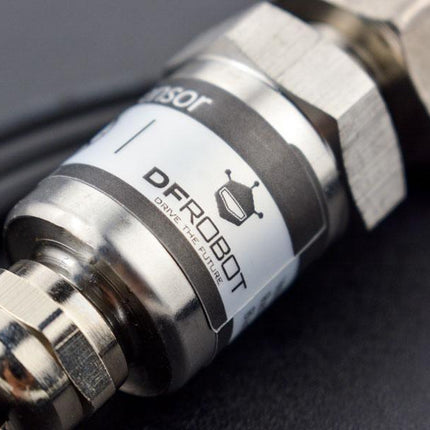

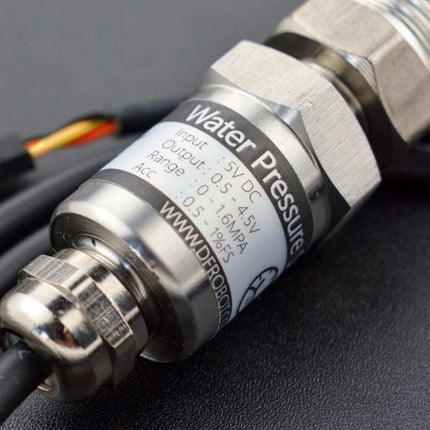

Analog Water Pressure Sensor

This is a water pressure sensor adopts DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers.


Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, how strong the water pressure is. It can be widely applied to smart home control systems (SCS), Internet of Things (IoT) and device detections.

FEATURES

  • Support water pressure detection of living environmental water systems, such as houses, gardens and farms.
  • Support water pressure detection of the outdoor environment, such as rivers, lakes and sea.
  • Support water pressure detection of tanks;
  • Support liquid level detection in special situation detection in specified liquid;
  •

    SPECIFICATION

  • Medium: liquid/gas without corrosion
  • Wiring: Gravity-3Pin (Signal-VCC-GND)
  • Pressure Measurement Range: 0~1.6 Mpa
  • Input Voltage: +5 VDC
  • Output Voltage: 0.5~4.5 V
  • Measurement Accuracy: 0.5%~1%FS (0.5%, 0~55°C)
  • Threadably: G1/4

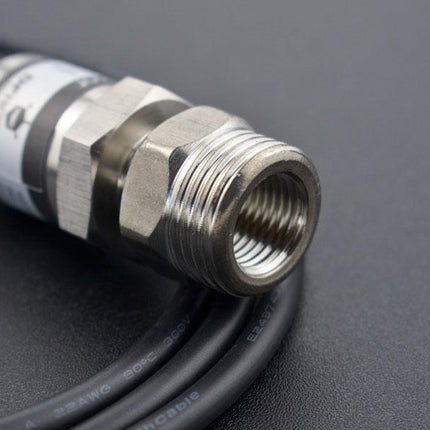

  • Adapter: G1/2 to G1/4
  • Waterproof level: IP68
  • Operating Temperature: -20~85°C
  • Response Time: <2.0 ms
  • Quiescent Current: 2.8 mA
  • Normal Operating Pressure: ≤2.0 Mpa
  • Damaged Pressure: ≥3.0Mpa
  • Service Life: 10’000’000 times
  •

    DOCUMENTS

    Product wiki

    SHIPPING LIST

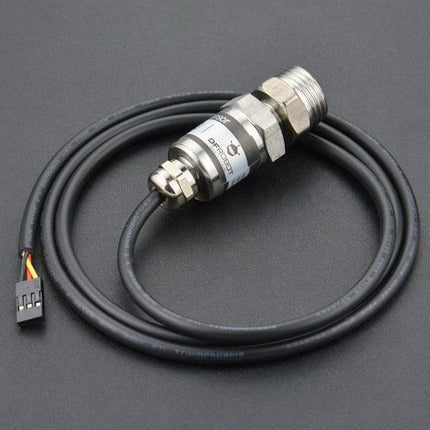

  • Analog Water Pressure Sensor x1
  • G1/2 to G1/4 Connector (mounted) x1
    • Analog Water Pressure Sensor

      Product form

      SKU: SEN0257

      $99.00 $89.00 Excl. GST

      $89.00
      Product available in stock.

        • We ship from our stock in AU (Perth), pickup by prior booking
        • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
        • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

        Description

        Analog Water Pressure Sensor

        This is a water pressure sensor adopts DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers.


        Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, how strong the water pressure is. It can be widely applied to smart home control systems (SCS), Internet of Things (IoT) and device detections.

        FEATURES

      • Support water pressure detection of living environmental water systems, such as houses, gardens and farms.
      • Support water pressure detection of the outdoor environment, such as rivers, lakes and sea.
      • Support water pressure detection of tanks;
      • Support liquid level detection in special situation detection in specified liquid;
      •

        SPECIFICATION

      • Medium: liquid/gas without corrosion
      • Wiring: Gravity-3Pin (Signal-VCC-GND)
      • Pressure Measurement Range: 0~1.6 Mpa
      • Input Voltage: +5 VDC
      • Output Voltage: 0.5~4.5 V
      • Measurement Accuracy: 0.5%~1%FS (0.5%, 0~55°C)
      • Threadably: G1/4
      • Adapter: G1/2 to G1/4
      • Waterproof level: IP68
      • Operating Temperature: -20~85°C
      • Response Time: <2.0 ms
      • Quiescent Current: 2.8 mA
      • Normal Operating Pressure: ≤2.0 Mpa
      • Damaged Pressure: ≥3.0Mpa
      • Service Life: 10’000’000 times
      •

        DOCUMENTS

        Product wiki

        SHIPPING LIST

      • Analog Water Pressure Sensor x1
      • G1/2 to G1/4 Connector (mounted) x1
