Photoelectric Water / Liquid Level Sensor

Description

Photoelectric Water / Liquid Level / Water Depth Sensor

This is a photoelectric water liquid level sensor that is operates using optical principles. The advantages of this photoelectric water liquid level sensor are good sensitivity and no need for mechanical parts. The corrosion resistant probe is easily mounted and can handle high temperature and high pressure. The liquid sensor is equipped with an interface adapter for compatibility with the DFRobot "Gravity" interface.


Gravity: Analog Photoelectric Water / Liquid Level Sensor For Arduino

To ease the difficulty of using this Arduino liquid sensor,  a Gravity Interface is adapted to allow plug&play.  The Arduino IO expansion shield is the best match for this sensor connecting to Arduino. As this liquid sensor is able to work at 3.3V which makes it compatible with Raspberry Pi, intel edison, joule and curie.

Note: Avoid placing the sensor near bright lights or in direct sunlight as these can cause interference.

SPECIFICATION

  • Model: FS-IR02
  • Type: Photoelectric liquid level sensor
  • Operating voltage: 5 VDC
  • Output current: 12 mA
  • Working temperature: - 25 ~ 105 ℃
  • Low level output: < 0.1 V
  • High level output: > 4.6 V
  • Liquid level detection accuracy: ±0.5 mm
  • Material: PC
  • Measuring range: No limit
  • Life: 50,000 hours
  • Dimension: 28 x 28 mm/ 1.1 x 1.1 inches
  • Cable Length: 450mm
  • Weight: 26g

DOCUMENTS

SHIPPING LIST

  • Liquid Level Sensor-FS-IR02 probe x1

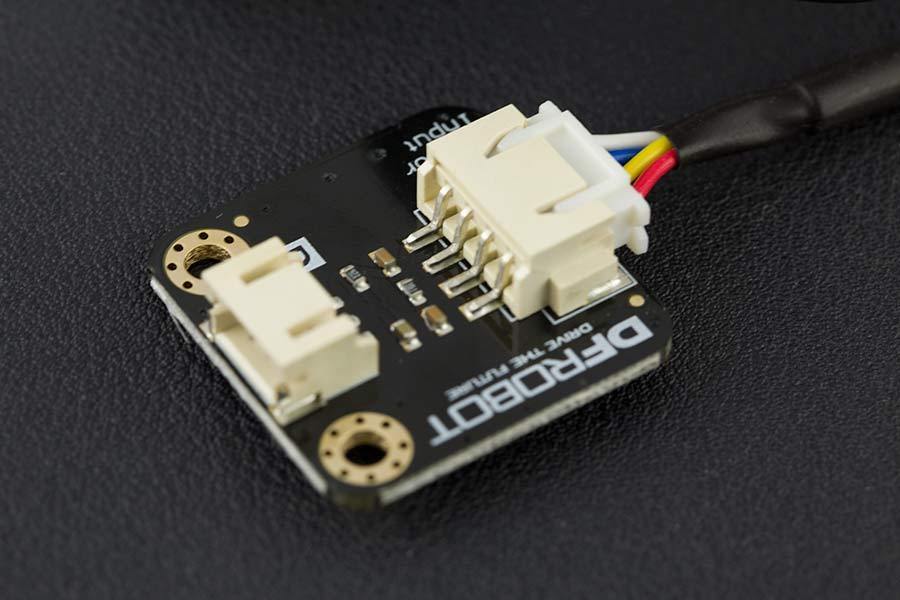

  • Liquid Level Sensor convert board x1



Read more

Photoelectric Water / Liquid Level Sensor

Product form
Free pickup in our shop(s)

SKU: SEN0205

$39.00 $29.00 Excl. GST

$29.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Photoelectric Water / Liquid Level / Water Depth Sensor

    This is a photoelectric water liquid level sensor that is operates using optical principles. The advantages of this photoelectric water liquid level sensor are good sensitivity and no need for mechanical parts. The corrosion resistant probe is easily mounted and can handle high temperature and high pressure. The liquid sensor is equipped with an interface adapter for compatibility with the DFRobot "Gravity" interface.


    Gravity: Analog Photoelectric Water / Liquid Level Sensor For Arduino

    To ease the difficulty of using this Arduino liquid sensor,  a Gravity Interface is adapted to allow plug&play.  The Arduino IO expansion shield is the best match for this sensor connecting to Arduino. As this liquid sensor is able to work at 3.3V which makes it compatible with Raspberry Pi, intel edison, joule and curie.

    Note: Avoid placing the sensor near bright lights or in direct sunlight as these can cause interference.

    SPECIFICATION

    • Model: FS-IR02
    • Type: Photoelectric liquid level sensor
    • Operating voltage: 5 VDC
    • Output current: 12 mA
    • Working temperature: - 25 ~ 105 ℃
    • Low level output: < 0.1 V
    • High level output: > 4.6 V
    • Liquid level detection accuracy: ±0.5 mm
    • Material: PC
    • Measuring range: No limit
    • Life: 50,000 hours
    • Dimension: 28 x 28 mm/ 1.1 x 1.1 inches
    • Cable Length: 450mm
    • Weight: 26g

    DOCUMENTS

    SHIPPING LIST

    • Liquid Level Sensor-FS-IR02 probe x1
    • Liquid Level Sensor convert board x1
