Description
Differential Air Pressure Sensor Wireless LoRaWAN NB-IoT

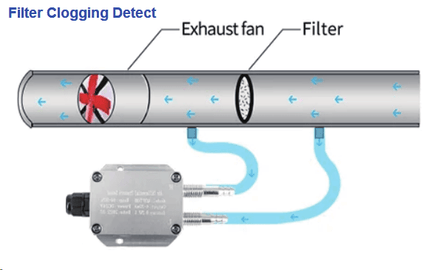

Sometimes it is not necessary to monitor the absolute air pressure but we need to know the difference of pressures in different points. One example may be before and after a valve in a pipe. If the valve is fully open, the pressure on both sides should be the same. If there's a difference in the pressure, it could be the valve isn't fully open or there's a blockage.
Differential Pressure Sensor has two air pressure inputs. It monitors the pressure difference between these two inputs and puts the value.

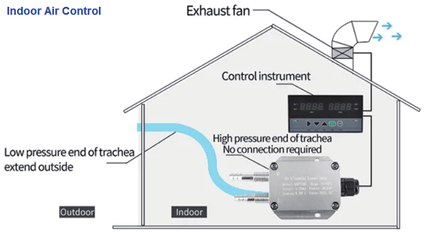

Differential Pressure Sensors can be used in home and industrial environments for applications such as offshore and subsea gas processing, and remote heating systems.
Dragino's Wireless Differential Pressure Sensor includes various models to cover LoRaWAN, NB-IoT wireless transmission, and different ranges of pressure measurements.
LoRaWAN Features:
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- Measure the Differential Pressure of two input

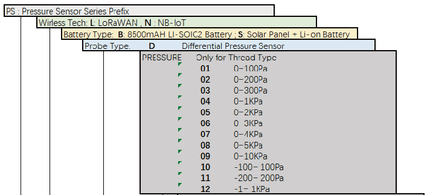

- Different pressure ranges available ( from 100Pa to 10KPa )
- Thread Installation Type or Immersion Type
- Monitor Battery Level
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically or Alarm Input
- Downlink to change configure
-
8500mAh Battery for long-term use
NB-IoT Features:
- NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
- Ultra-low power consumption
- Measure the Differential Pressure of two input
- Different pressure ranges available ( from 100Pa to 10KPa )
- Monitor Battery Level
- Multiply Sampling and one uplink
- Support Bluetooth v5.1 remote configure and update firmware
- Uplink on periodically or Alarm Input
- Downlink to change configure
- 8500mAh Battery for long-term use
- IP66 Waterproof Enclosure
- Uplink via MQTT, MQTTs, TCP, or UDP
- Nano SIM card slot for NB-IoT SIM
Specifications:
MicroController:
-
- MCU: 48Mhz ARM
- Flash: 256KB
- RAM: 64KB
Common DC Characteristics:
-
- Supply Voltage: 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 80°C
LoRa Spec:
-
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
NB-IoT Support Bands: (NB-IoT Module: BC660K-GL)
- B1 @H-FDD: 2100MHz
- B2 @H-FDD: 1900MHz
- B3 @H-FDD: 1800MHz
- B4 @H-FDD: 2100MHz
- B5 @H-FDD: 860MHz
- B8 @H-FDD: 900MHz
- B12 @H-FDD: 720MHz
- B13 @H-FDD: 740MHz
- B17 @H-FDD: 730MHz
- B18 @H-FDD: 870MHz
- B19 @H-FDD: 870MHz
- B20 @H-FDD: 790MHz
- B25 @H-FDD: 1900MHz
- B28 @H-FDD: 750MHz
- B66 @H-FDD: 2000MHz
- B70 @H-FDD: 2000MHz
- B85 @H-FDD: 700MHz
Current Input Measuring :
-
- Range: 0 ~ 20mA
- Accuracy: 0.02mA
- Resolution: 0.001mA
Voltage Input Measuring:
-
- Range: 0 ~ 30v
- Accuracy: 0.02v
- Resolution: 0.001v
Battery:
-
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
-
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
