DIGI POT click - MikroElektronika Single-Channel Digital Potentiometer

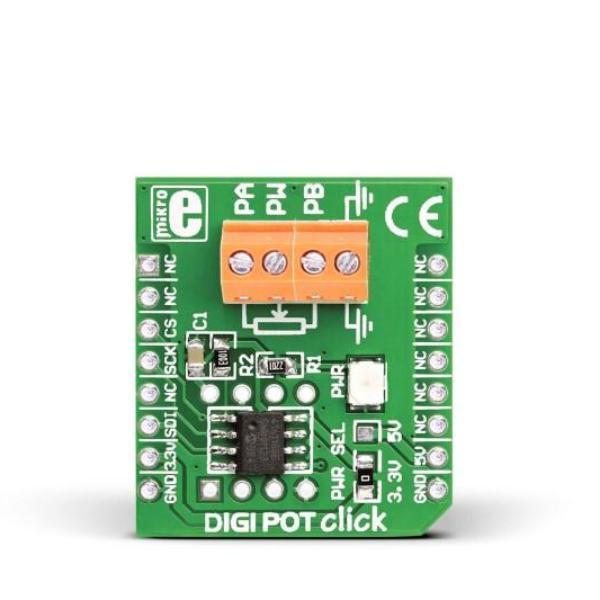

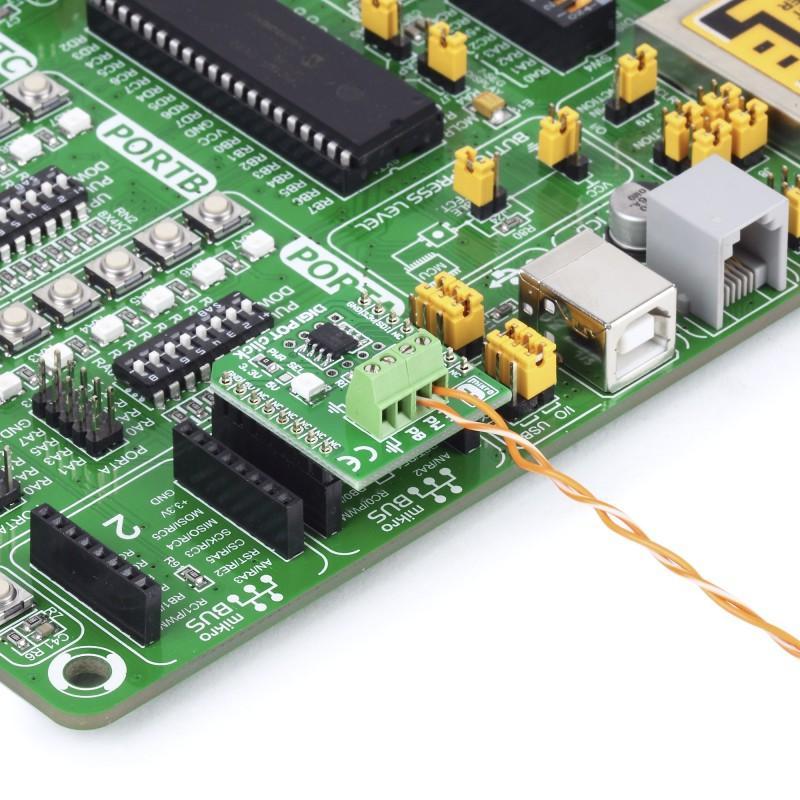

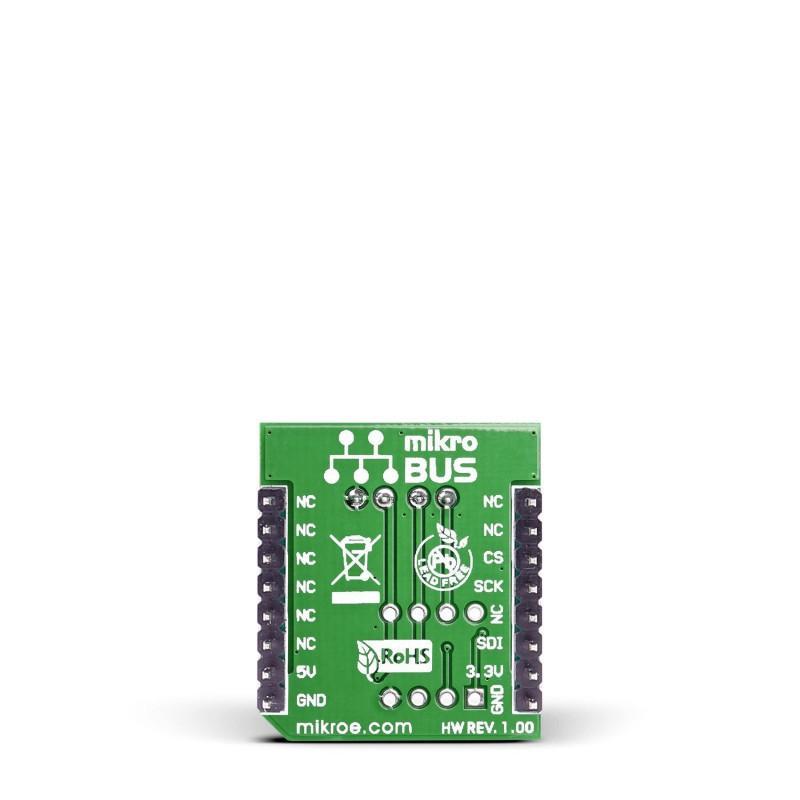

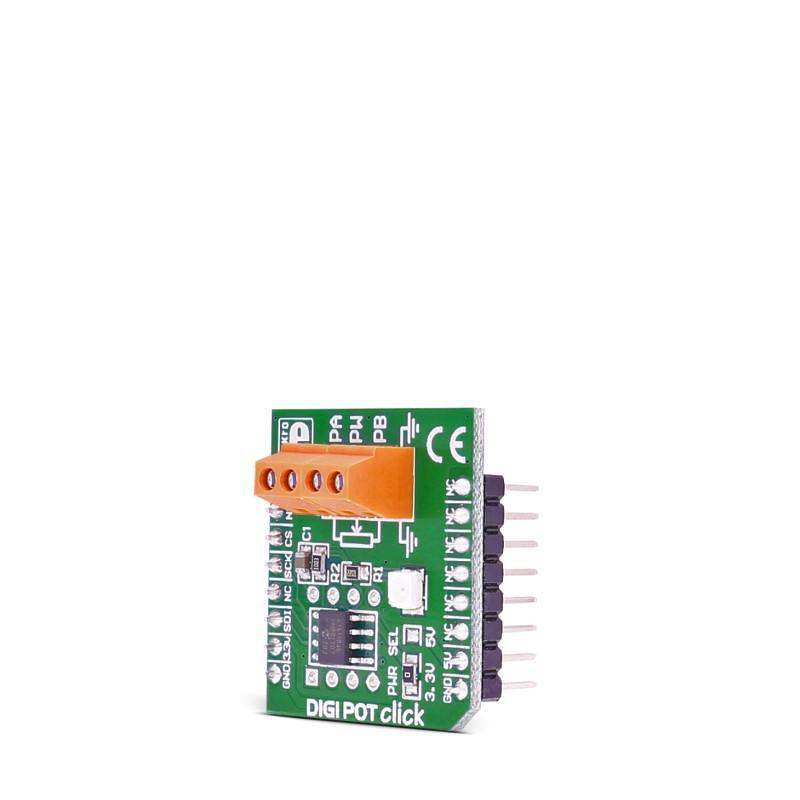

DIGIPOT Click is an accessory board in mikroBUS form factor. It features a single-channel digital potentiometer MCP4161 with 8-bit resolution (256 wiper steps) and industry-standard SPI serial interface. The resistance value of the digital potentiometer goes up to 10 kΩ. It features outstanding AC/DC characteristics and low power consumption. It can be used in audio equipment, servo-motor control, battery charging and control, LCD contrast control, programmable filters etc.
Specifications
| Type |
Digital potentiometer |
| Applications |
Board can be used in audio equipment, servo-motor control, battery charging and control, LCD contrast control, programmable filters etc. |
| On-board modules |
Single-channel digital potentiometer MCP4161 |
| Key Features |
8-bit (256 wiper steps) digital potentiometer |
| Key Benefits |
Small dimensions, easy to integrate into your prototype devices. |
| Interface |
SPI |
| Input Voltage |
3.3V or 5V |
| Compatibility |
mikroBUS |
| Click board size |
S (28.6 x 25.4 mm) |
