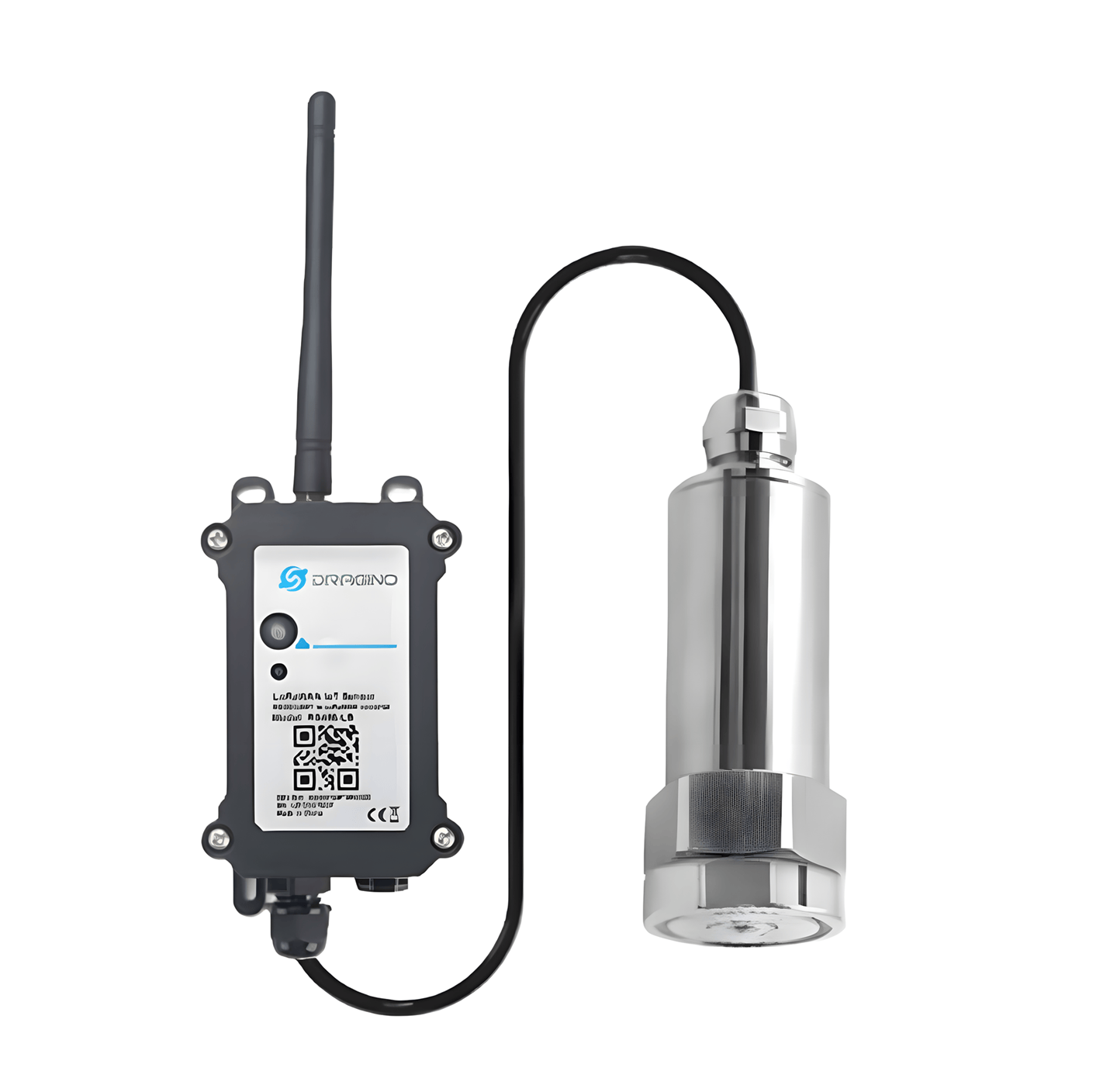

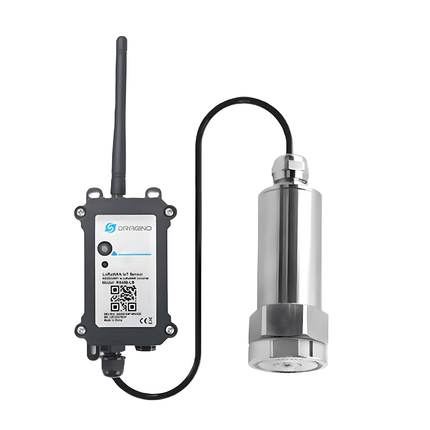

Dragino IVS-LN LoRaWAN Industrial Vibration Detector ISO Standard

Description

Dragino IVS-LN LoRaWAN Industrial Vibration Detector ISO Standard

Indsutrial Vibration Sensor is designed for motors, pumps, fans, and other rotating equipment, enabling early fault detection and predictive maintenance. ISO20816-1 provides general guidelines for measuring and evaluating machine vibration, establishing standardized methods to assess equipment condition anddetect potential faults.

IVS-LN is compliant with ISO20816-1 vibration evaluation guidelines. IVS-LN measures temperature, vibration frequency, RMS acceleration, RMS velocity & vibration displacement. And send these value to application server via LoRaWAN wireless protocol.

Features:

  • LoRaWAN v1.0.3 protocol
  • Frequency bands: AU915, AS923
  • Compliant with IS0 20816-1 vibration evaluation guidelines.
  • Monitor: RMS Acceleration/RMS Velocity/Vibration Frequency/Temperature
  • Support Bluetooth v5.1 and LoRaWAN remote configure
  • Support wireless OTA update firmware
  • DC Power + 1000mAh BackUp Battery

Specifications:

  • Probe IP Rate: IP68
  • Probe Operate Temperature: -40 ~ 80°C
  • Vibration Measure Parameters:
    • Frequency: 10~1600Hz or 10~5000Hz
    • RMS Velocity: 0 ~ 50 mm/s, Accuracy : <1%
    • Vibration Displacement: 0-5000 μm (Peak-to-Peak)
    • RMS Acceleration: 16g, Accuracy : <1%
    • Surface Temperature: -40 ~ 80
