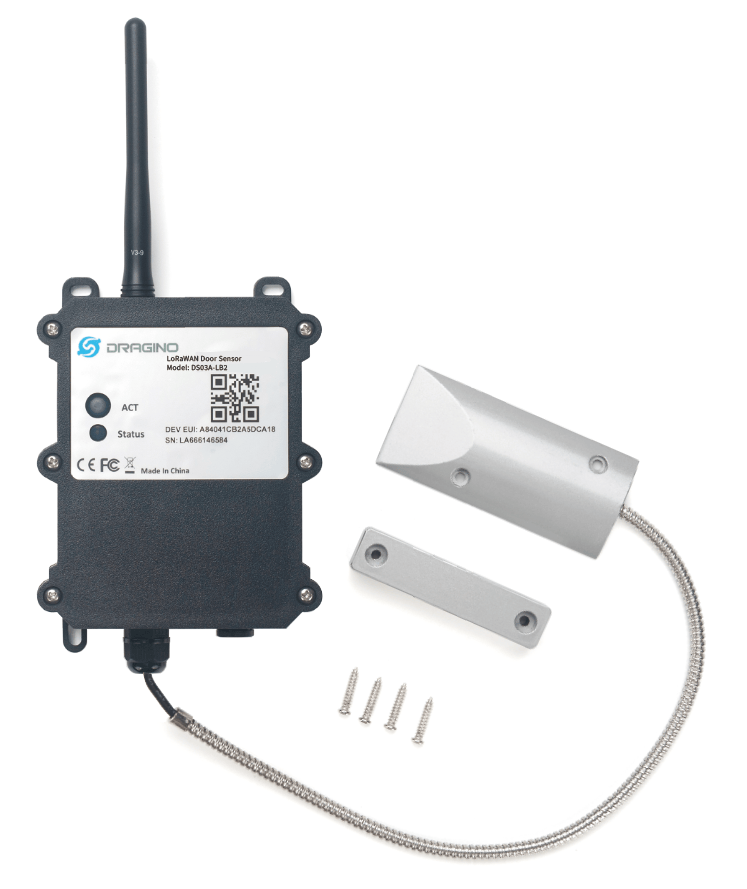

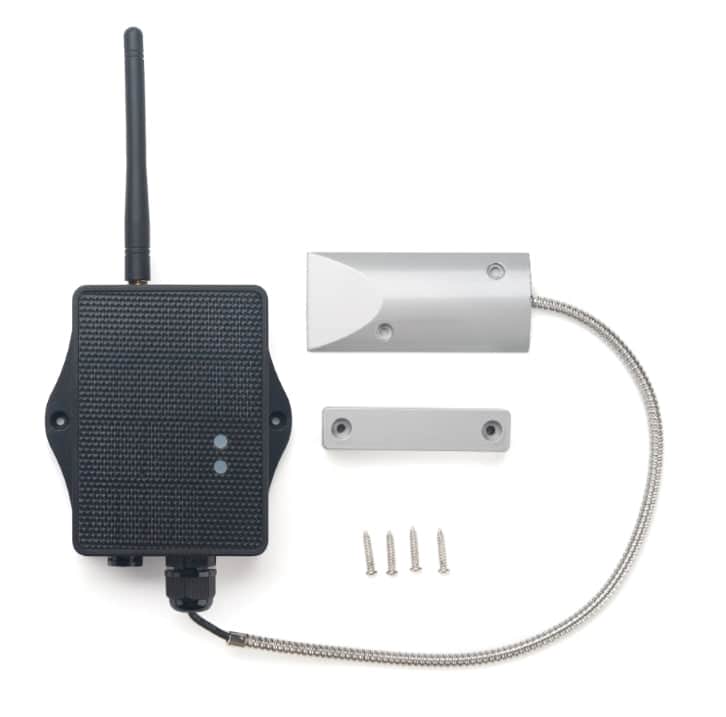

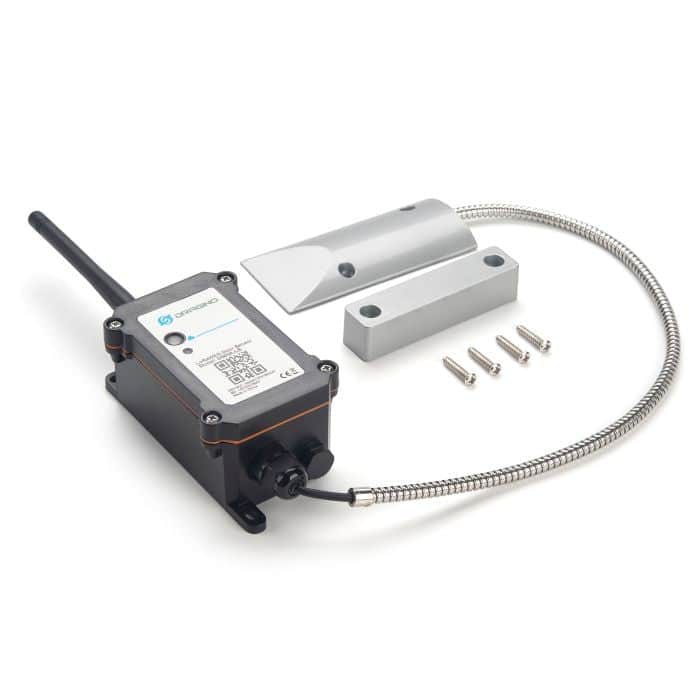

DS03A Outdoor LoRaWAN Wireless Door Window Sensor
The Dragino DS03A-LB/LS is a LoRaWAN Door Sensor for Internet of Things solution. It detects door open/close status and uplinks to IoT server via LoRaWAN network. user can see the door status, open duration, open counts in the IoT Server.
The LoRa wireless technology used in DS03A-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
The DS03A-LB/LS will send periodically data every 2 hours as well as for each door open/close action. It also counts the door open times and calculates the last door open duration. Users can also disable the uplink for each open/close event, instead, DS03A-LB/LS can count each open event and uplink periodically.
DS03A-LB/LS supports Datalog Feature, it can save the data when there is no LoRaWAN network and uplink when the network recovers.
DS03A-LB/LS has the Open Alarm Feature, user can set this feature so the device will send an alarm if the door has been open for a certain time.
DS03A-LB/LS is designed for outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures
DS03A-LB/LS supports BLE configuration and wireless OTA update which make user easy to use.
DS03A-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery, it is designed for long term use up to 5 years.
Each DS03A-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.
Specification:
Common DC Characteristics:
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Features:
- LoRaWAN v1.0.3 Class A protocol.
- Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
- Door Open/Close detect
- Door open/close statistics
- 8500mAh industrial battery(none-rechargeable)
- AT Commands to change parameters
- Uplink on periodically and open/close event
- Datalog feature
- Remote configure parameters via LoRa Downlink
- Firmware upgradable via program port
- Wall Mountable
- Outdoor Use
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Industrial Monitoring and Control
