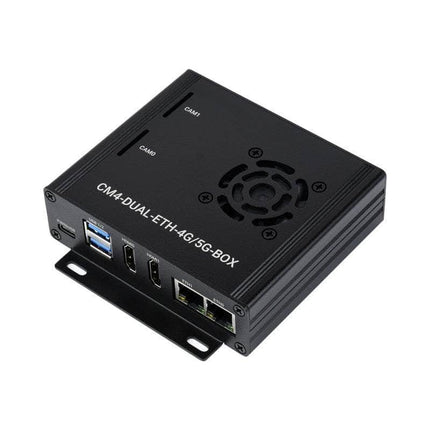

Dual Gigabit Ethernet 5G/4G Raspberry Pi Compute Module 4 with Fan
Note: R Pi CM4 and Cellular Module are not included.
The dual GigE 5G/4G Base inside makes it easy to build your own Raspberry Pi CM4 Mini PC.
Base Board Specifications
| CM4 SOCKET |
suitable for all variants of Compute Module 4 |
| NETWORKING |
Dual Gigabit Ethernet RJ45 |
| M.2 B KEY, for connecting the 5G / 4G module |
| Nano-SIM card slot supports standard Nano-SIM card for 5G/4G/3G/2G communication |
| USB |
USB 3.2 Gen1 × 2 |
| PIN HEADER |
Raspberry Pi 40PIN GPIO header |
| DISPLAY |
MIPI DSI port (15pin 1.0mm FPC connector) |
| CAMERA |
MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector) |
| VIDEO |
HDMI × 2, supports 4K 30fps output |
| RTC |
Real-time clock with battery socket and ability to wake Compute Module 4 |
| STORAGE |
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
| FAN HEADER |
5V/12V (12V by default), allows speed adjustment and measurement |
| POWER INPUT |
5V/2.5A |
| DIMENSIONS |
99.6 × 87.0mm |

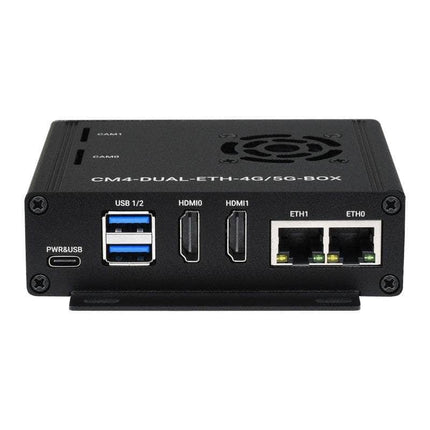

Rich Interfaces
Providing Interfaces Including ETH/CSI/DSI/RTC/HDMI/Micro SD/USB/M.2 B KEY
Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector
Cooling Fan Included
Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation
Wall Mount Support
Wall Mount Holes On Two Sides, Handy For Mounting
Application Examples
Suitable For Raspberry Pi Telecommunication Projects, Or Other Industrial Applications
Outline Dimensions
