LM-130H1 GlobalSat Dual-Mode LoRa/LoRaWAN Module

Description

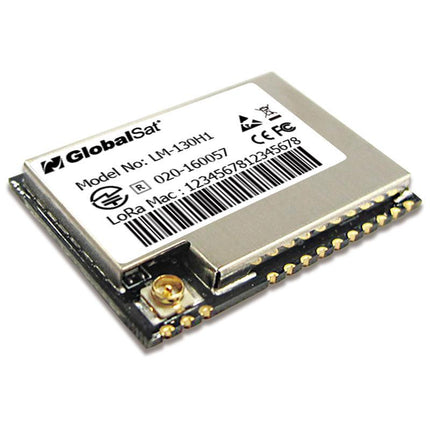

LM-130H1 GlobalSat Dual-Mode LoRa/LoRaWAN Module

The GlobalSat LM-130H1 is an RF module that based on LoRa® technology which provides long-range, low data rate IoT connectivity to sensors, electronic meter reading, geolocation devices, industrial monitoring and control, home and building automation, long-range irrigation systems, and all kinds of IoT/ M2M equipment. It can work as the end-node devices in the LoRaWAN™ infrastructure or in GlobalSat proprietary M.O.S.T. mode.

Note: This is a certified module by GlobalSat within the Australian ISM band 915-928MHz. It is preconfigured and tested on channel 0-7, all other channels (8-63) are disabled, but can be enabled using a configuration tool.

Features

  • Built-in standard LoRaWAN™ FW and proprietary M.O.S.T. FW in the same module
  • Default as LoRaWAN™, switch/ pre-load M.O.S.T. by external HW design
  • Share same PCB/ device design for both LoRaWAN™ and private RF data communication
  • For LoRaWAN™
    • Pin-to-pin compatible with LM-130H
    • Standard LoRaWAN™ protocol for EU868/ US915/ AS923 and profile for local settings
  • For M.O.S.T:
    • MOST-Link: use AT-command set to send data over MOST-Link protocol
    • M.O.S.T.: set module as different operation mode for data transmission in any format
    • Frequency: 860 - 928MHz
    • Ultra-high sensitive receiving ability by LoRa® spread spectrum modulation technology
  • Accord FCC, ETSI, Telec standard

 Specifications

LoRa® Chipset Semtech™ SX1276
Antenna IPEX RF Connector
MCU STM32 (128KB flash)
Frequency 863-870MHz (EU)
902-928MHz (US)
920-928MHz (ROA)
Transmission Power 862-870MHz (EU) @ 14 dBm
902-928MHz (US) @ 20 dBm
920-928MHz (ROA) @ 20 dBm
Transmission Media UART
Baud Rate LoRaWAN™：57600 bps, Parity: 8N1
M.O.S.T.：9600 bps
Operation Voltage 3 ~ 6 V
Current Consumption Receiving: 21 mA (typical)
Transmitting: 125 mA (typical)
Sleeping: 5 uA (typical)
Transmission Distance LoRaWAN™: 1KM~10KM @ 980 bps
M.O.S.T.: 1KM~10KM @ 0.81 Kbps
Receiving Sensitivity LoRaWAN™: -132 dBm @ 980 bps
M.O.S.T.: -132 dBm @ 0.81 Kbps
Operation Temperature -40°~ 85°C
Humidity 5~95% (Non-condensing)
Dimension 25 x 18 mm (PCBA)



LM-130H1 English ／ 2017-09-28 ／
Description LM-130H1 Specifications



AT Command Reference Guide

LM-130H1 GlobalSat Dual-Mode LoRa/LoRaWAN Module

Product form

SKU: LM-130H1

$50.00 $25.00 Excl. GST

$25.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    LM-130H1 GlobalSat Dual-Mode LoRa/LoRaWAN Module

    The GlobalSat LM-130H1 is an RF module that based on LoRa® technology which provides long-range, low data rate IoT connectivity to sensors, electronic meter reading, geolocation devices, industrial monitoring and control, home and building automation, long-range irrigation systems, and all kinds of IoT/ M2M equipment. It can work as the end-node devices in the LoRaWAN™ infrastructure or in GlobalSat proprietary M.O.S.T. mode.

    Note: This is a certified module by GlobalSat within the Australian ISM band 915-928MHz. It is preconfigured and tested on channel 0-7, all other channels (8-63) are disabled, but can be enabled using a configuration tool.

    Features

    • Built-in standard LoRaWAN™ FW and proprietary M.O.S.T. FW in the same module
    • Default as LoRaWAN™, switch/ pre-load M.O.S.T. by external HW design
    • Share same PCB/ device design for both LoRaWAN™ and private RF data communication
    • For LoRaWAN™
      • Pin-to-pin compatible with LM-130H
      • Standard LoRaWAN™ protocol for EU868/ US915/ AS923 and profile for local settings
    • For M.O.S.T:
      • MOST-Link: use AT-command set to send data over MOST-Link protocol
      • M.O.S.T.: set module as different operation mode for data transmission in any format
      • Frequency: 860 - 928MHz
      • Ultra-high sensitive receiving ability by LoRa® spread spectrum modulation technology
    • Accord FCC, ETSI, Telec standard

     Specifications

    LoRa® Chipset Semtech™ SX1276
    Antenna IPEX RF Connector
    MCU STM32 (128KB flash)
    Frequency 863-870MHz (EU)
    902-928MHz (US)
    920-928MHz (ROA)
    Transmission Power 862-870MHz (EU) @ 14 dBm
    902-928MHz (US) @ 20 dBm
    920-928MHz (ROA) @ 20 dBm
    Transmission Media UART
    Baud Rate LoRaWAN™：57600 bps, Parity: 8N1
    M.O.S.T.：9600 bps
    Operation Voltage 3 ~ 6 V
    Current Consumption Receiving: 21 mA (typical)
    Transmitting: 125 mA (typical)
    Sleeping: 5 uA (typical)
    Transmission Distance LoRaWAN™: 1KM~10KM @ 980 bps
    M.O.S.T.: 1KM~10KM @ 0.81 Kbps
    Receiving Sensitivity LoRaWAN™: -132 dBm @ 980 bps
    M.O.S.T.: -132 dBm @ 0.81 Kbps
    Operation Temperature -40°~ 85°C
    Humidity 5~95% (Non-condensing)
    Dimension 25 x 18 mm (PCBA)



    LM-130H1 English ／ 2017-09-28 ／
    Description LM-130H1 Specifications



    AT Command Reference Guide
