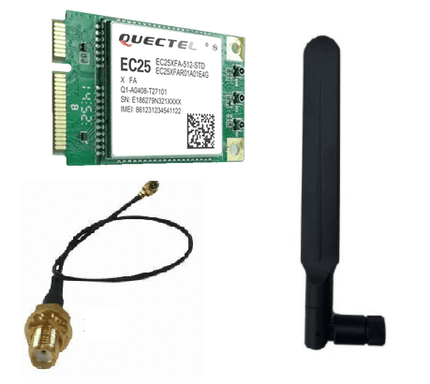

EC25-AU Quectel 4G LTE Cat4 Module
EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Key feature
- FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28(700MHz - Telstra) TDD LTE: B40
- WCDMA: B1/B2/B5/B8; GSM: B2/B3/B5/B8
- LTE Downlink:150Mbps, Uplink: 50Mbps
- HSPA+ Downlink:42Mbps, Uplink: 5.76Mbps
- Embedded GPS/GLONASS/BeiDou/Galileo/QZSS function
- Embedded with QuecLocator for cell location services
- Support 1 four line UART ports
- Support USB 2.0 High speed
- Embedded with TCP/IP stack, FOTA, STK
- Extended operation temperature -40 to 85C
- Support Win7/8/10, Linux, Android OS0/4.2/4.4/5.0/5.1/6.0
- Support Rx-diversity antenna
- Telstra and worldwide approved
