EERAM 5V click - MikroElektronika 16Kbit SRAM with EEPROM Backup

Description

EERAM 5V click - MikroElektronika 16Kbit SRAM with EEPROM Backup

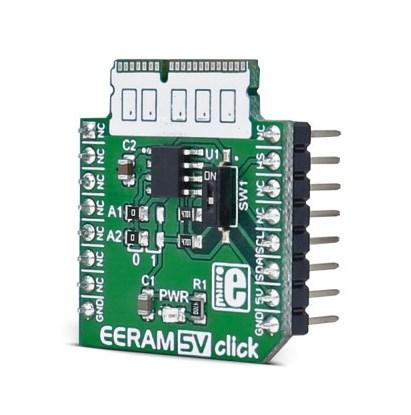

Add memory to your project with EERAM 5V click. It carries the 47C16 EERAM, a 16Kbit SRAM with EEPROM Backup from Microchip. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.

47C16 features

The Microchip Technology Inc 47C16 EERAM is a 16Kbit SRAM with EEPROM Backup. The I2C EERAM Memory is a Low-Cost NVSRAM that Eliminates the Need for an External Battery to Retain Data. The device is organized as 2048 x 8 bits and utilizes the I2C serial interface. The 47C16 provides infinite read and write cycles to the SRAM while the EEPROM cells provide high endurance non-volatile storage of Data. With an external capacitor, SRAM data is automatically transferred to the EEPROM upon power-loss. Data can also be transferred manually by using either the hardware store pin or by software control. Upon power-up, the EEPROM data is automatically recalled to the SRAM. Recall can also be initiated through software control. The unlimited endurance makes the EERAM useful in applications that need to constantly monitor or record data.

Specifications

Type EEPROM
Applications Additional memory for your projects
On-board modules 47C16 I2C serial EERAM from Microchip
Key Features 16K bits density, 1 MHz Maximum clock frequency, Automatic Store to EEPROM upon power-down (using optional external capacitor)
Key Benefits Retain the contents of the SRAM memory when system power is lost
Interface I2C
Input Voltage 5V
Click board size S (28.6 x 25.4 mm)



Downloads

EERAM 5V click - MikroElektronika 16Kbit SRAM with EEPROM Backup

Product form

SKU: MIKROE-2729

$30.00 $15.00 Excl. GST

$15.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    EERAM 5V click - MikroElektronika 16Kbit SRAM with EEPROM Backup

    Add memory to your project with EERAM 5V click. It carries the 47C16 EERAM, a 16Kbit SRAM with EEPROM Backup from Microchip. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.

    47C16 features

    The Microchip Technology Inc 47C16 EERAM is a 16Kbit SRAM with EEPROM Backup. The I2C EERAM Memory is a Low-Cost NVSRAM that Eliminates the Need for an External Battery to Retain Data. The device is organized as 2048 x 8 bits and utilizes the I2C serial interface. The 47C16 provides infinite read and write cycles to the SRAM while the EEPROM cells provide high endurance non-volatile storage of Data. With an external capacitor, SRAM data is automatically transferred to the EEPROM upon power-loss. Data can also be transferred manually by using either the hardware store pin or by software control. Upon power-up, the EEPROM data is automatically recalled to the SRAM. Recall can also be initiated through software control. The unlimited endurance makes the EERAM useful in applications that need to constantly monitor or record data.

    Specifications

    Type EEPROM
    Applications Additional memory for your projects
    On-board modules 47C16 I2C serial EERAM from Microchip
    Key Features 16K bits density, 1 MHz Maximum clock frequency, Automatic Store to EEPROM upon power-down (using optional external capacitor)
    Key Benefits Retain the contents of the SRAM memory when system power is lost
    Interface I2C
    Input Voltage 5V
    Click board size S (28.6 x 25.4 mm)



    Downloads
