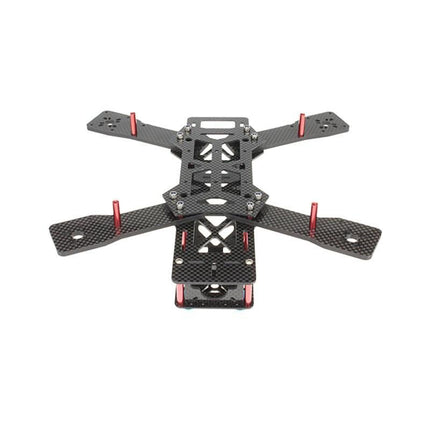

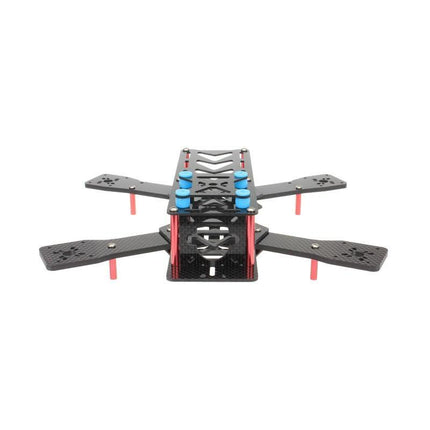

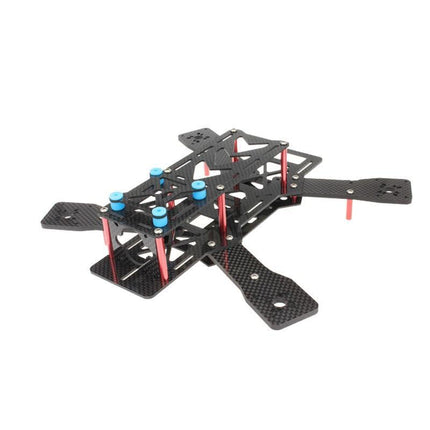

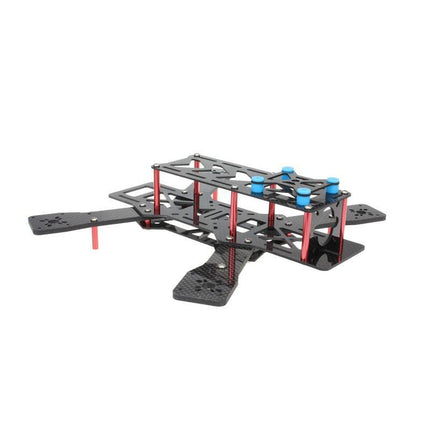

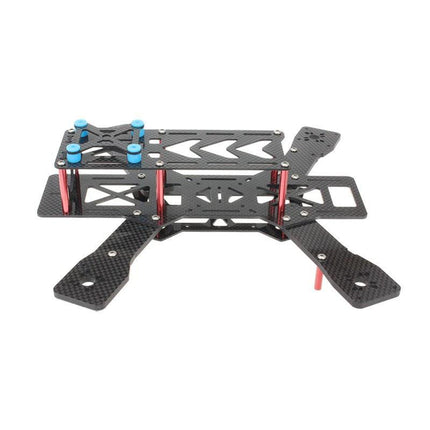

EMAX Nighthawk 250 II All Carbon Fiber Quadcopter Aircraft Frame

Description

EMAX Nighthawk 250 II All Carbon Fiber Quadcopter Aircraft Frame

Specifications:

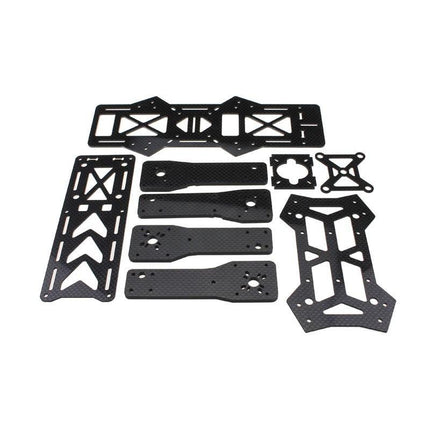

  • All Carbon Fiber
  • Wheelbase: 250/280mm
  • Weight: 129g
  • Motor mounts:  Accommodate both M2 and M3 screws/bolts
  • 45*45 standard flight controller install size

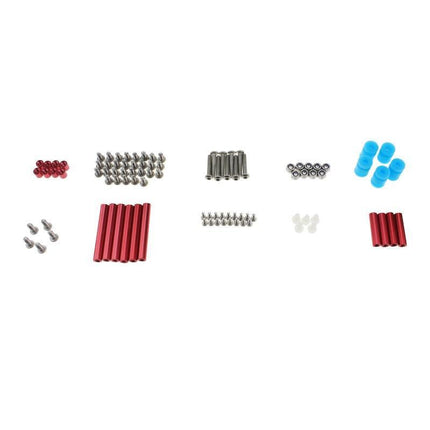

  • With aluminium spacer and post
  • 17pcs M2*8mm screws for micro motors

Configuration Suggest:

  • Motor: EMAX MT1806/MT2204/MT2208
  • ESC: EMAX Simon12A/BLheli 12A/Nano 12A
  • Propeller: 5-6inch,5030/5040/6030/6045
  • Flight controller compatible: Skyline32,CC3D,Rabbit, KK, MWC, NAZA, and support Skyline32, KK2.0, CC3D 30.5*30.5 install size
  • Battery: 2S-4S, 1000~1800mAH
  • Camera: 32 CCD 808/808 V2

Update Log

1. With two lines of mounting holes, you can make it to 250 size or 280 size
2. For EMAX MT2204, you can upgrade it with motor canted plastic part--Made by EMAX
3. Can be upgraded with LED tail light
4. EMAX change the arms from 3mm to 4mm
5. For EMAX motor MT1806 and MT2204, wires come out straight along with the arms
6. Front and rear arms can not be swapped

EMAX Nighthawk 250 II All Carbon Fiber Quadcopter Aircraft Frame

Product form
Free pickup in our shop(s)

SKU: EMX-MR-1607

$100.00 $40.00 Excl. GST

$100.00 $40.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges

    Description

    EMAX Nighthawk 250 II All Carbon Fiber Quadcopter Aircraft Frame

    Specifications:

    • All Carbon Fiber
    • Wheelbase: 250/280mm
    • Weight: 129g
    • Motor mounts:  Accommodate both M2 and M3 screws/bolts
    • 45*45 standard flight controller install size
    • With aluminium spacer and post
    • 17pcs M2*8mm screws for micro motors

    Configuration Suggest:

    • Motor: EMAX MT1806/MT2204/MT2208
    • ESC: EMAX Simon12A/BLheli 12A/Nano 12A
    • Propeller: 5-6inch,5030/5040/6030/6045
    • Flight controller compatible: Skyline32,CC3D,Rabbit, KK, MWC, NAZA, and support Skyline32, KK2.0, CC3D 30.5*30.5 install size
    • Battery: 2S-4S, 1000~1800mAH
    • Camera: 32 CCD 808/808 V2

    Update Log

    1. With two lines of mounting holes, you can make it to 250 size or 280 size
    2. For EMAX MT2204, you can upgrade it with motor canted plastic part--Made by EMAX
    3. Can be upgraded with LED tail light
    4. EMAX change the arms from 3mm to 4mm
    5. For EMAX motor MT1806 and MT2204, wires come out straight along with the arms
    6. Front and rear arms can not be swapped
