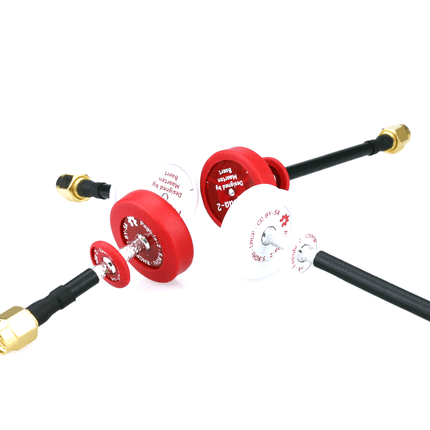

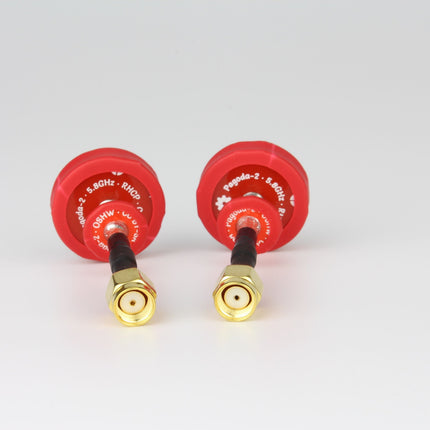

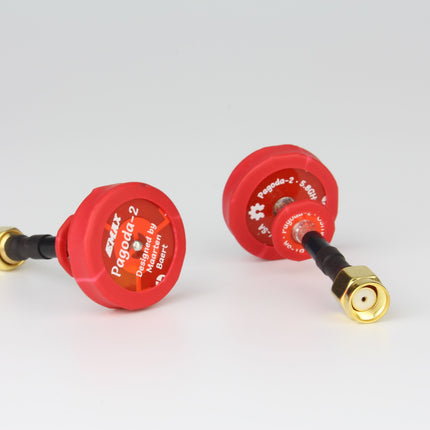

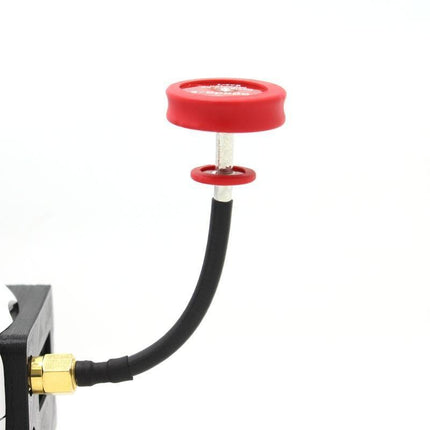

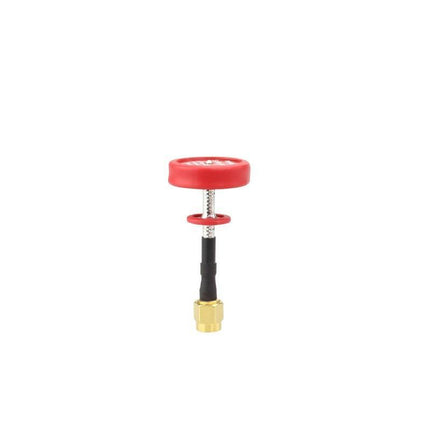

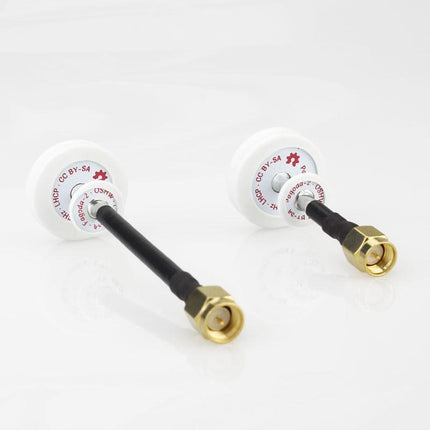

EMAX Pagoda 2 Antenna 5.8G FPV Flat Panel SMA

Description

EMAX Pagoda 2 Antenna 5.8G FPV Flat Panel SMA

SPECIFICATIONS

  • Center frequency: 5.8 GHz

  • Bandwidth: 500 MHz (5.55 – 6.05 GHz)

  • Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)

  • Axial ratio: < 1.3

  • Radiation efficiency: 95%

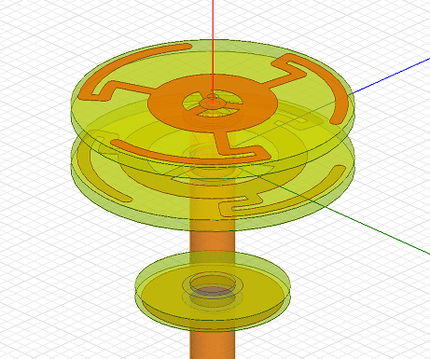

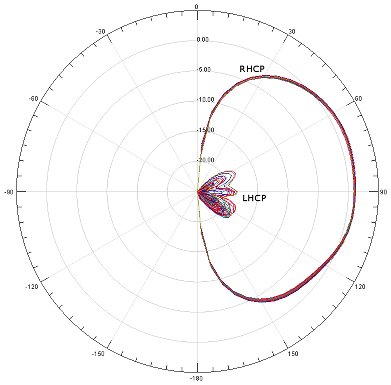

Originally the radiation efficiency was listed as 92%, this was a mistake. These values are based on simulation, actual measurements are below (they are very similar). The center frequency may shift a bit between batches as a result of variations in the dielectric constant of FR4. Also, not all brands of FR4 have the same dielectric constant. Frequency shifts up to 100 MHz are normal.



Read more

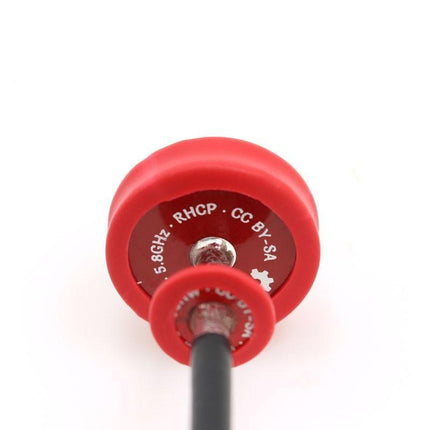

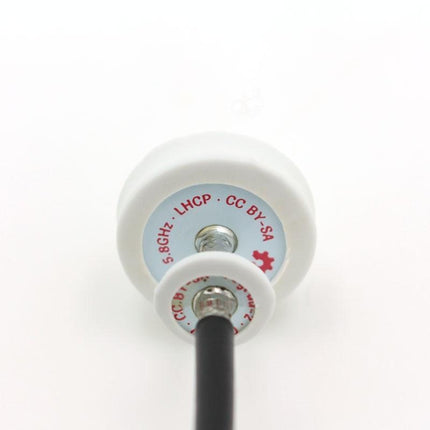

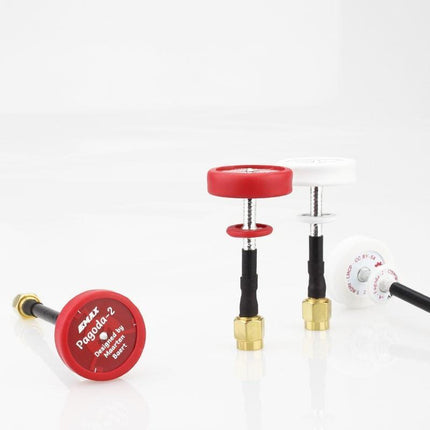

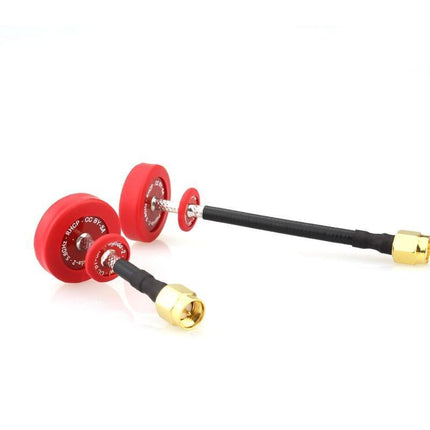

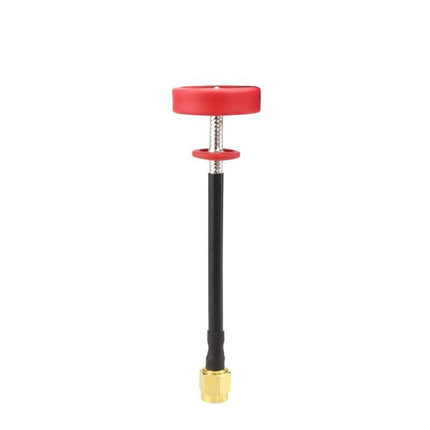

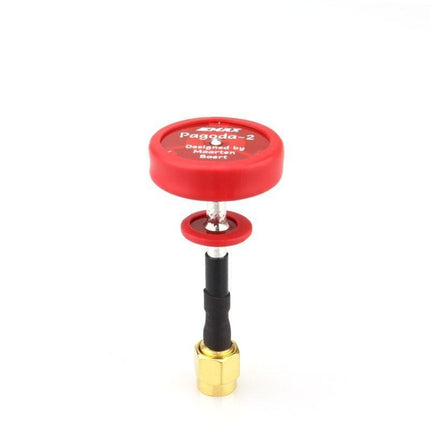

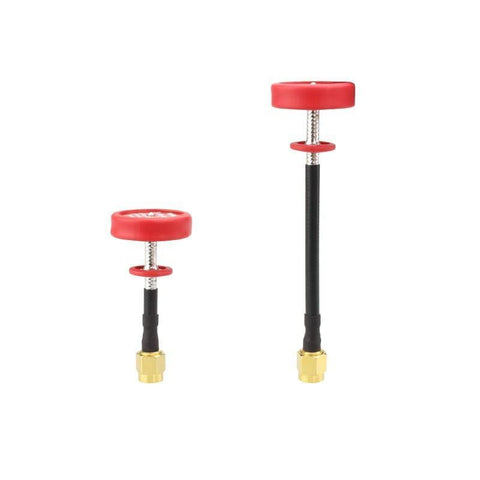

EMAX Pagoda 2 Antenna 5.8G FPV Flat Panel SMA

Product form
Free pickup in our shop(s)

SKU: EMX061-AC-1944-L50

$39.00 $19.00 Excl. GST

$19.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    EMAX Pagoda 2 Antenna 5.8G FPV Flat Panel SMA

    SPECIFICATIONS

    • Center frequency: 5.8 GHz

    • Bandwidth: 500 MHz (5.55 – 6.05 GHz)

    • Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)

    • Axial ratio: < 1.3

    • Radiation efficiency: 95%

    Originally the radiation efficiency was listed as 92%, this was a mistake. These values are based on simulation, actual measurements are below (they are very similar). The center frequency may shift a bit between batches as a result of variations in the dielectric constant of FR4. Also, not all brands of FR4 have the same dielectric constant. Frequency shifts up to 100 MHz are normal.



    Read more
