Description

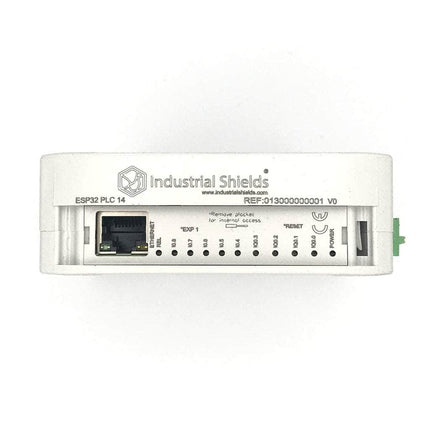

ESP32 PLC 14 Modular Controller 14 I/Os WiFi & Bluetooth
The ESP32 PLC 14 combines power and connectivity for advanced industrial applications.
With dual core, Ethernet, WiFi and RS485, it offers maximum flexibility.
Programmable with Arduino IDE, it allows local (USB) and remote (Ethernet) programming, ensuring real-time monitoring and optimized integration into any automation system.
9x Inputs
2x Analog/digital software configurable
7x Isolated digital inputs
5x Outputs
4x Isolated digital
1x Relay
Communications:
Ethernet, Wifi & BLE, RS485(HD), I2C
This is the first equipment based on the ESP32 Controller technology designed for professional use. This PLC has 14 I/Os. It also contains several communication ports which provide more flexibility and control. The ESP32 PLC family offers the possibility to expand up to 127 modules through I2C, which means that you can have up to 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…
Programming Software
This Controller can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.
Instantaneous connection and coding
The ESP32 PLC is programmed through the USB ports. This Controller can also be programmed through an Ethernet port remotely. This offers immediate access to program, maintenance and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.
ESP32 Family PLC Datasheet
ESP32 Family PLC User Guide
