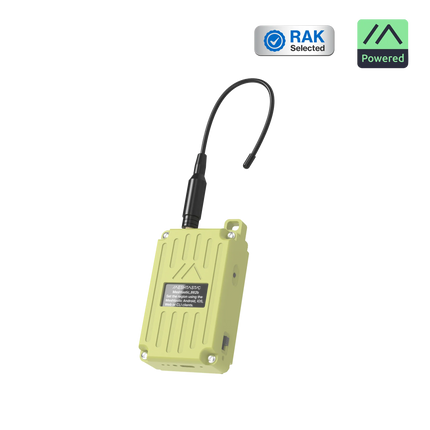

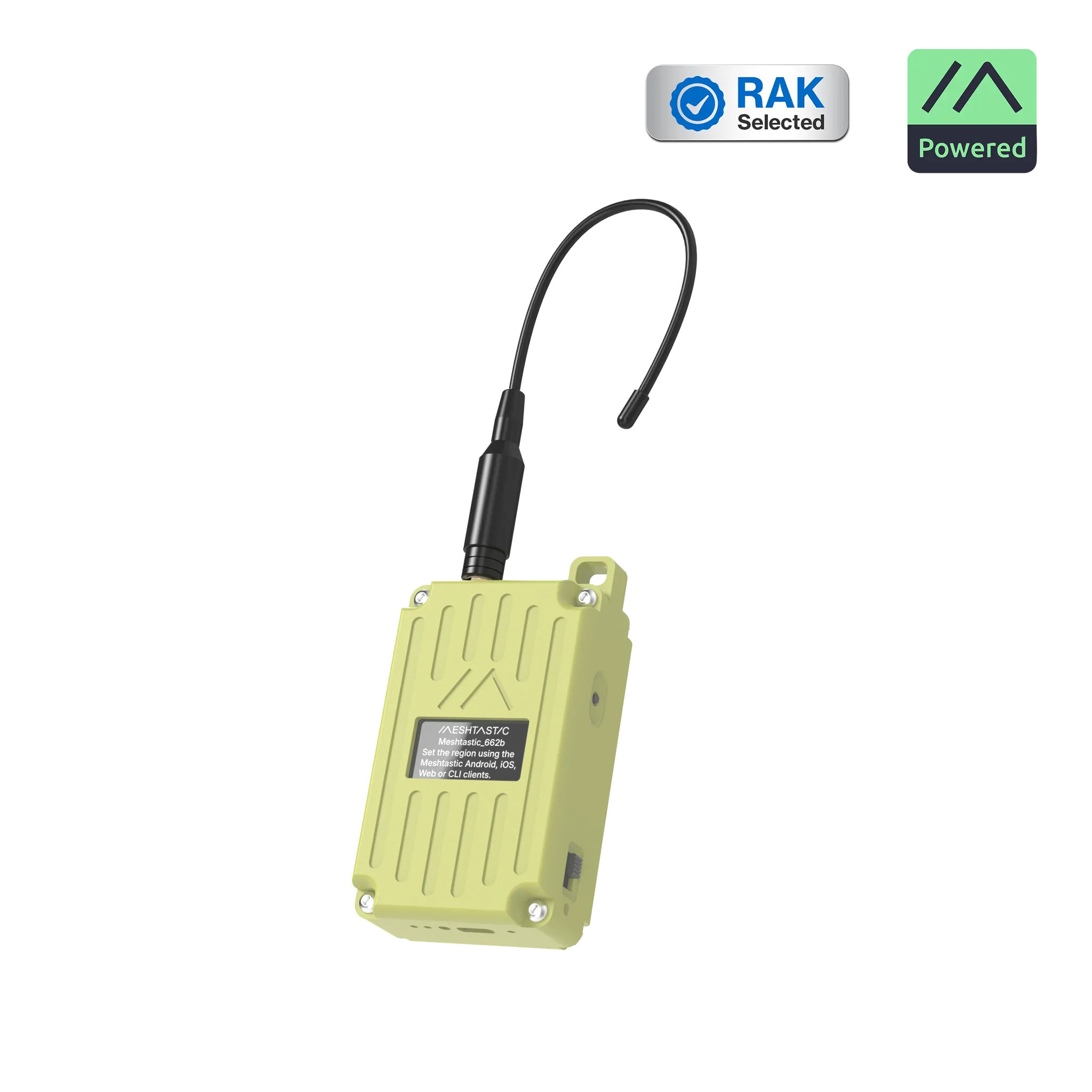

Flexible Whip Antenna Meshtastic LoRa LoRaWAN 902-9328 MHz

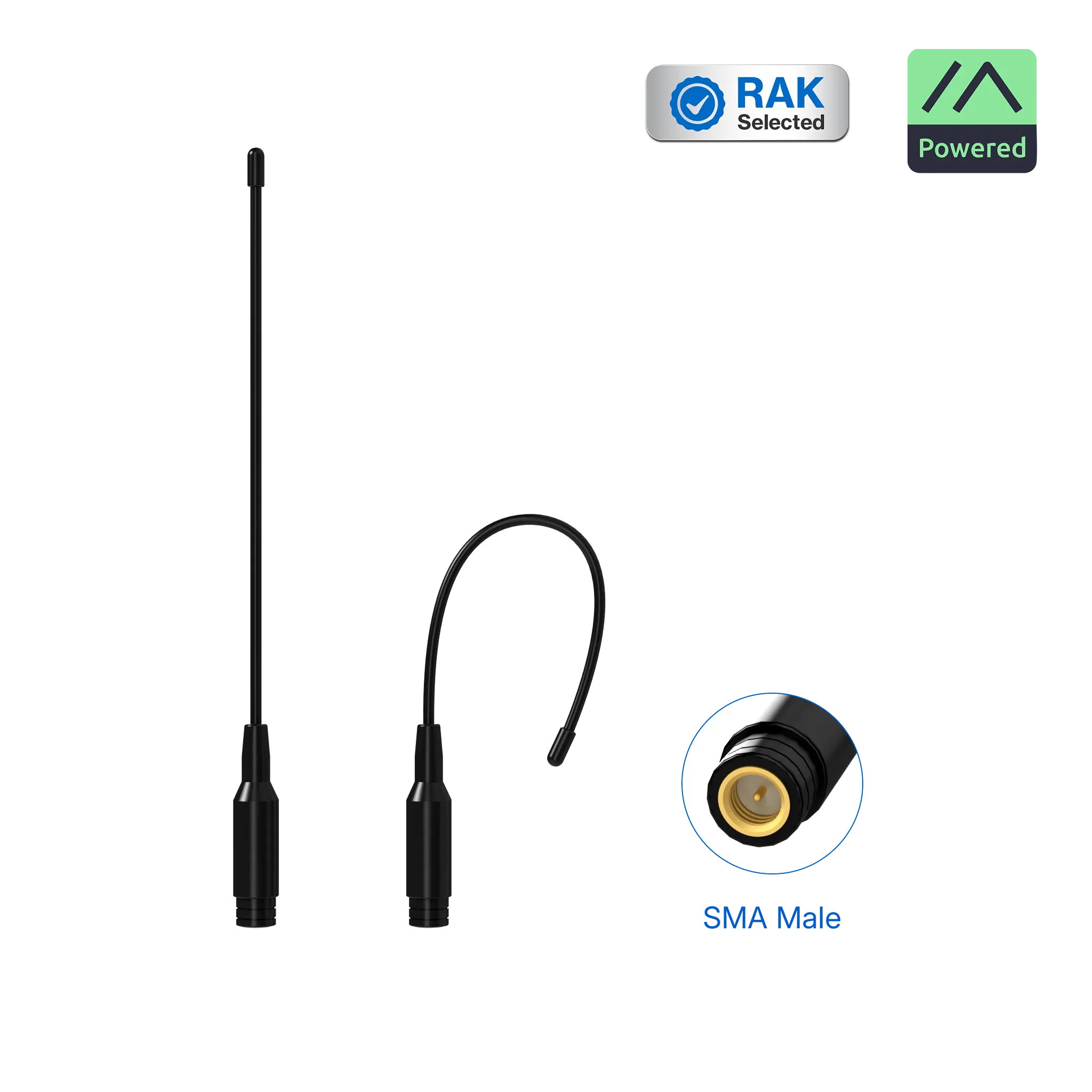

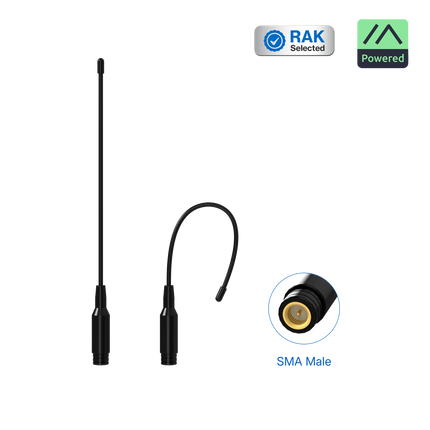

The Flexible Whip Antenna 20cm for Meshtastic is an external antenna made for LoRa®, Meshtastic, and compatible IoT devices. Its main job is to support more stable signal transmission in portable, fixed, and off-grid setups.
It works on 902–928MHz and uses an SMA male connector for broad device compatibility. With 2dBi gain and omnidirectional coverage, it helps maintain reliable links without requiring careful positioning. That makes it useful for mobile nodes, compact enclosures, and field-deployed radios.
The 20cm body is flexible, lightweight, and easy to integrate into small builds. Its rubber-coated housing helps protect the antenna during transport and regular outdoor use. With VSWR ≤ 1.5, vertical polarization, and support for demanding conditions, it is a practical option for users who need consistent LoRa or Meshtastic performance in everyday deployment environments.
Best Fit
This antenna is a strong fit for users building compact LoRa or Meshtastic nodes that need stable all-direction coverage without adding a large external antenna.
Best for:

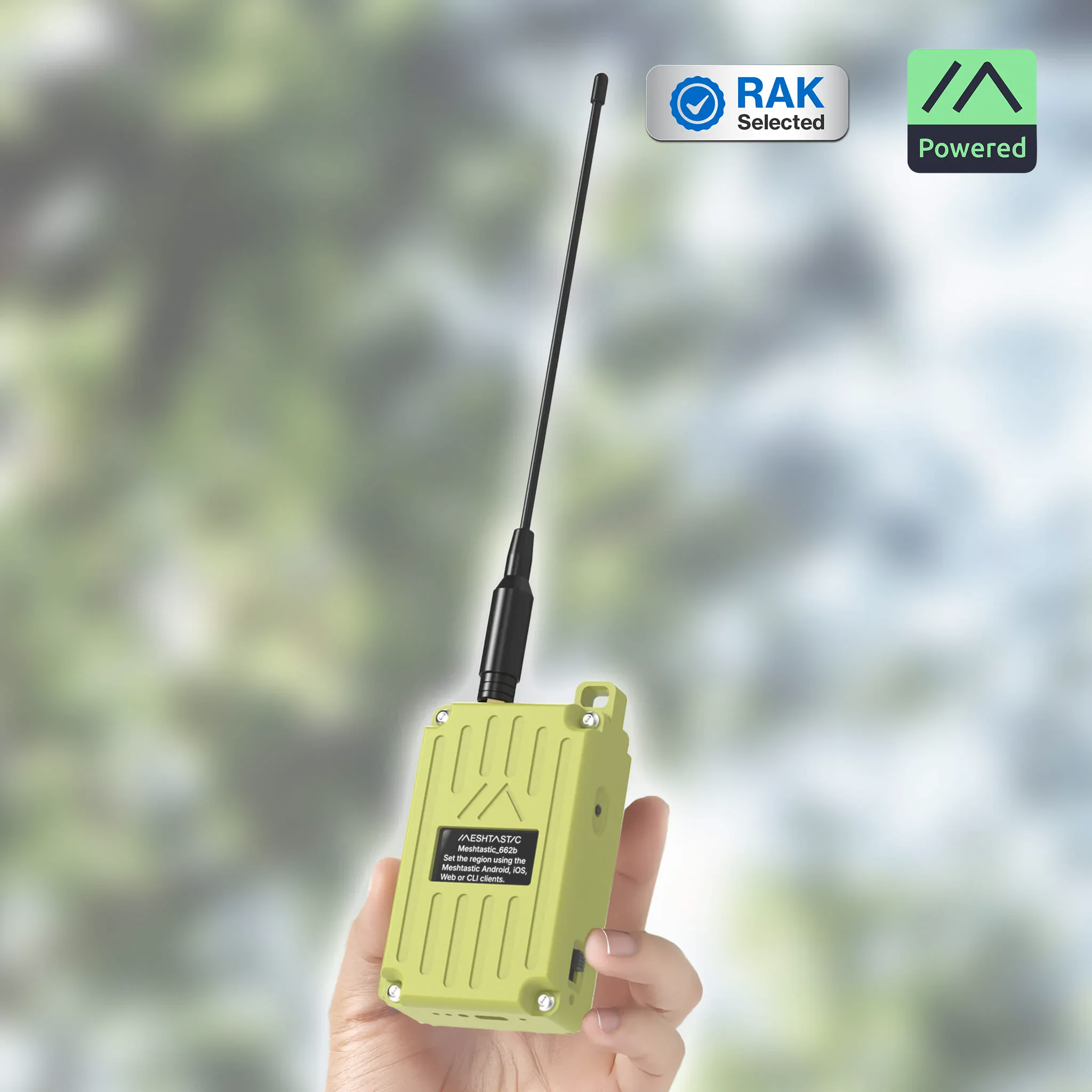

- Portable Meshtastic nodes used for hiking, biking, field testing, or everyday carry.
- Compact DIY LoRa builds where size, flexibility, and durability matter.
- Plastic enclosure-mounted nodes that need an external SMA antenna.
- Mobile or temporary outdoor nodes exposed to handling, vibration, or movement.
- Off-grid sensor nodes where repeatable link behavior is more important than antenna size
- 902–928 MHz deployments using devices with SMA-female antenna ports
Key Features of Flexible Whip Antenna for Meshtastic
|
Feature
|
Description
|
|
Flexible whip design
|
Bendable and durable rubber shell resists field cracks
|
|
2dBi gain & vertical polarization
|
Ideal for mid-range LoRa-based and Meshtastic links
|
|
360° horizontal beamwidth
|
Omnidirectional coverage for easier positioning
|
|
SMA male connector
|
Widely compatible with LoRa technology, Meshtastic, and IoT gear
|
|
Compact & lightweight
|
Only 20cm in length and 25g, suitable for portable builds
|
|
Rugged operation
|
Handles -40°C to 65°C, 95% humidity, and 36.9m/s wind
|
|
Wide frequency range
|
Supports 902–928MHz
|
|
Low VSWR
|
≤ 1.5 for efficient and stable signal transmission
|
|
50Ω impedance
|
Standard match for most IoT and RF applications
|
|
High compatibility
|
Vertical polarization supports consistent performance
|
|
Reliable beamwidth
|
360° horizontal and 45±3° vertical for flexible positioning
|
|
Durable connector
|
SMA male design helps ensure a secure fit with IoT gear
|
|
Power handling
|
Supports up to 10W transmission power
|
|
Sturdy build
|
Copper with rubber housing for long-lasting outdoor use
|
|
All-weather performance
|
Operates from -40°C to +65°C and resists humidity <95%
|
|
Wind resistant
|
Withstands speeds up to 36.9m/s
|
|
Compact and light
|
200mm length and 25g for easy portability
|
|
Sleek finish
|
Compact black design suits mobile or fixed setups
|
RF Performance: 2 dBi Gain, Low VSWR & 360° Coverage
This antenna’s RF design focuses on balance and consistency. Moderate gain helps avoid overly narrow coverage, while low VSWR improves antenna-to-radio matching by reducing reflected energy. For Meshtastic and LoRa nodes, that means more predictable link behavior as node position and signal paths change.
Connector & Compatibility
The antenna uses an SMA male connector for straightforward integration with compatible external antenna ports. It is suitable for LoRa, Meshtastic, and other IoT devices designed for removable antennas, making it easier to use in portable builds, enclosed nodes, and field deployments.
Best Practices for Flexible Whip Antenna Placement
-
Place it higher when possible to reduce obstruction from nearby objects.
-
Leave space around the antenna instead of mounting it flush against surfaces.
-
Avoid strain at the connector to maintain a stable physical connection.
Use Case Examples for Flexible Whip Antenna for Meshtastic
The antenna enhances wireless performance for field operations, DIY projects, and mobile IoT deployments, ensuring stable communication in demanding environments.
Use Case #1: Trail Monitoring Node
A field tester replaced a stock antenna after frequent packet loss on a wooded trail. Baseline success was 71%. After fitting this whip, three repeat walks reached 89%. Logged via Meshtastic hops, yield stayed 5/5 builds.
Use Case #2: Enclosure Upgrade for a Farm Sensor
On a farm gateway, signal drops appeared once the radio was boxed. After switching to this antenna, RSSI improved by 6dBm and message delivery rose from 78% to 93% in two-day tests. Output stayed repeatable across 12 units.
Why Choose This 915MHz Flexible Whip Antenna for Your LoRa or Meshtastic Setup?
This antenna is engineered for devices operating with LoRa modulation and other sub-GHz wireless protocols. Its 20cm radiator and true 2 dBi gain offer more consistent link reliability than PCB antennas or ultra-compact stubbies.
Whether used on Meshtastic nodes, portable field trackers, or general-purpose IoT hardware, this antenna delivers balanced omnidirectional coverage, making it well-suited for outdoor or mobile applications where stable communication is essential.
Compared to low-cost marketplace whips, this flexible whip antenna offers better tuning accuracy, more durable construction, and more consistent performance across 868 and 915 MHz bands.
How to Get Started with Flexible Whip Antenna for Meshtastic
