Phidget FlexiForce Adapter FSR to Analog Input - 1120_0

Description

Phidget FlexiForce Adapter FSR to Analog Input - 1120_0

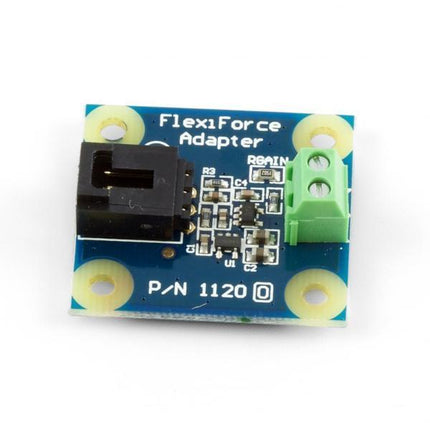

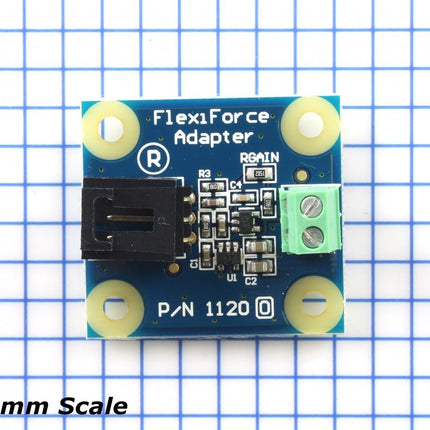

The Phidget FlexiForce adapter allows you to connect one FlexiForce FSR to an Analog Input or VINT Hub port.

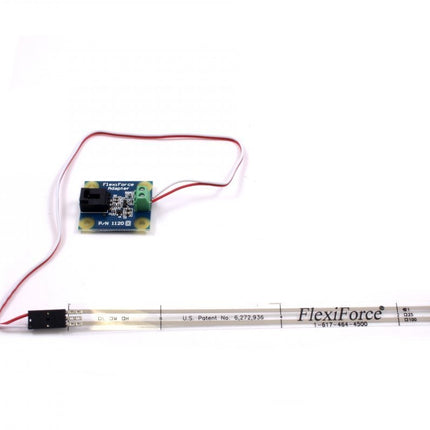

The Phidget 1120 FlexiForce Adapter makes it easy to interface a Tekscan FlexiForce force sensor to your PC. Just use the cable included with the adapter. Also included is a round plastic disc to help focus the force directly onto the sensing pad.

The "active sensing area" is a 0.375” diameter circle at the end of the sensor.

Comes packaged with

Product Specifications

Sensor Properties
Controlled By VoltageRatio Input
Sensor Output Type Ratiometric
Electrical Properties
Supply Voltage Min 4.5 V DC
Supply Voltage Max 5.3 V DC
Current Consumption Min 2.6 mA
Current Consumption Max 3.2 mA
Current Consumption (Overload) 10.9 mA
Measurement Error Max ± 5 %
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 105 °C



Read more

Phidget FlexiForce Adapter FSR to Analog Input - 1120_0

Product form
Free pickup in our shop(s)

SKU: 1120_0

$39.00 $19.00 Excl. GST

$19.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
