3/8" Flow Meter - Atlas Scientific

Description

Description


3/8" Flow Meter - Atlas Scientific

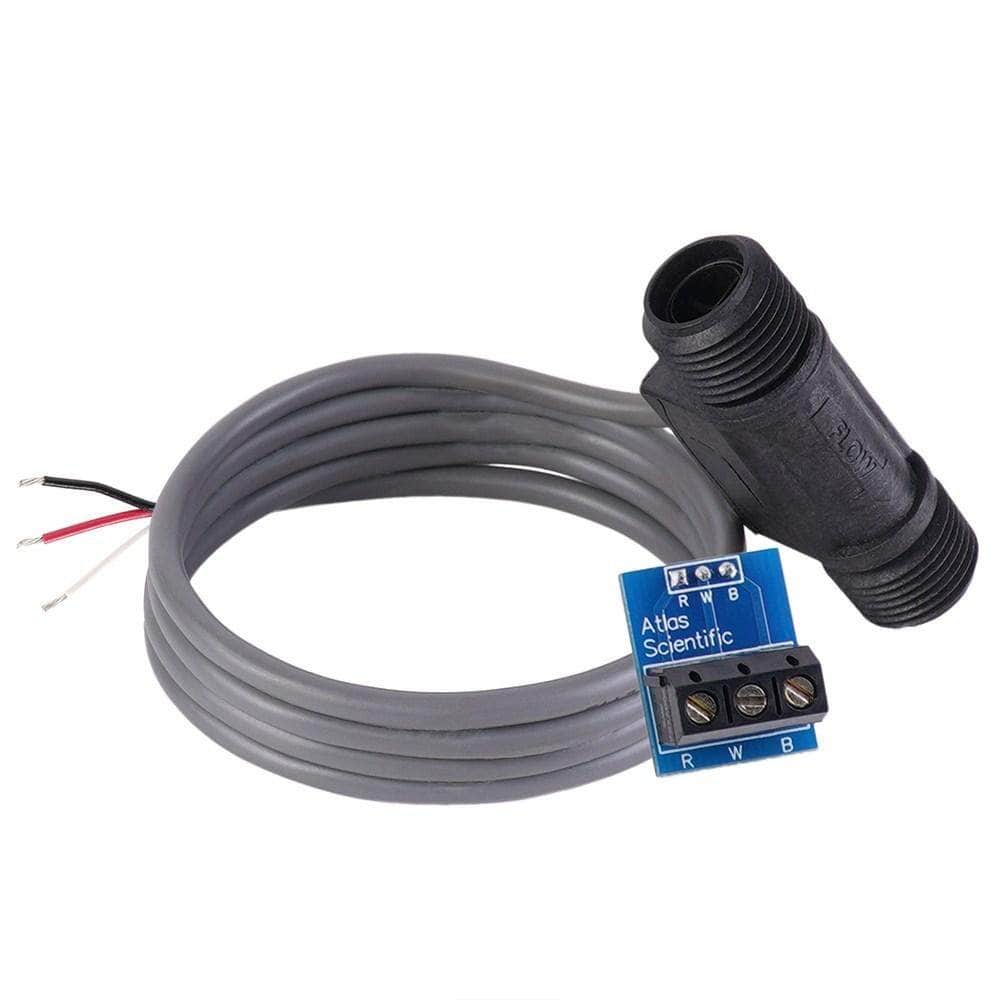

• 1 3/8″ Male NPT Flow Meter – 760 mL to 7.6 L / min
• 1 Flow Connector Board (soldering required)
• Food Safe
• Gasoline Safe
• Diesel Safe
• Kerosene Safe
• Accurate to ± 2%
• Material Glass Reinforced PPO (Noryl)

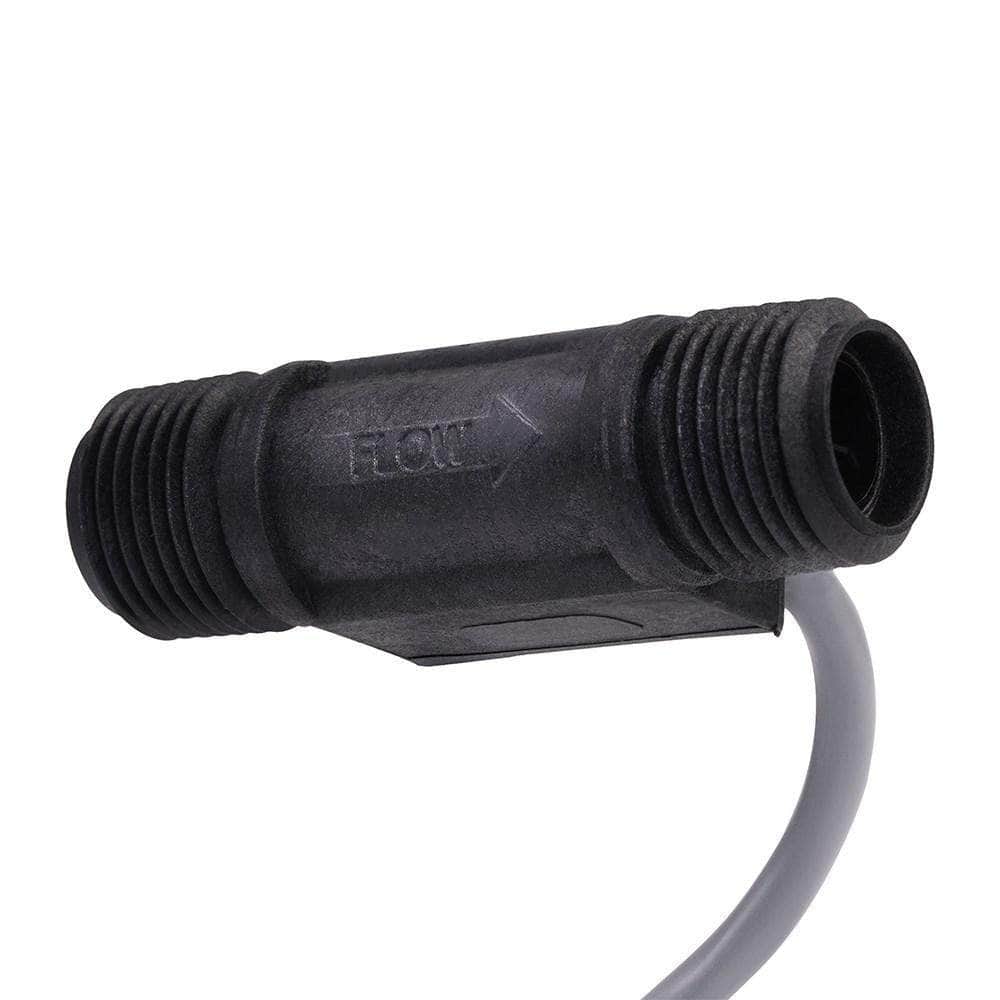

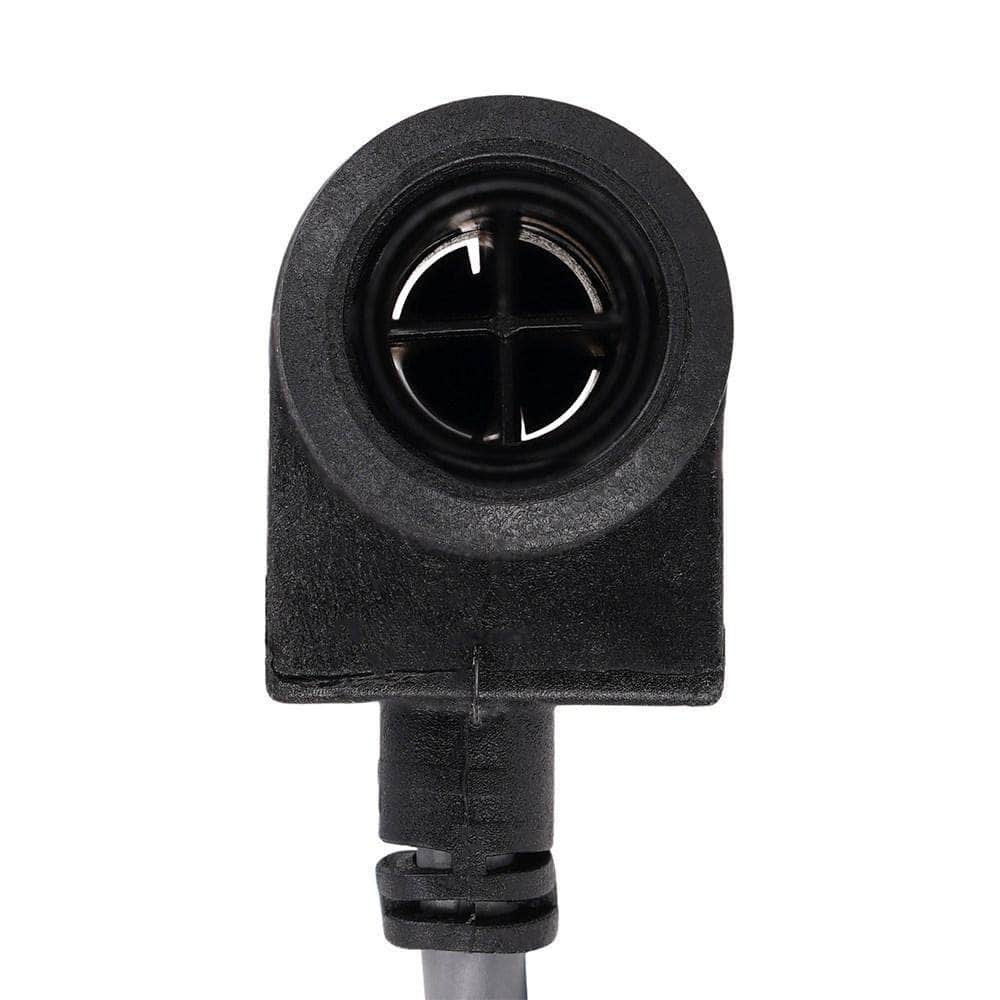

• 3/8” Male NPT Input/Output
• Each pulse is equal to 367 μL
• Minimum flow rate 760 mL / min (0.2 GPM)
• Maximum flow rate 7.6 L / min (2 GPM)
• Weighs 37.6g
• Operating temperature -20º C to 80º C (-4º F to 176º F)
• Max operating pressure 1,379 KPA (200 PSI)
• Max viscosity 81 SSU

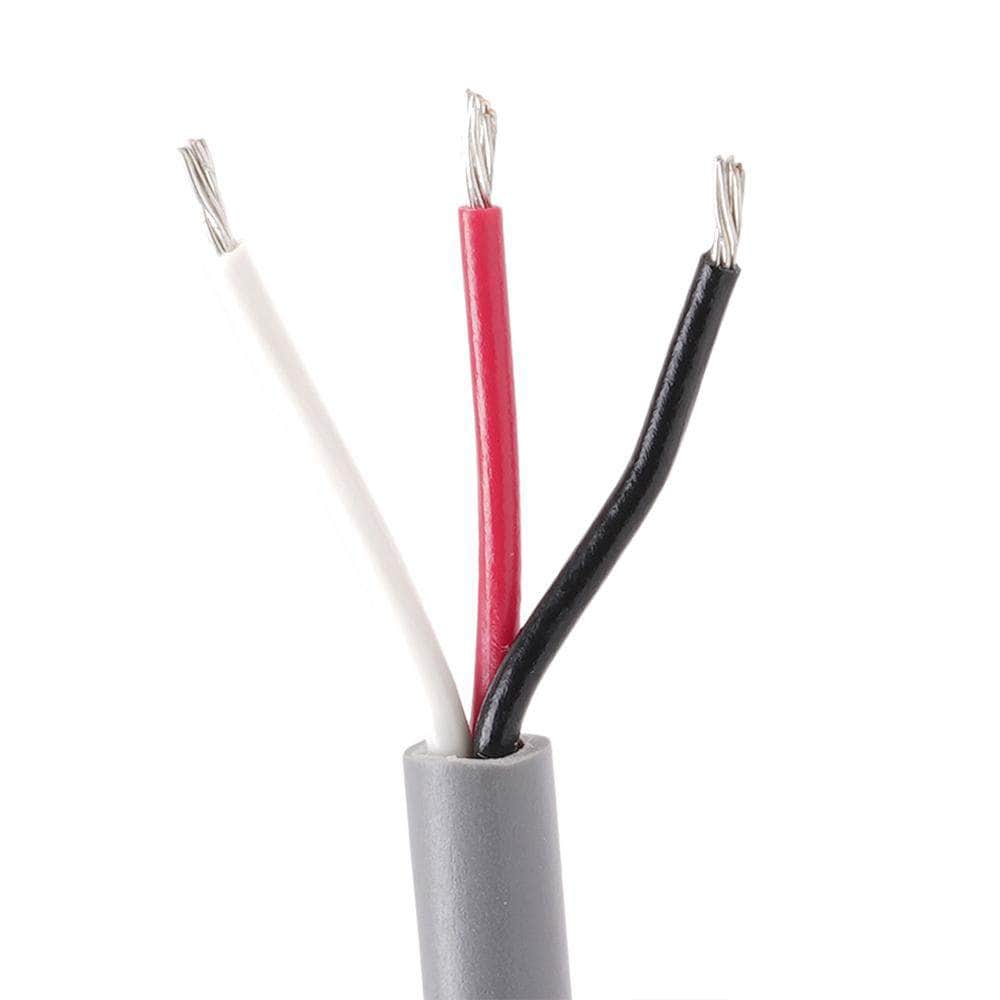

• 71.1cm (28”) long 3 lead cable
• Dimensions 16mm X 56.5mm (0.62″ X 2.22″)

• Reads flow rate per second, minute, hour and total flow.
• Works with any off the shelf pulsed DC flow meter regardless
   of manufacture
• Works with any DC pulse per volume flow meter
• Works with any DC pulse frequency to volume flow meter
• Programmable with up to 16 integer or floating point K factors
• On the fly linear interpretation between K factors
  for maximum accuracy
• Visual display indicating real-time turbine rotation
• 1K, 10k or 100k on-board pull-up or pull-down resistors
  (for flow meters that require external pull-up or pull-down)
• Comes pre-programmed with 4 different Atlas Scientific
   flow meters
• Data format is ASCII

Data protocol
• UART asynchronous serial connectivity
• (RX/TX voltage swing 0-VCC)
• Operating voltage: 3.3V to 5

Sleep mode power consumption
• 2.1mA at 3.3V

Downloads

3/8" Flow Meter - Atlas Scientific

Product form

SKU: Sen-206F

$279.00 $259.00 Excl. GST

$259.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
    Description

    Description


    3/8" Flow Meter - Atlas Scientific

    • 1 3/8″ Male NPT Flow Meter – 760 mL to 7.6 L / min
    • 1 Flow Connector Board (soldering required)
    • Food Safe
    • Gasoline Safe
    • Diesel Safe
    • Kerosene Safe
    • Accurate to ± 2%
    • Material Glass Reinforced PPO (Noryl)
    • 3/8” Male NPT Input/Output
    • Each pulse is equal to 367 μL
    • Minimum flow rate 760 mL / min (0.2 GPM)
    • Maximum flow rate 7.6 L / min (2 GPM)
    • Weighs 37.6g
    • Operating temperature -20º C to 80º C (-4º F to 176º F)
    • Max operating pressure 1,379 KPA (200 PSI)
    • Max viscosity 81 SSU
    • 71.1cm (28”) long 3 lead cable
    • Dimensions 16mm X 56.5mm (0.62″ X 2.22″)

    • Reads flow rate per second, minute, hour and total flow.
    • Works with any off the shelf pulsed DC flow meter regardless
       of manufacture
    • Works with any DC pulse per volume flow meter
    • Works with any DC pulse frequency to volume flow meter
    • Programmable with up to 16 integer or floating point K factors
    • On the fly linear interpretation between K factors
      for maximum accuracy
    • Visual display indicating real-time turbine rotation
    • 1K, 10k or 100k on-board pull-up or pull-down resistors
      (for flow meters that require external pull-up or pull-down)
    • Comes pre-programmed with 4 different Atlas Scientific
       flow meters
    • Data format is ASCII

    Data protocol
    • UART asynchronous serial connectivity
    • (RX/TX voltage swing 0-VCC)
    • Operating voltage: 3.3V to 5

    Sleep mode power consumption
    • 2.1mA at 3.3V
