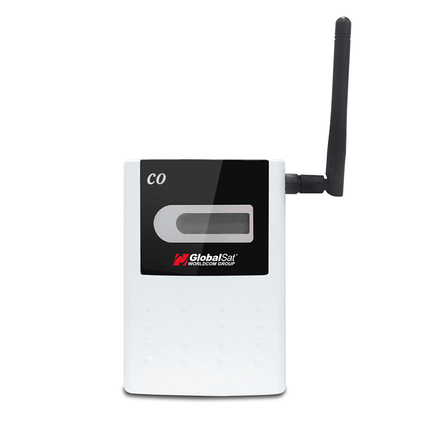

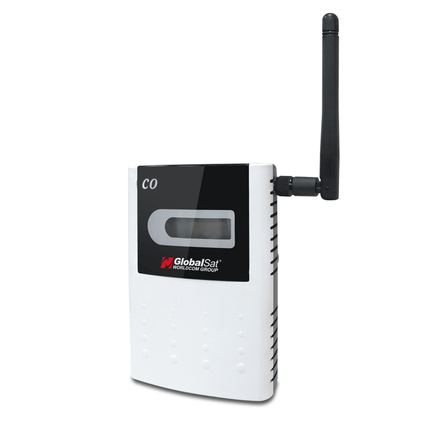

Globalsat LS-112P LoRaWAN Compliant CO, Temperature & Humidity Sensor
LS-112P is designed to measure Carbon Monoxide (CO), Temperature and Humidity by LoRaWAN long-range and low-power wireless connectivity. It is integrated LoRaWAN wireless technology, CO sensor know-how and high-performance MCU solution for various IoT markets usage. With calibrated CO sensor module and compensated Temperature/ Humidity sensor integration, the data is ready for use. It is perfect for monitoring air quality in schools, office buildings, greenhouses, factories, hotels, hospitals, transportation lines and anywhere high levels of carbon dioxide are generated.
Note: This is a certified module by GlobalSat within the Australian ISM band 915-928MHz. It is preconfigured and tested on channel 0-7, all other channels (8-63) are disabled, but can be enabled using a configuration tool.
Features
- LoRaWAN™ compliant
- High Receiver Sensitivity and long range solution
- Integrated with calibrated CO sensor
Accuracy: ± 5% or ±20ppm
Range: 0 ~ 500ppm
- Integrated with Compensated Temp/RH sensor
- Wide range DC power-in, 8~24V /or Micro-USB DC power-in, 5V
- Display CO concentration, Temp/ RH
- FCC/ CE/ Telec certified
Specifications
| LoRa® Module |
GlobalSat LM-130 LoRaWAN™ Module |
| Frequency |
Australian ISM band 915-928MHz |
| LoRa® Antenna |
External Omni Antenna
824~960 MHz 2dBi SMA Male connector |
| Sensitivity |
-132 dBm @ 980bps |
| Tx Power |
Up to 100mW |
| Sensing Element |
CO: Electrochemical
Temperature & Humidity: CMOS sensor
|
| Response Time |
CO: < 30 sec. (90%)
Temperature: min. 3 sec.；max. 30sec. atτ63%
Humidity: < 8 sec. atτ63%
|
| Accuracy (at 25℃) |
CO: ± 5% or ±20ppm
Temperature: ±0.3℃
Humidity: ±3 %RH
|
| Repeatability |
CO: < ± 5%
Temperature: ±0.1℃
Humidity: ±0.1 %RH
|
| Zero Drift |
CO: < 5 % /yr.
Temperature: < 0.04 ℃/yr
Humidity: < 0.5 %RH/yr
|
| Measurement Range* |
CO: 0 ~ 500ppm
Temperature: -40 ~ +125℃
Humidity: 0 ~ 95 %RH
|
| Pressure Dependence |
CO: 800 to 1200 mbar |
| Operation Temperature |
-10 ~ +50 ℃ |
| Operation Humidity |
0 ~ 95%RH, Non-condensing |
| Storage Temperature |
Recommended Storage Temp : 0 ~ +20 ℃ |
| Warm-up Time |
≤ 1 min. (at full specs ≤ 15 minutes) |
| Dimension |
Wall-mount: 113.57(H) x 80(W) x 28.79(D) mm |
| Weight |
103 ±2g |
| Case Material |
ABS |
| Accessories |
LoRa® Antenna (External Omni Antenna) x 1
USB Adaptor Cable (optional) |
