Description

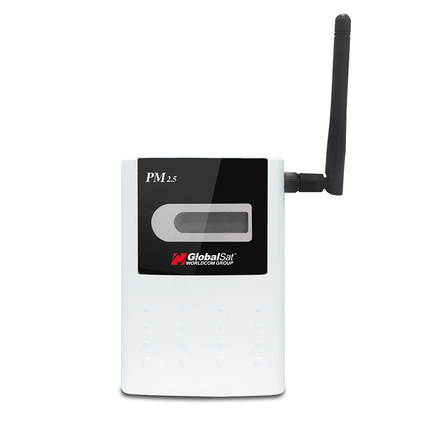

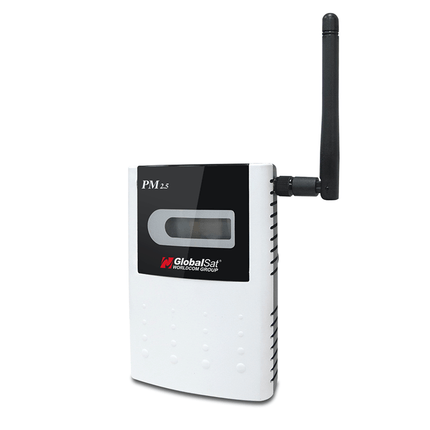

Globalsat LS-113P LoRaWAN Compliant PM2.5, Temperature & Humidity Sensor
LS-113P series are designed to measure Particle, Temperature and Humidity by LoRa® long-range and low-power wireless connectivity. It is integrated LoRaWAN wireless technology, Laser dust (PM2.5) sensor knowhow and high-performance MCU solution for various IoT markets usage. With calibrated dust (PM2.5) sensor module and compensated Temperature/ Humidity sensor integration, the data is ready for use. It is perfect to detect the dust in the air, like air purifier, air conditioner and air monitor.
Note: This is a certified module by GlobalSat within the Australian ISM band 915-928MHz. It is preconfigured and tested on channel 0-7, all other channels (8-63) are disabled, but can be enabled using a configuration tool.
Features
- LoRaWAN™ compliant
- High Receiver Sensitivity and long range solution
- Integrated with calibrated Dust Particles sensor
Range: 0-500 μg/m3
- Integrated with Compensated Temp/ RH sensor
- Wide range DC power-in, 8~24V /or Micro-USB DC power-in, 5V
- Display PM2.5 concentration, Temp/ RH
- FCC/ CE/ Telec certified
Specifications
| LoRa® Module |
GlobalSat LM-130 LoRaWAN™ Module |
| Frequency |
Australian ISM band 915-928MHz |
| LoRa® Antenna |
External Omni Antenna
824~960 MHz 2dBi SMA Male connector |
| Sensitivity |
-132 dBm @ 980bps |
| Tx Power |
Up to 100mW |
| Sensing Element |
Dust: laser light scattering principle
Temperature & Humidity: CMOS sensor
|
| Response Time |
Dust: < 10 sec
Temperature: min. 3 sec.；max. 30sec. atτ63%
Humidity: < 8 sec. atτ63%
|
| Accuracy (at 25℃) |
Temperature: ±0.3℃
Humidity: ±3 %RH
|
| Repeatability |
Dust: ±10%@100~500 μg/m3, ±10μg/m3@0~100μg/m3
Temperature: ±0.1℃
Humidity: ±0.1 %RH
|
| Zero Drift |
Temperature: < 0.04 ℃/yr
Humidity: < 0.5 %RH/yr
|
| Measurement Range* |
Dust: 0-500 μg/m3
Temperature: -40 ~ +125℃
Humidity: 0 ~ 95 %RH
|
| Operation Temperature |
-10 ~ +60 ℃ |
| Operation Humidity |
0 ~ 95%RH, Non-condensing |
| Storage Temperature |
-10 ~ +60 ℃ |
| Warm-up Time |
≤ 1 min. (at full specs ≤ 15 minutes) |
| Dimension |
Wall-mount: 113.57(H) x 80(W) x 28.79(D) mm |
| Weight |
129 ±2g |
| Case Material |
ABS |
| Accessories |
LoRa® Antenna (External Omni Antenna) x 1
USB Adaptor Cable (optional) |
Product Datasheet link.
Certification link
Link to Download AT Commands for the Sensor Node
Link to purchase USB Config Cable
