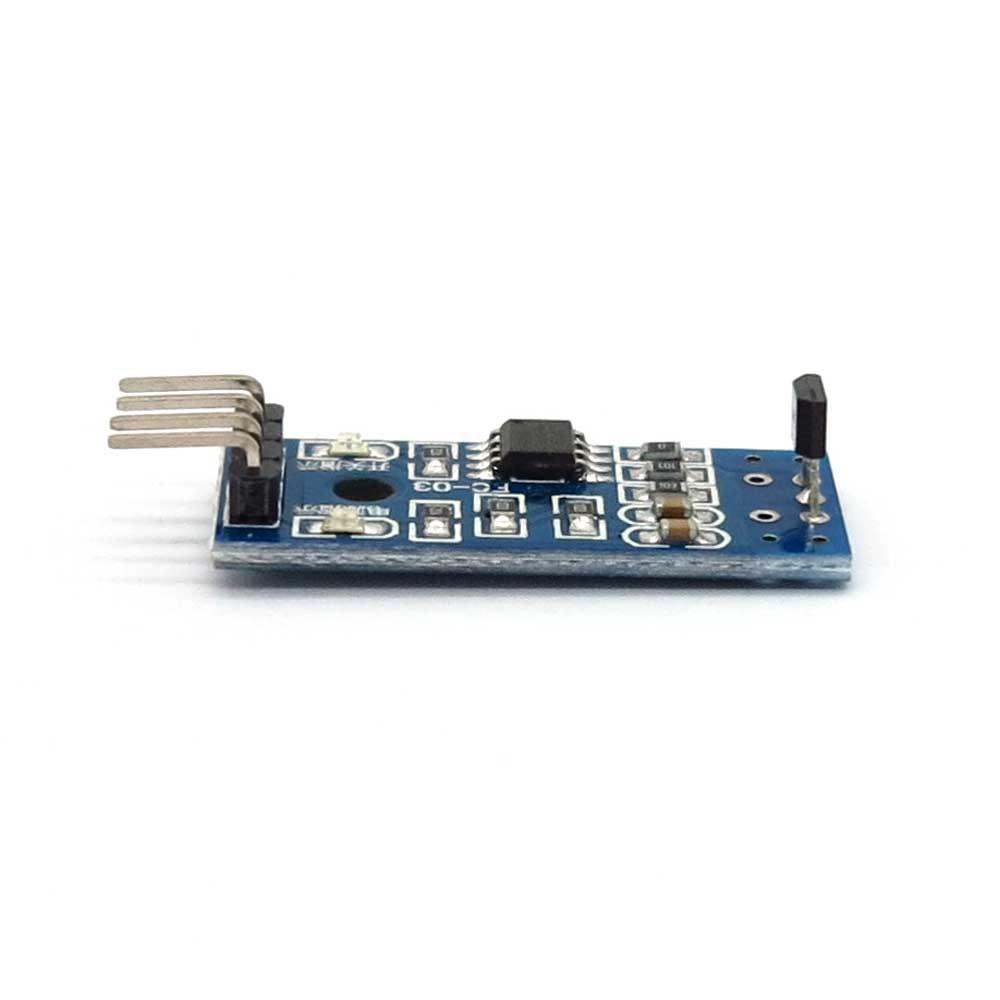

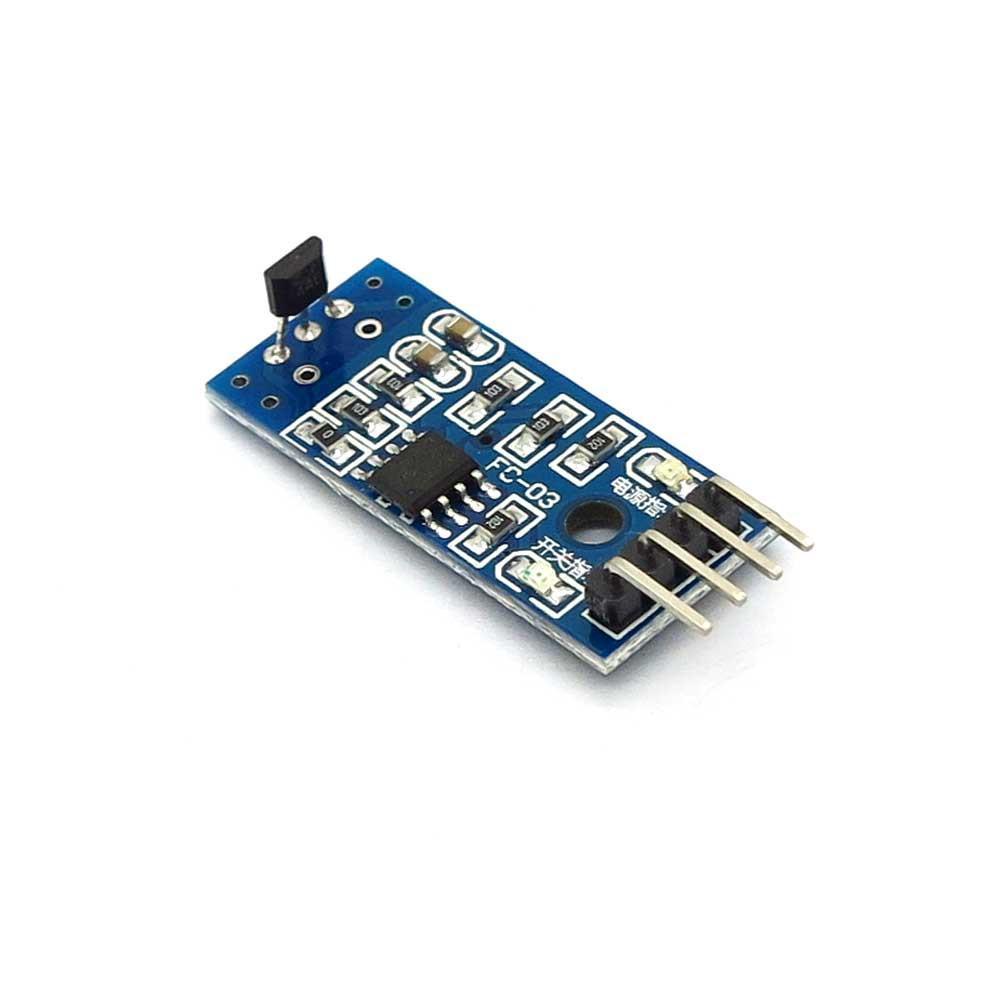

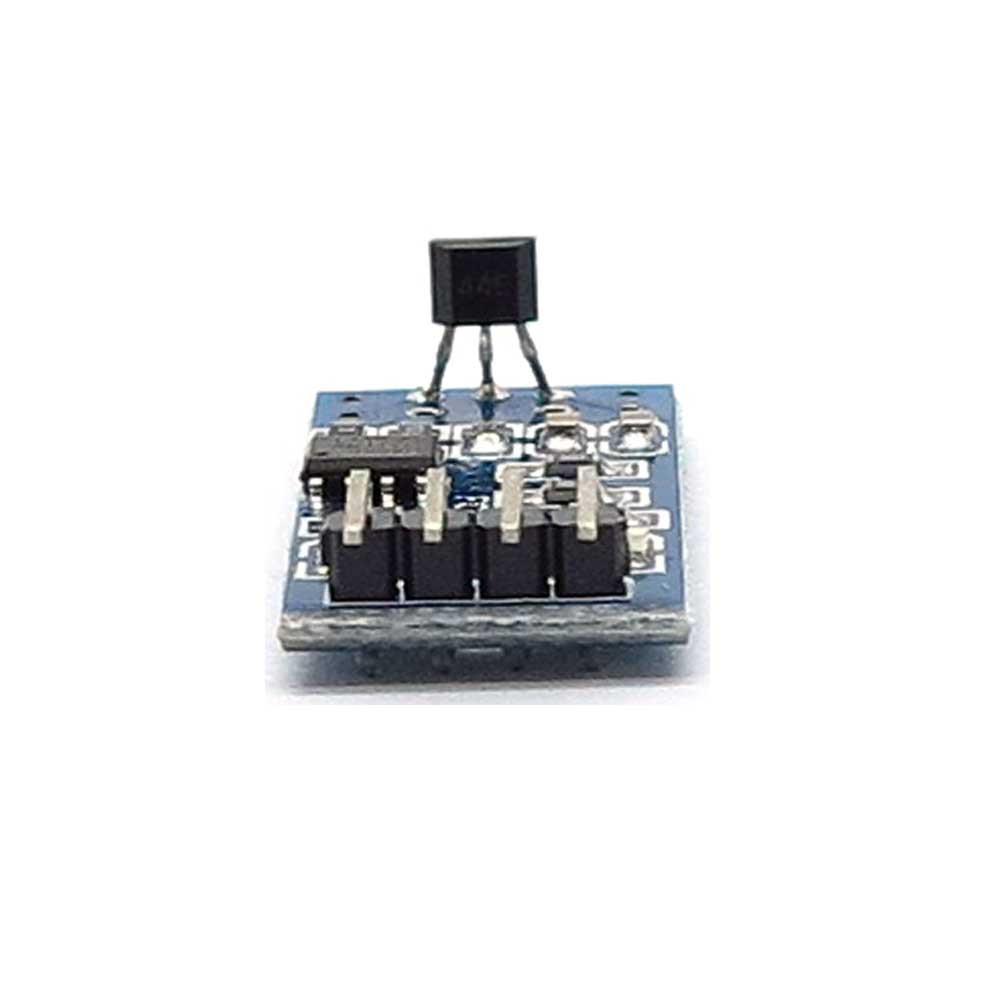

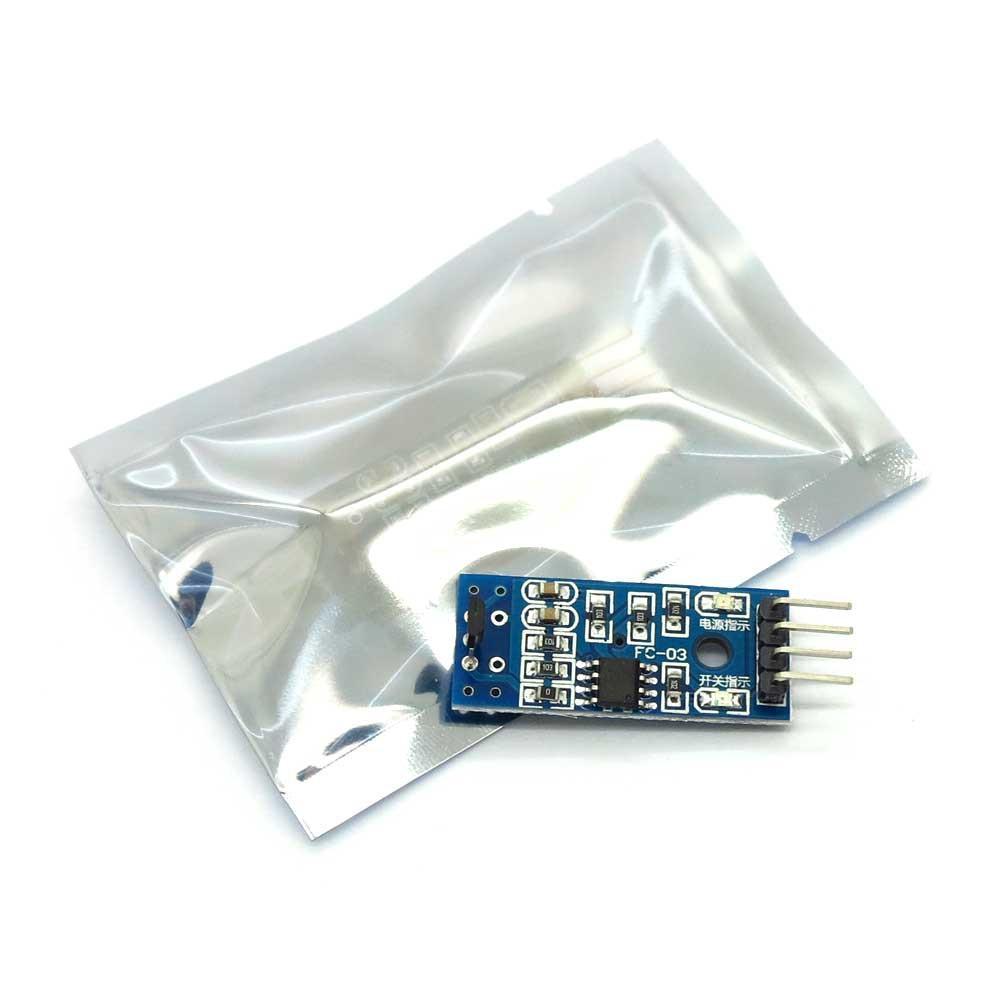

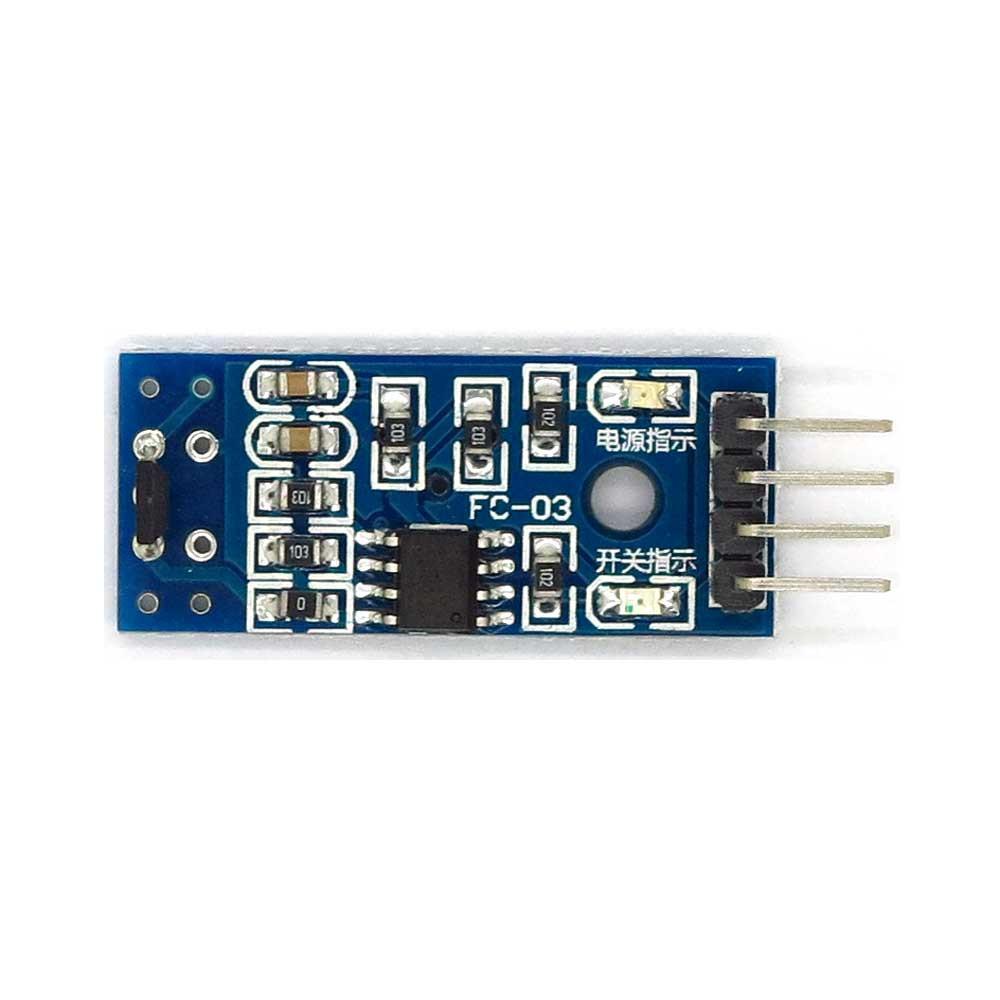

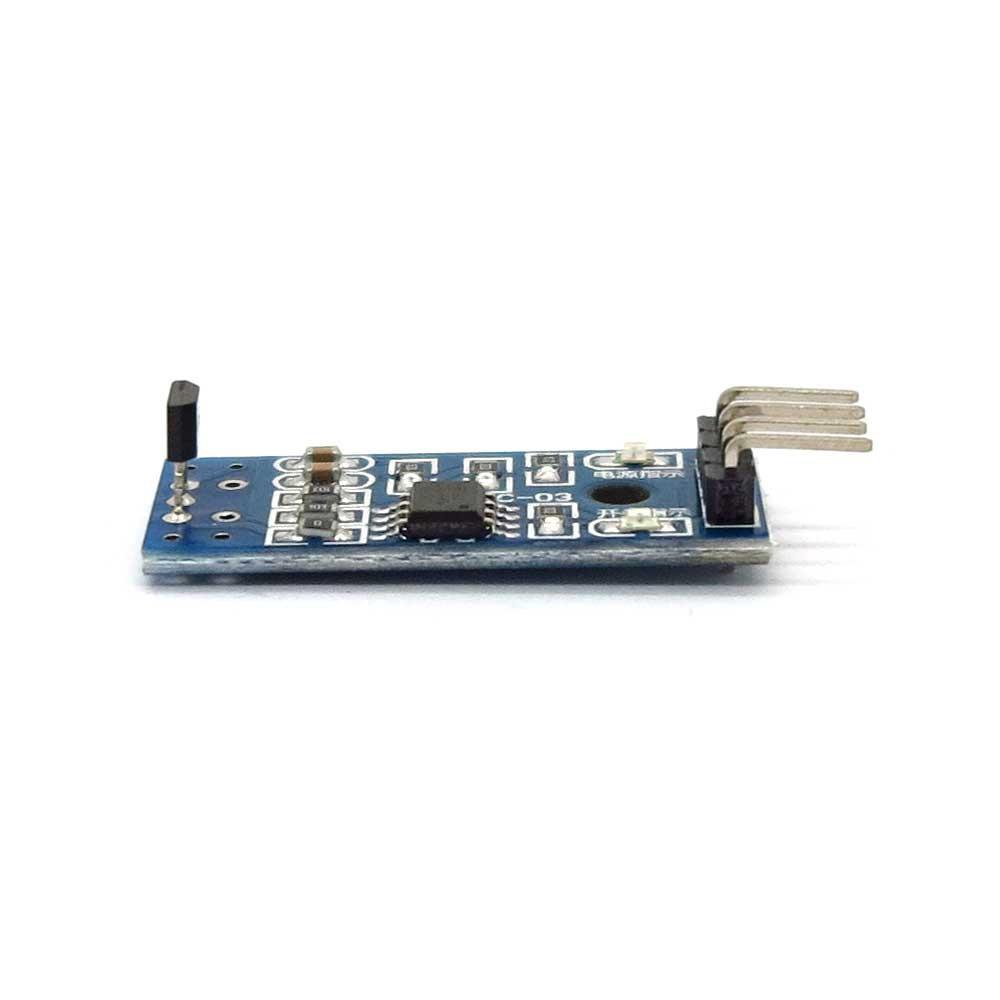

Hall Sensor Velocity Measurement And Counting Sensor 3144E

Description

Hall Sensor Velocity Measurement And Counting Sensor 3144E

Hall sensor module is used for magnetic field detection, which adopts 3144E Hall Switch Sensor.

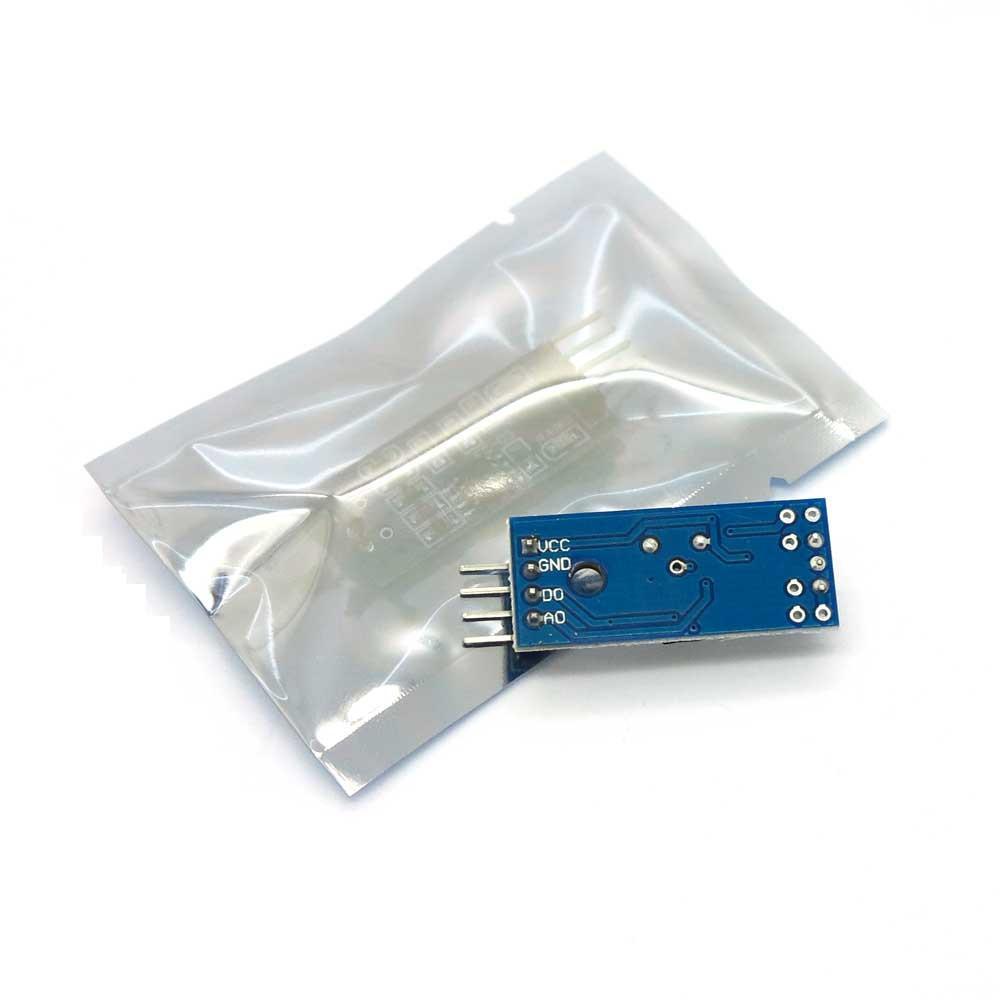

Module Interface Description

  • VCC: connect to positive 3.3-5V
  • GND: connect to negative
  • DO: Digital signal output on module, outputs low level when magnetism available
  • AO: Hall real-time voltage output

There are two outputs on the module

  • AO, Hall real-time output
  • DO, the Hall signal output after being regulated by the comparator

Module features

  • Small size: 32mm X 14mm
  • With a 3mm mounting screw hole
  • You can use 3-5.5v DC power supply
  • With Hall real-time output signal
  • More stable output signal after being regulated by comparator
  • Comparator output capability: 16mA
  • With power indicator
  • With indicator for comparator output

Hall Sensor Velocity Measurement And Counting Sensor 3144E

Product form
Free pickup in our shop(s)

SKU: IM131122015

$15.00 $7.00 Excl. GST

$15.00 $7.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges

    Description

    Hall Sensor Velocity Measurement And Counting Sensor 3144E

    Hall sensor module is used for magnetic field detection, which adopts 3144E Hall Switch Sensor.

    Module Interface Description

    • VCC: connect to positive 3.3-5V
    • GND: connect to negative
    • DO: Digital signal output on module, outputs low level when magnetism available
    • AO: Hall real-time voltage output

    There are two outputs on the module

    • AO, Hall real-time output
    • DO, the Hall signal output after being regulated by the comparator

    Module features

    • Small size: 32mm X 14mm
    • With a 3mm mounting screw hole
    • You can use 3-5.5v DC power supply
    • With Hall real-time output signal
    • More stable output signal after being regulated by comparator
    • Comparator output capability: 16mA
    • With power indicator
    • With indicator for comparator output
