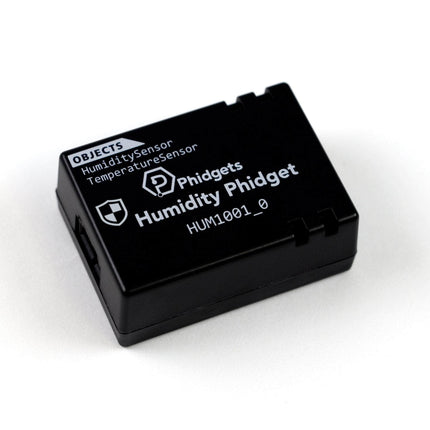

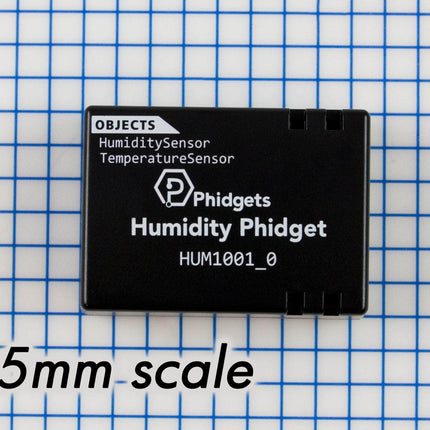

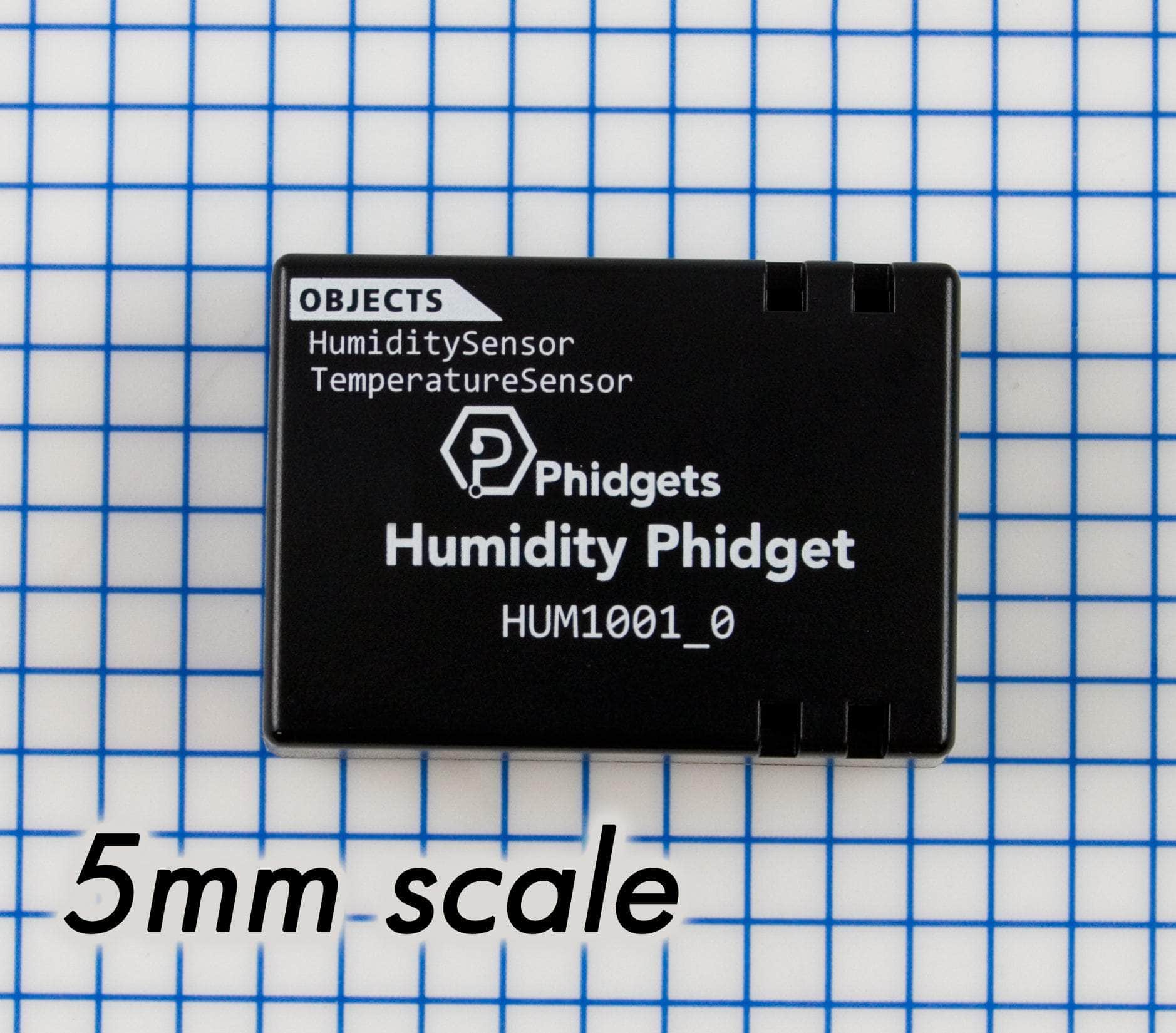

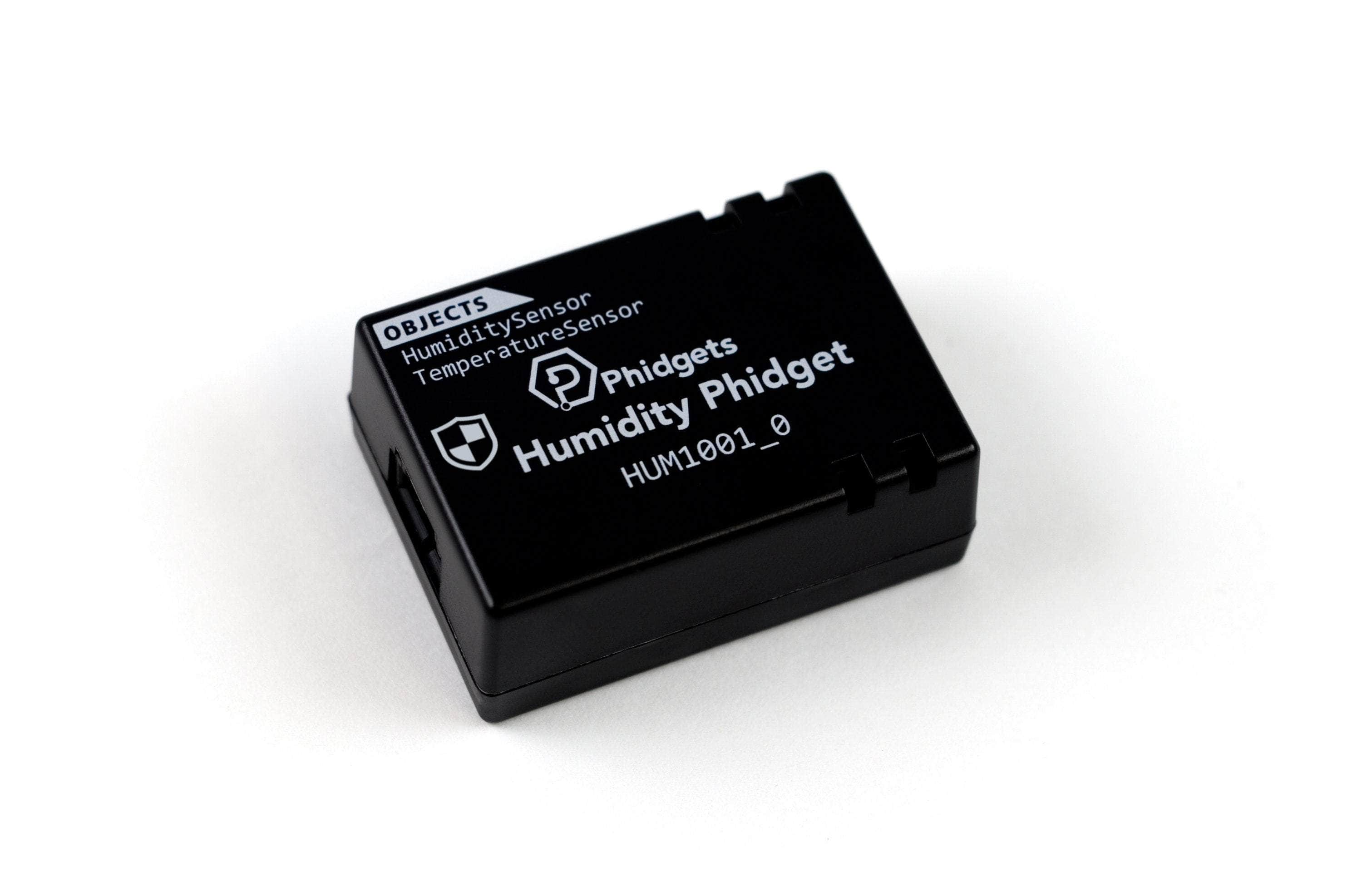

Humidity Phidget Sensor HUM1001

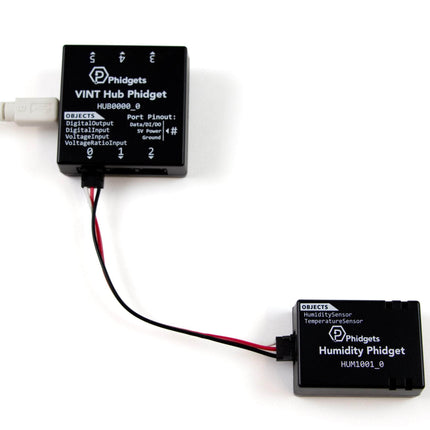

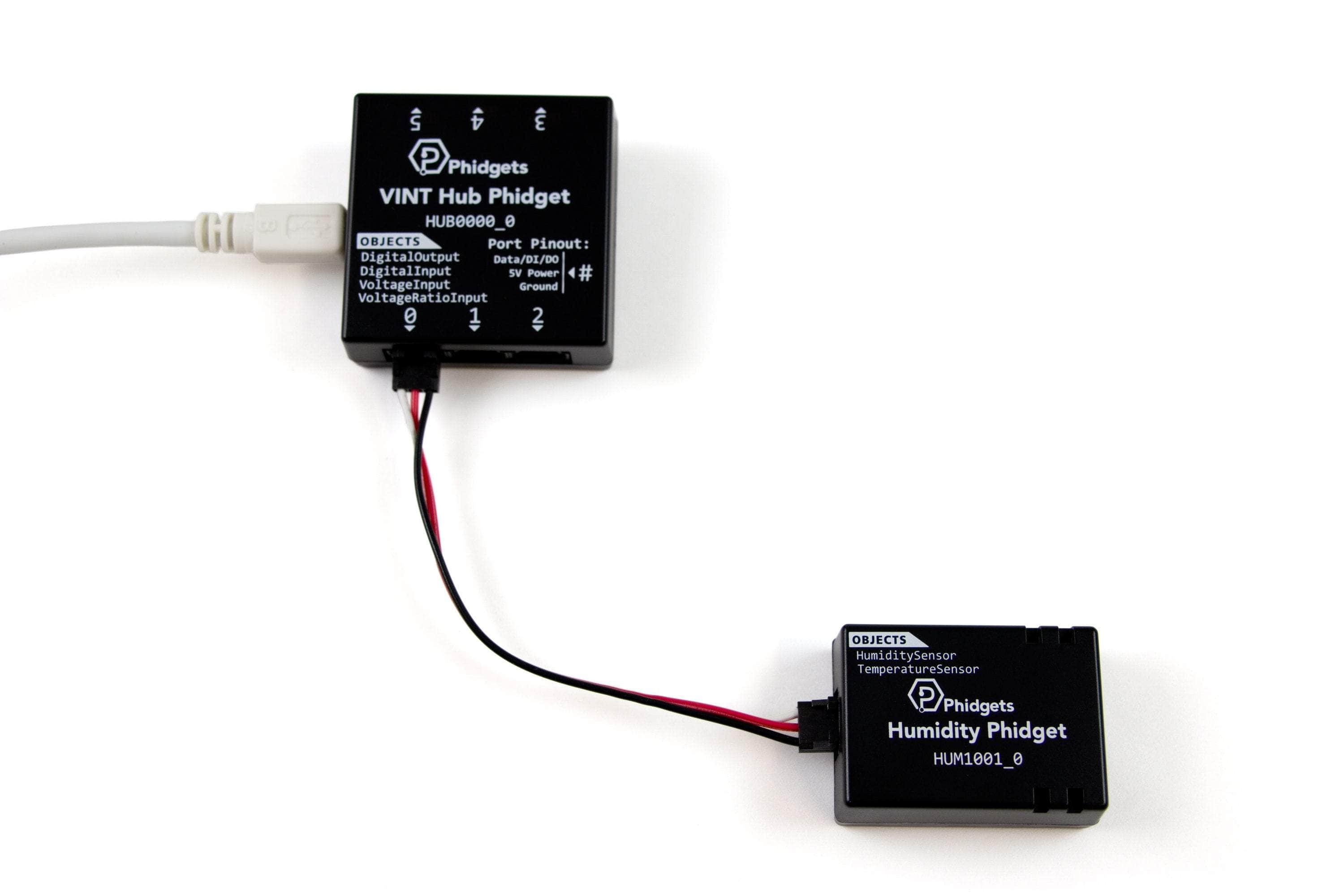

Measure relative humidity and air temperature, in non-condensing environments, with the HUM1001. This Phidget is useful for environmental controls and weather monitoring. This Phidget connects to your computer through a VINT Hub.
Features
Measure Relative Humidity from 0% to 100%
Measure Temperature from -40°C to +85°C
Retrieve data as often as every 500 milliseconds
Lower noise and higher accuracy than previous Phidgets humidity sensors
Product Specifications
| Sensor Properties |
| Sensor Type |
Humidity / Temperature |
| Controlled By |
VINT |
| VINT Communication Speed Max |
10 kbit/s |
| Humidity Sensor |
| Humidity Min |
0 %RH |
| Humidity Max |
100 %RH |
| Humidity Resolution |
0.01 %RH |
| Humidity Response Time Max |
10 s |
| Sampling Interval Min |
500 ms/sample |
| Sampling Interval Max |
60 s/sample |
| Humidity Error Max |
± 2 %RH |
| Temperature Sensor |
| Ambient Temperature Min |
-40 °C |
| Ambient Temperature Max |
85 °C |
| Temperature Error Typical (At 25°C) |
± 0.2 °C |
| Temperature Error Max |
± 1 °C |
| Temperature Resolution |
0.01 °C |
| Sampling Interval Max |
60 s/sample |
| Sampling Interval Min |
500 ms/sample |
| Electrical Properties |
| Current Consumption Max |
100 μA |
| Physical Properties |
| Operating Temperature Min |
-40 °C |
| Operating Temperature Max |
85 °C |
