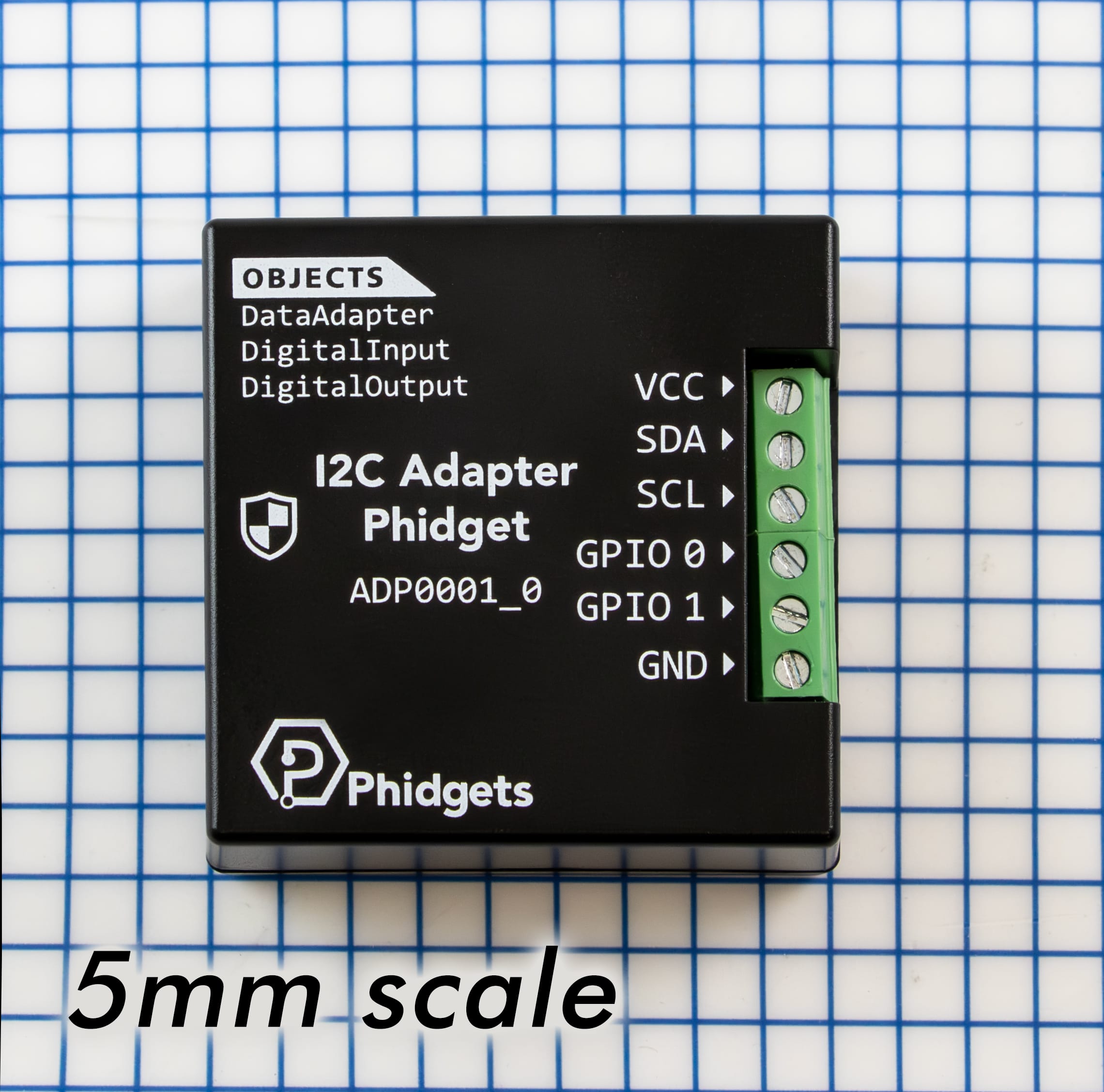

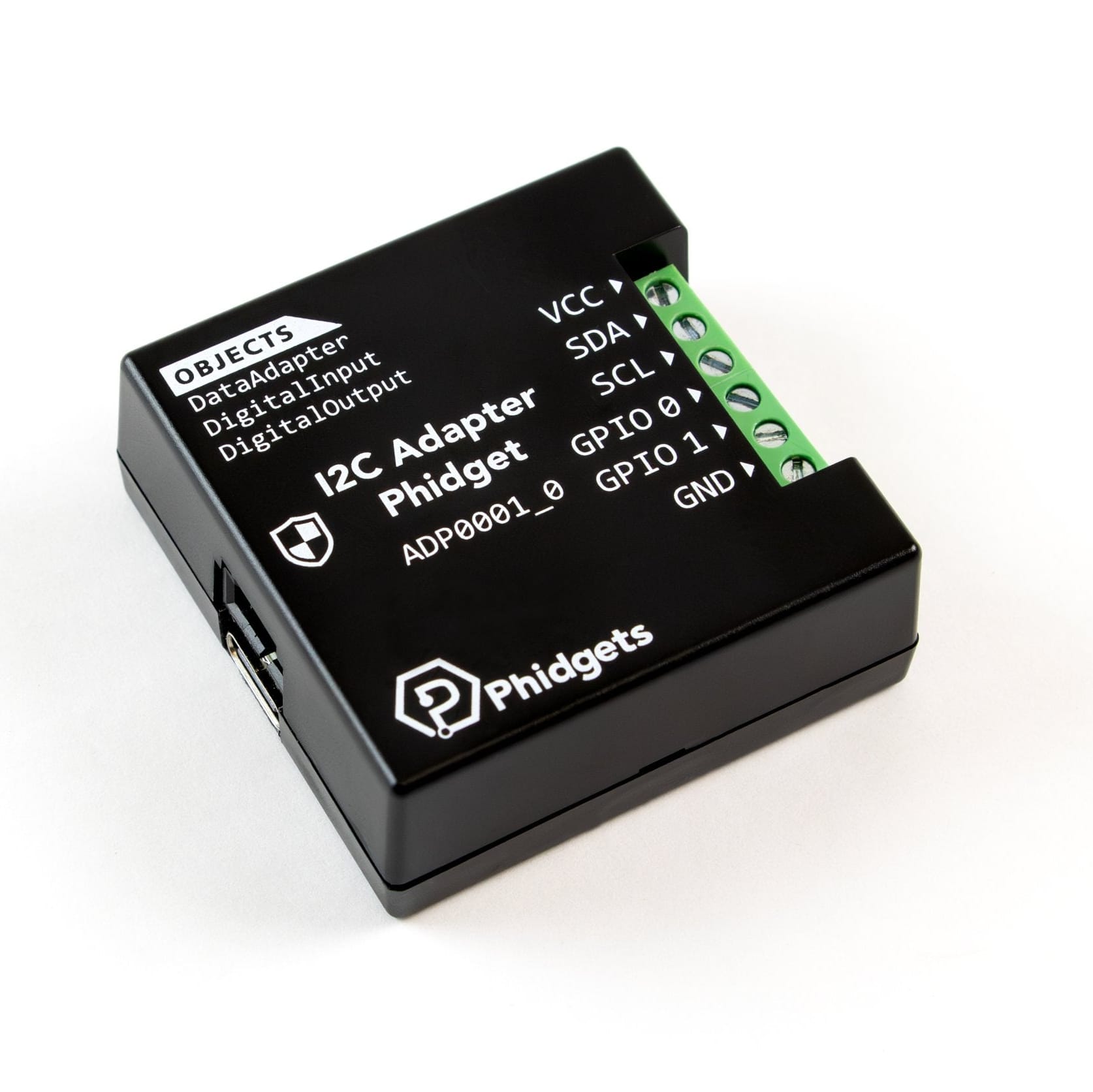

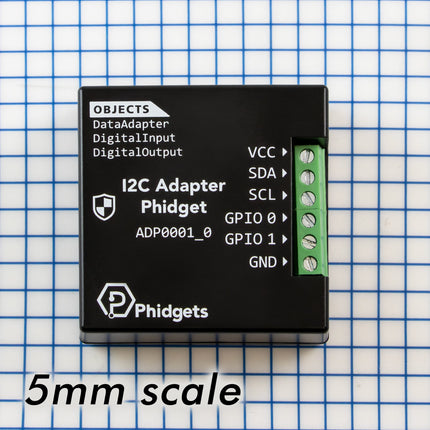

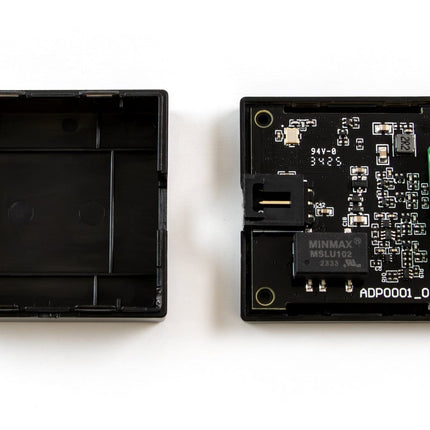

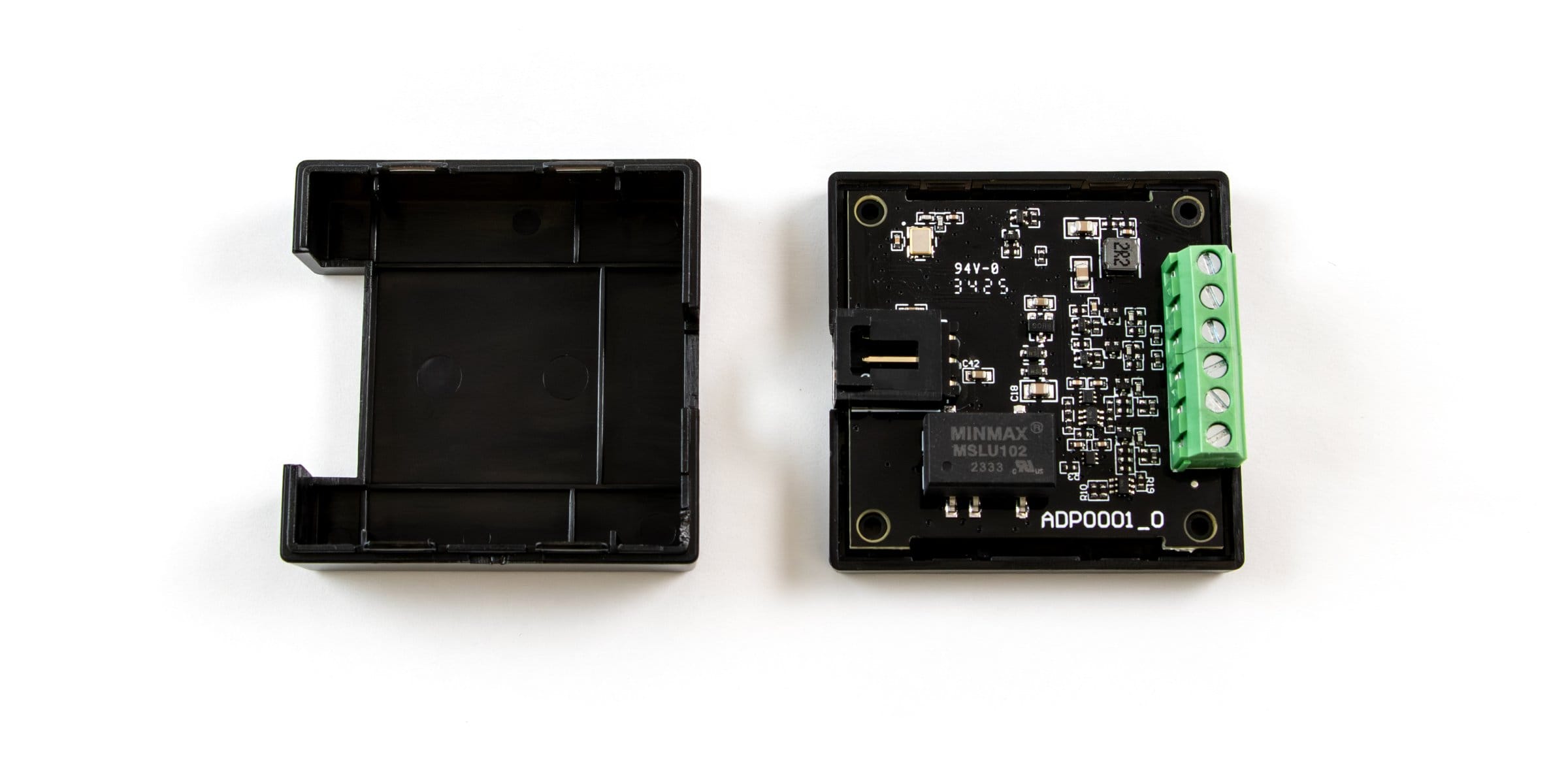

I2C Adapter Phidget - ADP0001

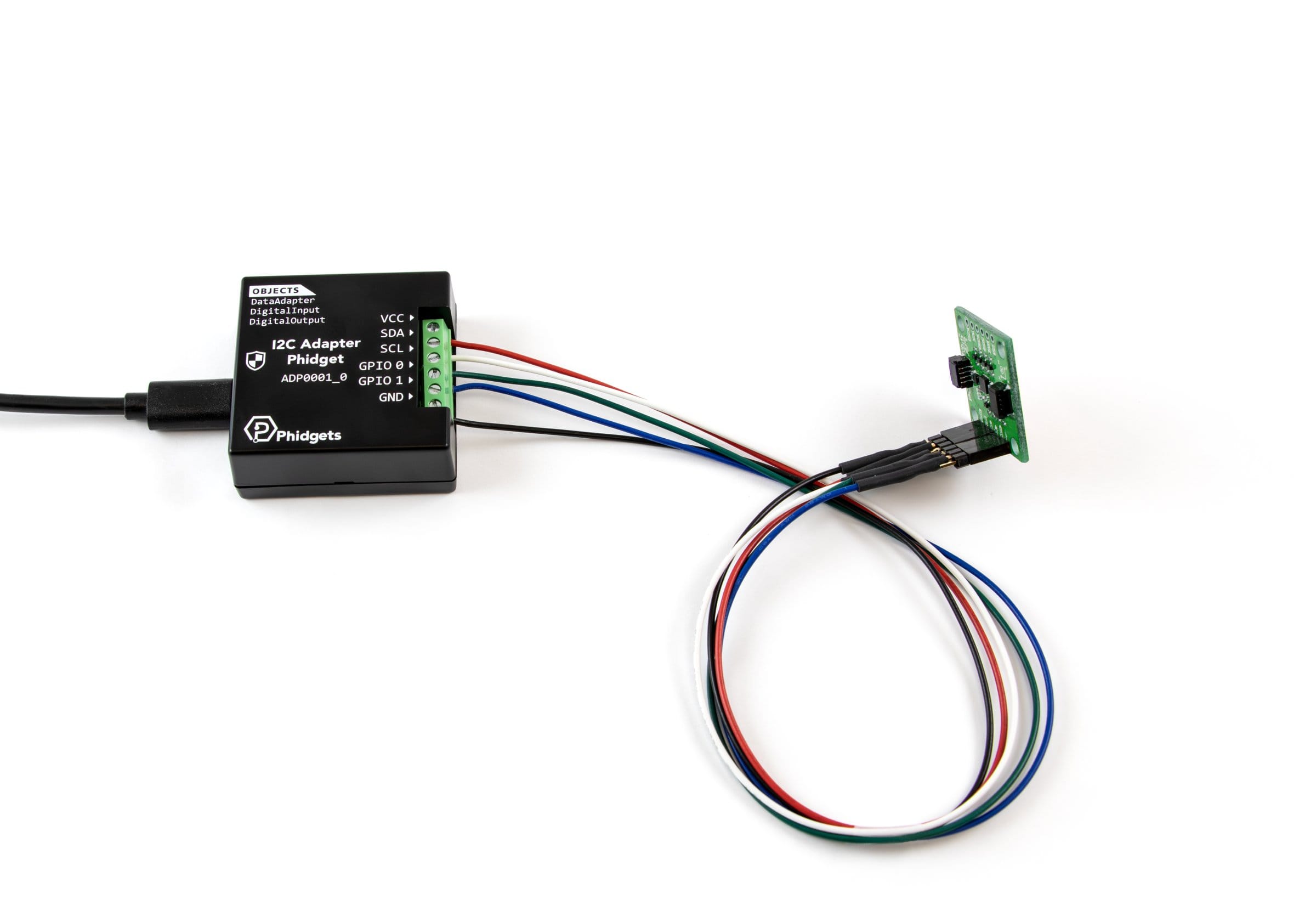

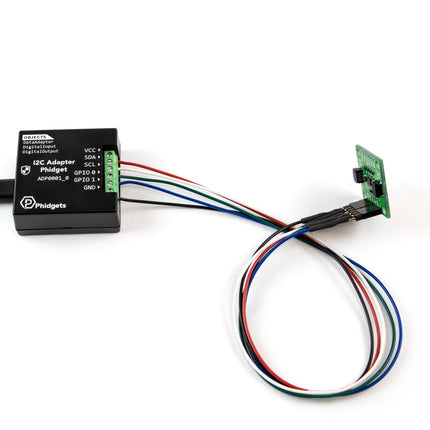

The I2C Adapter Phidget is an I2C controller that makes it easy to integrate I2C devices into your Phidgets application.
This controller offers software-configurable communication frequencies and voltage levels. It also includes two general-purpose input/output terminals that can each be configured as a Digital Input or a Digital Output.

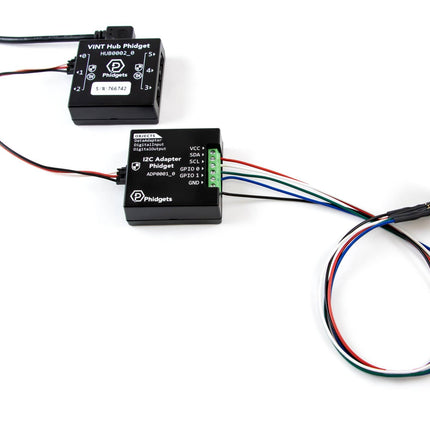

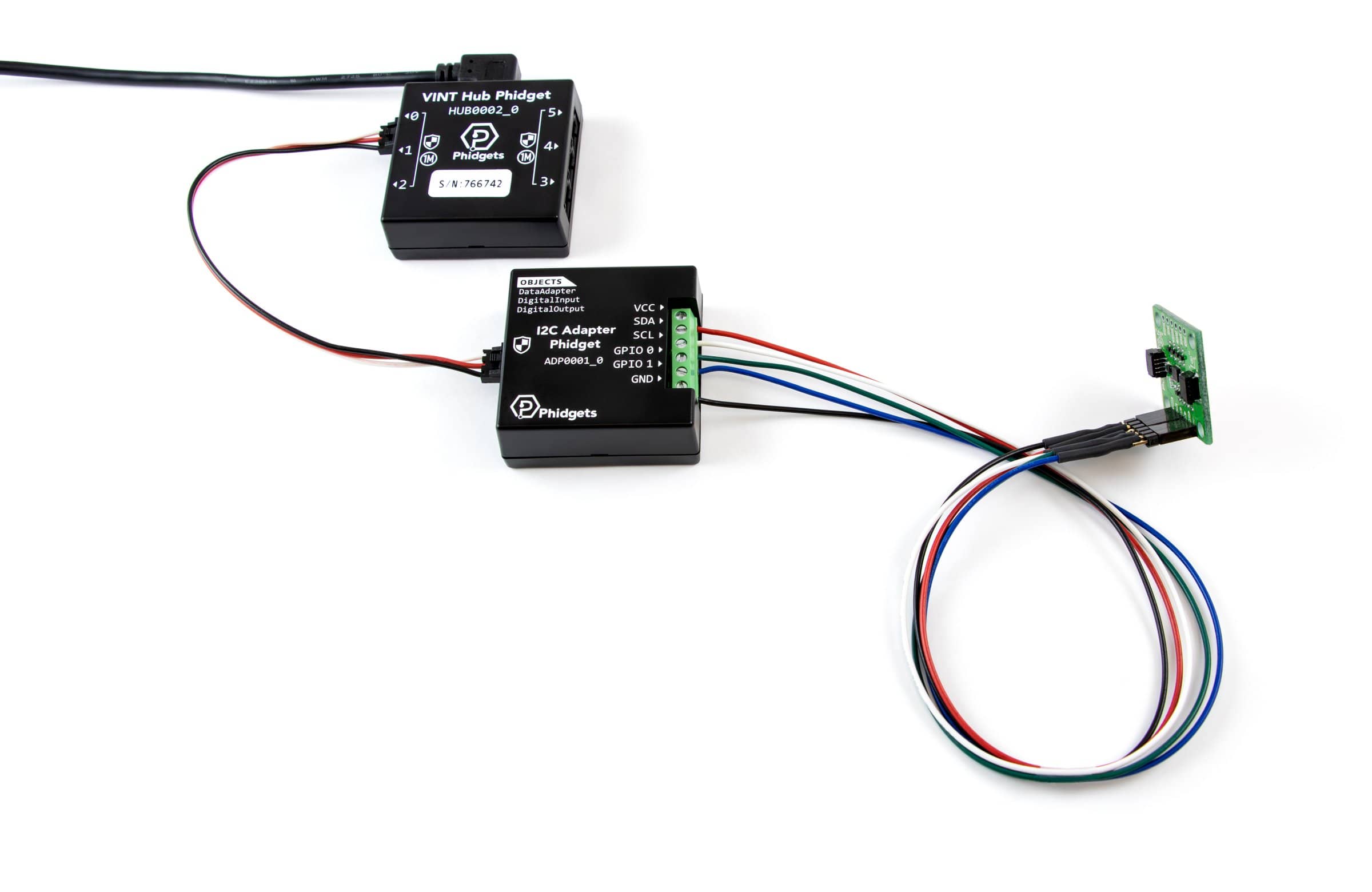

You can connect the I2C Adapter Phidget directly to your computer via USB or through a VINT Hub Phidget.
Features
- Control one or more I2C devices
- Supports 5V, 3.3V, 2.5V, and external power modes
- Supports communication speeds up to 400kHz
- Includes two GPIO terminals
- Connects via USB or through a VINT Hub Phidget
Product Specifications
| Part Numbers |
ADP0001_0MX, ADP0001_0 |
| Board Properties |
| Controlled By |
VINT or USB |
| USB Stack |
PHIDUSB |
| Driver Support |
Phidget22 |
| VINT Communication Speed Max |
1 Mbit/s |
| USB Speed |
Full Speed |
| Data Adapter |
| Data Protocol |
I2C |
| Data Rate Min |
10 kHz |
| Data Rate Max |
400 kHz |
| Max Data per Send |
127 B |
| Selectable Output Voltage Levels |
2.5V, 3.3V, 5.0V, or Externally supplied |
| Externally Supplied Voltage Min |
1.8 V |
| Electrical Properties |
| Current Consumption (Unconfigured) |
50 mA |
| Current Consumption Max |
* 125 mA |
| USB Voltage Min |
4.1 V DC |
| USB Voltage Max |
5.3 V DC |
| Digital Inputs |
| Number of Digital Inputs |
(Shared) 2 |
| Pull-up Resistance |
10 kΩ |
| Input Voltage Max |
5.5 V DC |
| Digital Input Type |
** Floating or Pull-up |
| Low Voltage Max (False) |
*** 1.5 V DC |
| High Voltage Min (True) |
*** 3.5 V DC |
| Digital Outputs |
| Number of Digital Outputs |
(Shared) 2 |
| Series Resistance |
499 Ω |
| Available External Current |
10 mA |
| Digital Output Voltage Min |
0 V DC |
| Digital Output Voltage Max |
‡ 5 V DC |
| Physical Properties |
| Operating Temperature Min |
-40 °C |
| Operating Temperature Max |
85 °C |
| Recommended Wire Size |
16 - 26 AWG |
| Customs Information |
| Canadian HS Export Code |
8471.80.00 |
| American HTS Import Code |
8471.80.40.00 |
