NavigateWorx IoT Comms Standard (Dual SIMs, 2 LAN/Eth Ports) / No Accessories Required Industrial Premium 4G LTE Cellular NR500 Standard VPN Router Dual SIMs (AU Freq.)

Industrial Premium 4G LTE Cellular NR500 Standard VPN Router Dual SIMs

$419.00
Save $100
(Exc. GST)

Available in stock

$ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST

$ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)

$ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

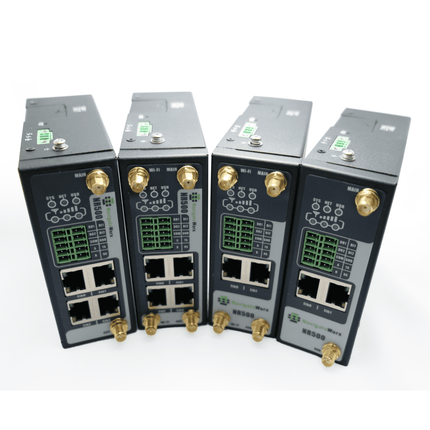

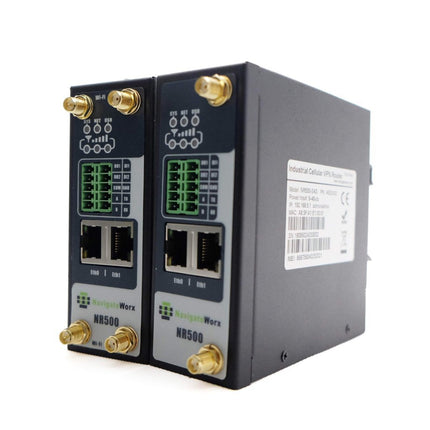

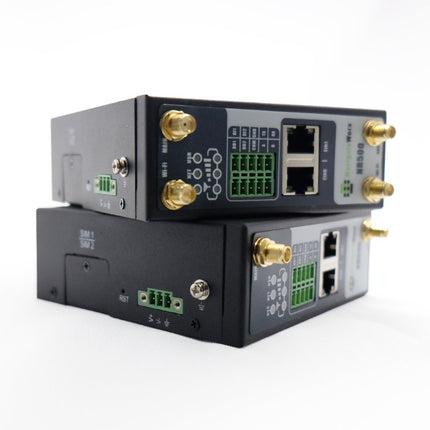

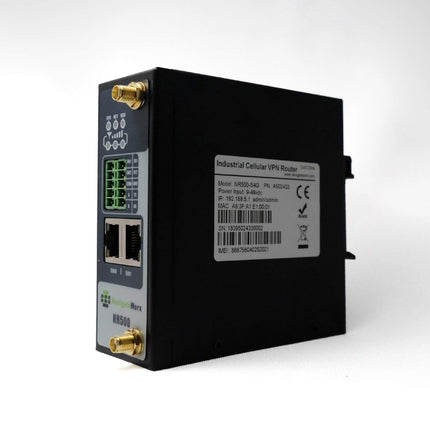

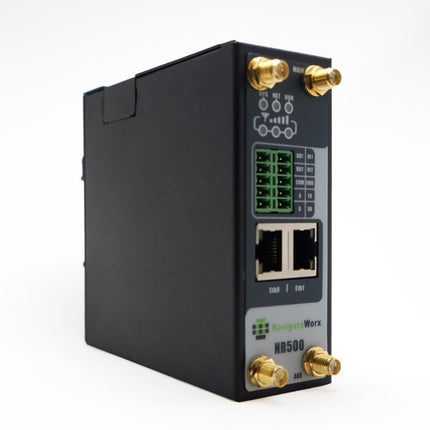

Industrial Premium 4G LTE Cellular NR500 Standard VPN Router with 2 LAN Ports

Frequency Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Suit AU Freq. Bands inc. Telstra)

Navigateworx NR500 series industrial premium cellular VPN router offer single, flexible platform to address a variety of wireless communications needs with over-the-air configuration and system monitoring for optimal connectivity. This router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.
NR500 series router has dual SIM backup, 2 or 4 LAN ports, 1 port could be changed to Ethernet WAN connection (for fixed internet failover to cellular). An optional 802.11 b/g/n Wi-Fi interface access point and client operations support connectivity to IP applications in a variety of different connection scenarios. RS232 and RS485 interfaces are provided to support Serial to IP communication. NR500 series router also supports 2 x digital input and 2 x Digital output for alarm applications.
NR500 series router supports 9 to 48 VDC wide range power inputs, designed with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for universal wireless M2M applications with reliable features for data transmission.

Specifications

2 Ethernet Ports (Standard version), 4 Ethernet Ports (Pro version)
1 RS232 & 1 RS485
2 Digital Inputs & 2 Digital Outputs
Dual SIMs Backup, Wi-Fi is optional
Wide Operating Temperature: -40 to 75
Wide Range Power Input: 9 to 48V
Hardware RTC & Watchdog
Link Failover from LTE / Ethernet / Wi-Fi
Wi-Fi AP & Client Mode (Wi-Fi Optional)
6 LED Indicators
Timer Reboot / SMS Reboot
LTE Connected on Demand
Multiple VPNs Supported
Local Web & SNMP & CLI Configuration
3rd party Central Management Platform
VPNs: OpenVPN, GRE, IPSec, L2TP, PPTP, DMVPN
Config: Local Web & SNMP & CLI Configuration
High EMC Level

Applications

Video Surveillance
Retail Markets, including Vending Machines, Kiosk etc
Remote Monitoring - SCADA
Intelligent Transportation System
Industrial Automation
Automatic Metering Reading

Cellular Interface

Standards: FDD-LTE/TDD-LTE, WCDMA/UMTS/HSPA/HSPA+/EDGE/GPRS,
2x SMA female antenna connector
2 x SIM (3.0V & 1.8v)

Wi-Fi Interface (Optional)

Standards: 802.11b/g/n, 300Mbps
2 x RP-SMA male antenna connector
Support Wi-Fi AP and Client modes
Security: WEP, WPA and WPA2 encryption
Encryption: AES, TKIP, WEP64

Ethernet Interface

Standard: IEEE 802.3, IEEE 802.3u
Number of Ports:
NR500-Standard: 2 x 10/100 Mbps, RJ45 connector
NR500-Pro: 4 x 10/100 Mbps, RJ45 connector
1x WAN interface (configurable on Web GUI)
1.5KV magnetic isolation protection

Serial Interface

1xRS232 (3 PIN): TX, RX, GND
1 xRS485 (2 PIN): Data+ (A), Data-(B)
Baud rate: 300 bps to 115200 bps
Connector: terminal block
15KV ESD protection

DI/DO Interface

Type: 2 x Dl + 2 x DO
Connector terminal block
Isolation: 3KVDC or 2KVrms
Absolute maximum VDC: 36VDC
Absolute maximum ADC: 100mA
Other Interfaces
x RST button
LED instruction: 1 x SYS, 1 x NET, 1 x USR, 3 x RSSI

Software

Network protocols: DHCP, ICMP, PPPoE, HTTP, HTTPS, DNS, VRRP, NTP.
VPN: IPSec, PPTP/L2TP client, GRE, OpenVPN, DMVPN
Policy: RIPv2/OSPF/BGP dynamic route (optional)
Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL
Serial port: TCP server and client, UDP
Management: Web, SNMP, 3rd party platform

Power Supply and Consumption

Connector 3-pin 3.5 mm female socket with lock
Input voltage range:
Power consumption:
Idle: 100 mA@12V
Data link: 400 mA (peak) @12V
9-48VDC

Physical Specification

Ingress Protection: iP30
Housing & Weight: Metal, 300g
Dimension: 104mm x 104mm x 38mm (excluding antenna)

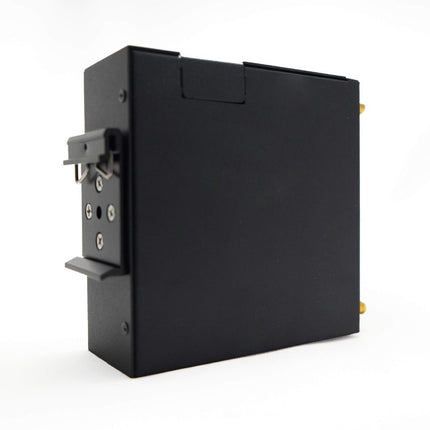

Installations: Din-rail mounting

Environmental

Operation temperature:-40 +75 C
Store temperature: -40-+85 C
Operation humidity: 5% to 95% non-condensing

Optional Accessories
Power Supply	Power Supply Adapter, AU Plug, Input 100 to 240VAC, Output 12VDC 1.5A
Wi-Fi Antenna	Wi-Fi Megnet Antenna, 3 Meters Long, 2.4G - 2.483G, 7dbi, Φ 29×220mm, AC
Cellular Antenna	4G / 3G / 2G Megnet Antenna, 3 Meters Long, 698-960 / 1710-2700 MHz, 3bi, Φ 29×112mm, AC
Din Railway Kit	Din Railway Kit, 35 mm, Alumunium with Black Spray Surface, 50 * 40 * 8.5 mm, 3 * M3.5 Screw Holes
