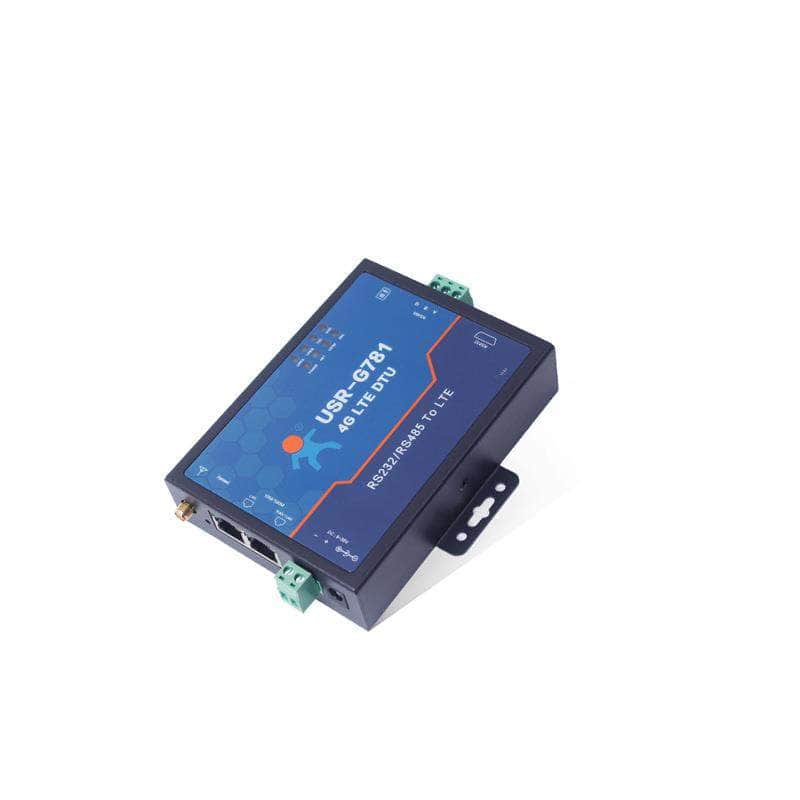

Industrial 4G LTE Modem Router, Serial to Cellular Modem USR-G781-AU (Antenna Included)
Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)
USR-G781 is an industrial cellular modem router, which provides a serial to cellular networking solution. Provide Serial and Ethernet Connectivity to PLC, RTU, Data Loggers, Wireless SCADA applications, and IP Cameras at Remote Sites.
- Supports 2 10/100Base-T(X) self-adaptive Ethernet interface and 1RS485 port
- Hardware watchdog, rugged metal casing, and wall mounting

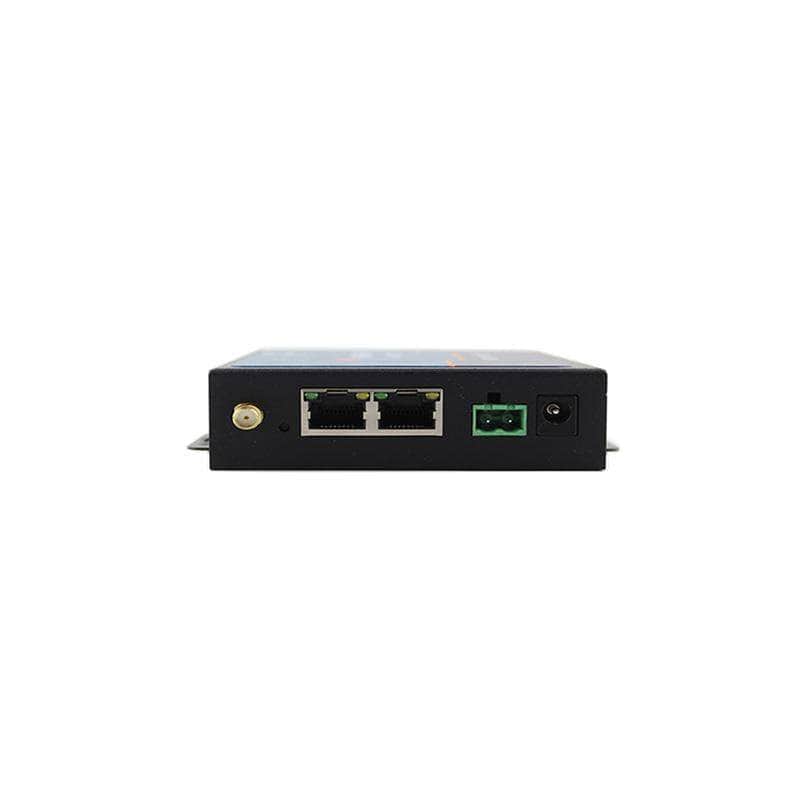

- 2 RJ45 port, one can be WAN or LAN port and another one can be LAN port
- Support VPN(PPTP) client
- Support static routing
List of Australia 4G LTE Frequencies: https://en.wikipedia.org/wiki/4G_connectivity_in_Australia

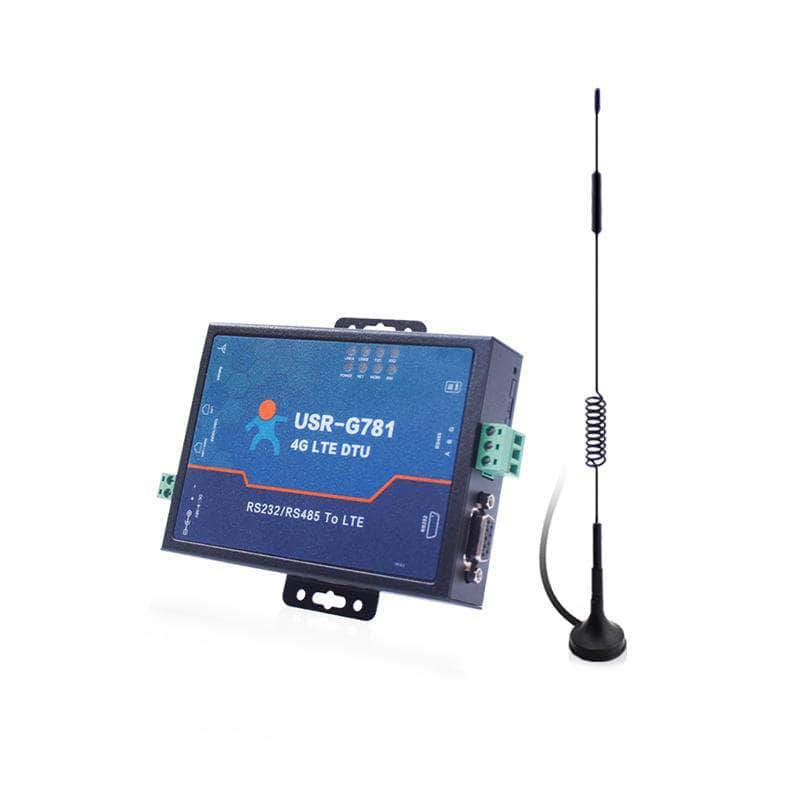

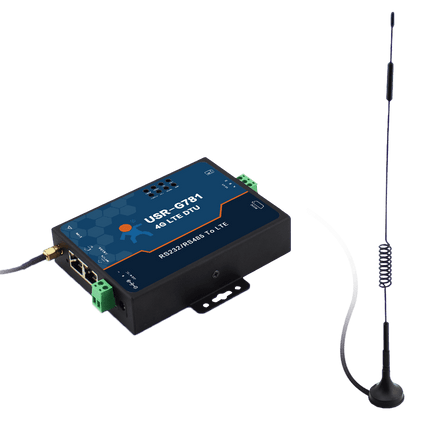

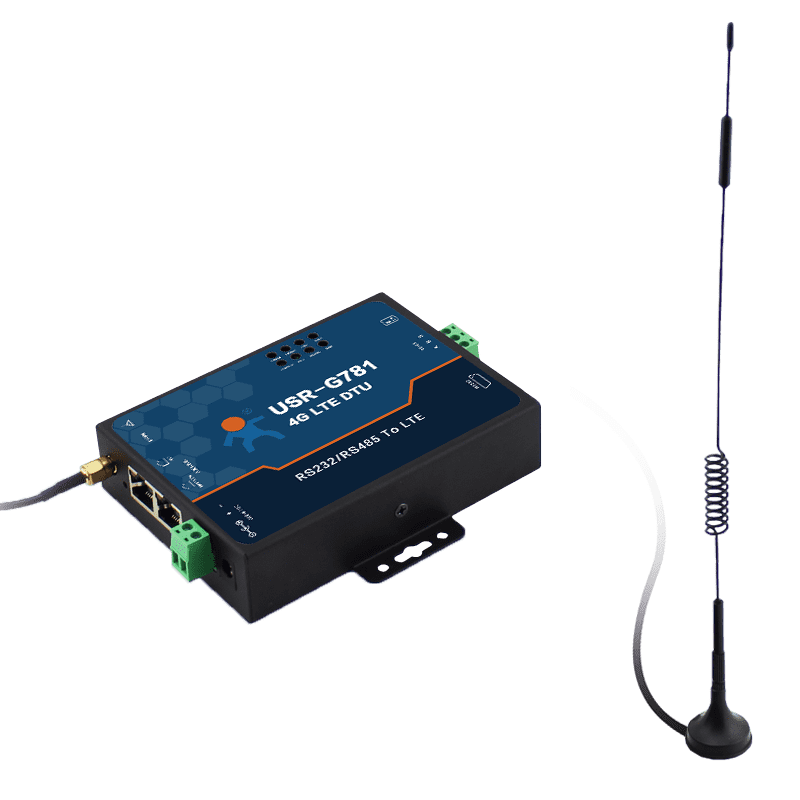

Note: This kit includes the antenna, AU power adapter, and DB9 cable.
|
|
Operation Band |
| Network Type |
G781 (Asia ) |
G781-E (Europe ) |
G781-AU ( Australia ) |
G781-A ( USA ) |
G781-V ( USA ) |
| 4G |
FDD-LTE |
1/3 |
1/3/5/7/8/20 |
1/2/3/4/5/6/7/8/28 |
2/4/12 |
4/13 |
| TDD-LTE |
38/39/40/41 |
38/39/40/41 |
40 |
|
|
| 3G |
WCDMA/HSPA/UMTS |
1/8 |
1/8 |
1/2/5/8 |
2/4/5 |
|
| 2G |
GPRS/GSM/EDGE |
3/8 |
3/8 |
2/3/5/8 |
Features of Industrial 4G LTE Modem router, Serial to Cellular Modem
- OPEN WRT, support multiple developments
- 2 RJ45 port, one can be WAN or LAN port and another one can be LAN port.
- Support VPN(PPTP) client.
- Support static routing
- Support Firewall and QoS
- Support DDNS
- Support NTP to check the time.
- Support TCP/UDP client mode and server mode.
- Support identity packet and heartbeat packet.
- Support Serial to HTTP format
- Support upgrading firmware via FTP.
- Integrated Hardware and software watchdog timer.
Specifications
| Parameter |
Item |
Index |
| SIM card and antenna |
SIM/USIM card |
Six pin SIM card interface, 3V/1.8V SIM card |
| Antenna |
SMA interface, 5 dBi antenna |
| Hardware Parameters |
Wired Internet interface |
WAN*1 and LAN*1 |
| Data Interface |
RS232:300bps - 460800bps |
| RS485:300bps - 460800bps |
| Indicator LED |

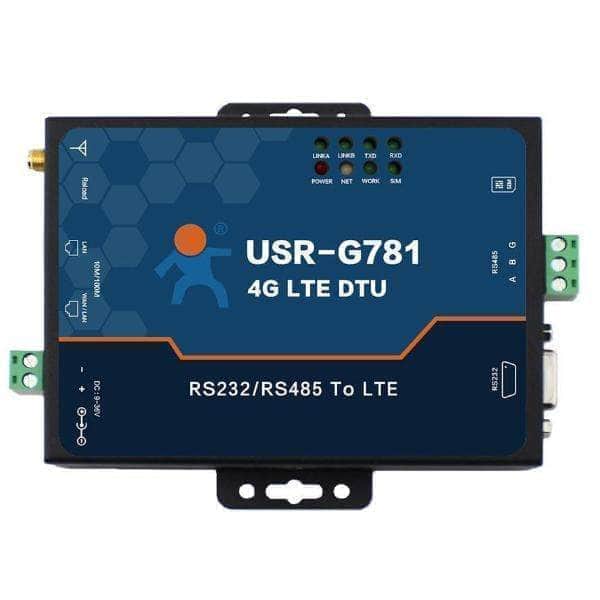

LINKA, LINKB, TXD, RXD, POWER, NET, WORK, SIM |
| Working Voltage |
DC 9V~36V |
| Working Current |
Average current 180mA@12V
Peak Current 300mA@12V
|
| Working Temp. |
-35°C-75°C |
| Storage Temp. |
-40°C-125°C |
| Working humidity |
10%~90% |
| Storage humidity |
5%~90% |
| Software Parameters |
Work Mode |
Transparent Mode, httpsD Client Mode |
| Setting Command |
AT+ Command Structure |
| Network protocol |
TCP/UDPDNS/https/FTP |
| Max TCP connections |
4 |
| User Configuration Method |
Setting Software, AT command and Web Server configuration |
| Software Functions |
VPN |
Support PPTP |
| Static routing management |
Support |
| Firewall |
Support |
| Network diagnosis |
Support |
| Remote Management |
Support |
| Transparent Transmission |
Support TCP Server/TCP Client/UDP Server/UDP Client |
|
https Protocol
Transmission
|
Support |
| Heartbeat Packet |
Support |
| Identity Packet |
Support IMEI/ICCID/self-defined identity packet |
| Baud Rate Synchronization |
Support |
| USR Cloud |
Support |
Documentation
USR-G781-AT-Command-Set_V1.0.0
USR-G781-User-Manual_V1.0.06.02
Specification of 4G LTE modems USR-G781
USR-G781 Datasheet
Development Files Link
Industrial 4G LTE Router
With Serial Port
Serial Modem
G781 integrates with routing and serial modem, which can easily achieve the
bi-directional data transparent transmission between RS485/RS232 devices
and 4G network, supports connecting to various cloud platforms.
It also supports user-defined register & heartbeat packets to ensure the
device online
Transparent Transmission
Provide data two-way transparent transmission between field serial devices and the
central control server Support 4 Socket connections, support TCP Client and UDP
Support custom heartbeat package and registration package
Private protocols can be customized
HTTPD Client
submit serial data to the designated server by HTTP (GET/POST) method
Modbus RTU to TCP
Modbus RTU/Modbus TCP protocol conversion for industrial SCADA
systems and field devices.
Registration Package plus Heartbeat Package
The registration packet is sent to the server to identify the device.
The heartbeat packet is used to judge the active state of the device when
sent to the server, and actively collect data when sent to the serial terminal.
The contents of registration package and heartbeat package,
heartbeat interval can be modified by AT command.
Industrial Design, Fit into Any Harsh Environment
ESD, Surge, EFT protection, wide input voltage.Built-in hardware watchdog,
7*24 hours stable operation in harsh environment or industrial site with strong
electromagnetic interference.
All components are selected according to industrial standards,Thicker and durable
metal shell, ground screw protection.
Data Security, Multiple VPN
Supports mainstream VPN protocols, including PPTP, L2TP, IPSec, OpenVPN,
and GRE. Multiple safe encryption methods make data safe
transmission up to financial grade.

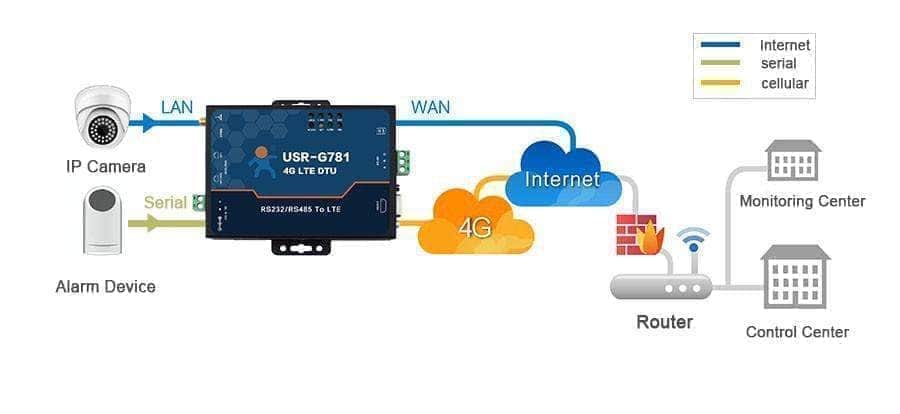

Flexible networking
Video Surveillance
Through 4G networking, it provides high-speed network access for cameras,
and other devices that require large data transmission,
so that staff can remotely monitor the details of the field.
