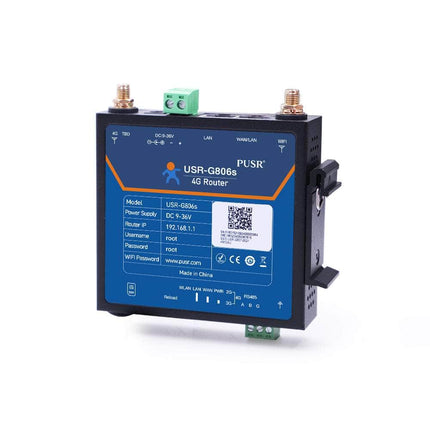

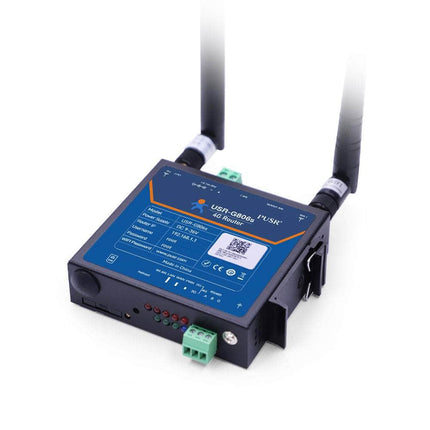

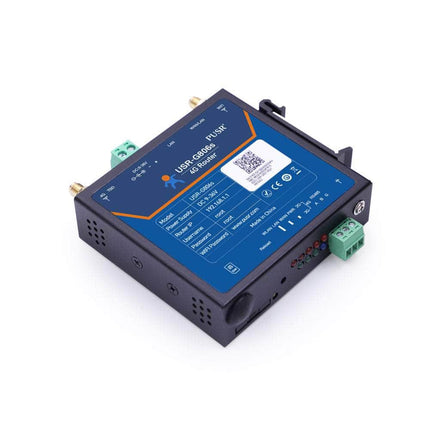

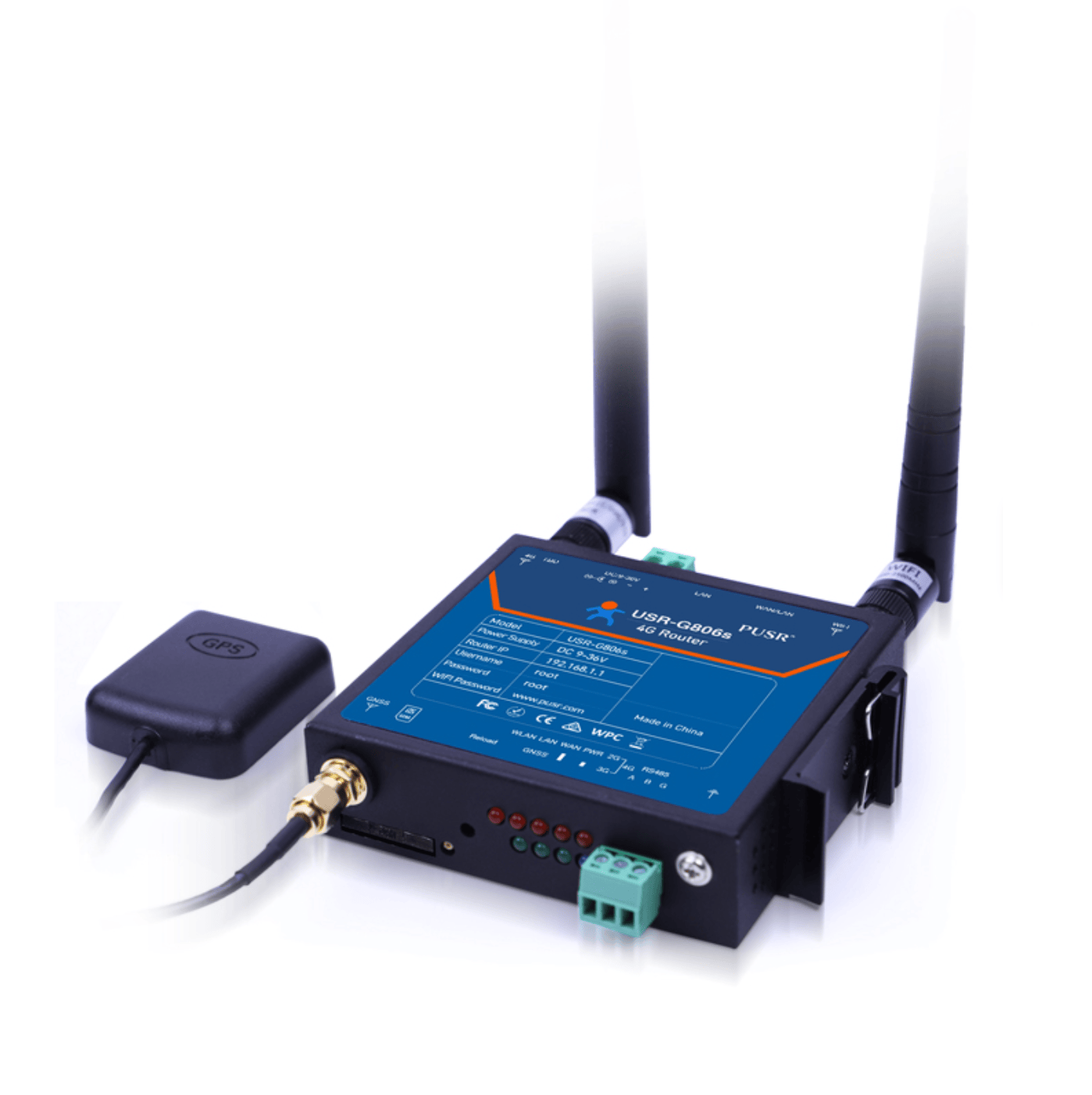

Industrial 4G LTE VPN Router WiFi RS485 USR-G806s

Description



Industrial 4G LTE VPN Router WiFi RS485 USR-G806s

USR-G806s is an IoT cellular router that integrates 4G LTE, Wi-Fi, and VPN technologies to provide an easy, reliable, secure Internet connectivity and high-speed data access for equipment networking. With technologies such as 4G wireless wide area network ,Dual Ethernet ports (LAN + WAN),Wi-Fi wireless local area network it provides uninterrupted multiple network access capabilities.

● Supports 2G/3G/4G network all over the world.
● Supports APN/VPDN sim card.
● Dual Ethernet ports, WAN/LAN.
● Support Modbus RTU toTCP.
● Support watchdog.
● Supports IPsec VPN, PPTP,L2TP, OPENVPN,GRE etc.
● Supports DDNS,PPPOE,DHCP,Static IP.
● Supports email alarm,SMS alarm,abnormal alarm push in time.
● Wall-mounting and DIN-rail mounting options available,easy to install



Remote Management, Remote Access
Efficient Batch configuration without on-site

Compact and Rugged Housing Design

Compact size, supports both panel and DIN-rail mounting, suitable
for various industrial IOT applications.

Serial Modem

G806s integrates with routing and serial modem, which can easily achieve the bi-directional
data transparent transmission between RS485 devices and 4G network,
supports connecting to various cloud platforms.It also supports user-defined register &
heartbeat packets to ensure the device online

Industrial Design, Fit into Any Harsh Environment

ESD, Surge, EFT protection, wide input voltage.
Built-in hardware watchdog, 7*24 hours stable operation in harsh environment or
industrial site with strong electromagnetic interference.

More Features

Specifications

Hardware Specifications
Cellular
Interface		 Antenna 1 x SMA-K
Note: North America models: 2 x SMA 4G antenna connectors.
SIM card 1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots
Ethernet 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
Indicators LED PWR: always on after powered on
WLAN: always solid on when WiFi is enabled and working properly
WAN: solid when cable is connected, blinking when data is transmitting and receiving
LAN：solid when cable is connected, blinking when data is transmitting and receiving
2/3/4G mode indicator：
2G led is on after connected to 2G network
3G led is on after connected to 3G network
Both leds is on after connected to 4G network
Signal strength：4 solid bars,strongest signal
WiFi Interface Standards & Frequency IEEE 802.11b/g/n,2.4GHz, AP mode
Data speed IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
Antenna 1 x SMA-K
Transmission distance 80 meters by line of sight.Actual transmission distance depends on environment of the site.
Power Supply Adaptor DC 12V/1A
Connector DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection
Input voltage DC 9~36V
Working power Average 270mA/12V
Serial Interface RS485/RS232(alternative) 3 PIN 3.81mm industrial terminal block. Note:RS485 default,RS232 please contact sales.
Baud rate(bps) 1200,2400,4800,9600,19200,38400,57600,115200,230400
Data bits 8
Stop bits 1,2
Parity NONE,ODD,EVEN
Physical
Characteristics		 Housing Metal shell,IP30
Dimensions 112.0*84.0*25.0 mm(L*W*H）
Installation method Panel mounting, DIN-Rail mounting
EMC Static IEC61000-4-2, level 2
Pulsed Electric Field IEC61000-4-4, level 2
Surge IEC61000-4-5, level 2
Operating temperature -20℃～+70℃
Storage temperature -40℃～+125℃
Operating humidity 5 5%～95%RH（non-condensing)
Others Reload Pinhole reset button
TBD Debug interface (TTL Level)
Embedded Watchdog Device runs self-detection, auto recovers from malfunctions
Certificate CE,CCC
Software Specifications
Network
Connection		 WAN protocol PPP, PPPoE, DHCP client
LAN protocol ARP, DHCP server, NAT
4G network access Auto APN/VPDN, private network
Access authentication: CHAP/PAP
WLAN security Open system,WPA/WPA2 PSK
TKIP/AES encryption
IP routing Static routing
Network diagnosis Ping,route trace,DNS
Serial modem Work mode NET,HTTPD
Sockets 4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC
Modbus RTU toTCP Support
Device
management		 Configuration Web
Remote management Telnet, SSH, AT command,SNMP
PUSR platform Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
Security Failover backup Failover between 4G and WAN, ensures automatic switch to alternative backup connection
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
VPN Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
Service DDNS Remote access the device through domain name
Alarm Email,SMS
Others NTP client
Timing task
Region EMEA&Australia & Latin America & New Zealand
Frequency TDD-LTE B38/B40/B41
FDD-LTE B1/B3/B5/B7/B8/B20/B28
WCDMA B1/B5/B8
GSM/GPRS/EDGE 850/900/1800MHz

Documents

USR-G806s Datasheet
