Description

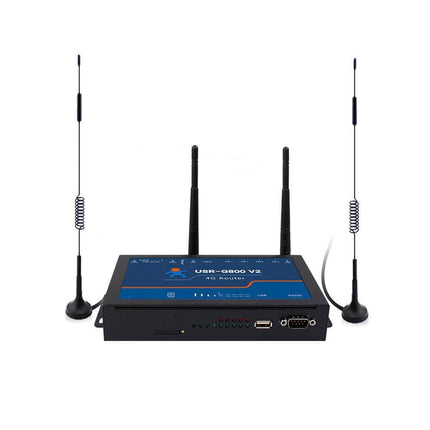

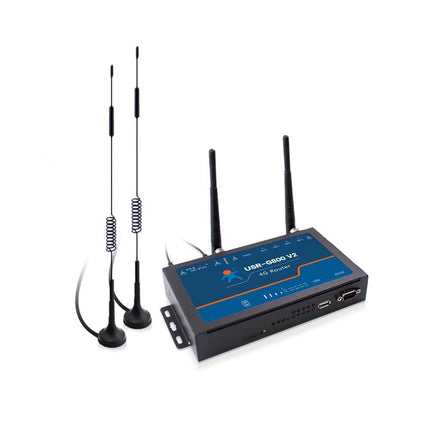

Industrial 4G LTE Router USR-G800V2-AU with serial port
Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)
USR-G800 V2 is an Cellular wireless router with 5 Ethernet ports. Industrial 4G VPN Router, secure wireless routing for industrial remote access.
- Providing reliable, seamless connectivity for M2M & IoT applications
- Supports PPTP L2TP IPSEC OPENVPN GRE
- Supports 5 10/100Base-T(X) self-adaptive Ethernet interface
- Hardware watchdog ,rugged metal casing and wall mounting
- Supports 802.11 b/g/n WLAN
List of Australia 4G LTE Frequencies: https://en.wikipedia.org/wiki/4G_connectivity_in_Australia
Features of Industrial 4G Routers
- OPEN WRT, support multiple developments

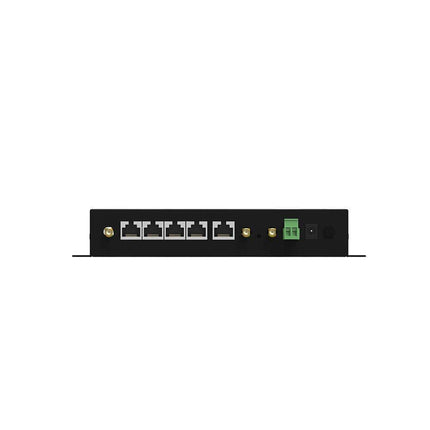

- 4 LAN ports and 1 WAN port
- Support WiFi network
- Support 4G module with Mini-PCIE interface (TD-LTE: Band 40, FDD-LTE: Band 1/2/3/4/5/6/7/8/28, WCDMA/HSPA/UMTS Band 1/2/5/8, GSM/GPRS/EDGE: Band 2/3/5/8)

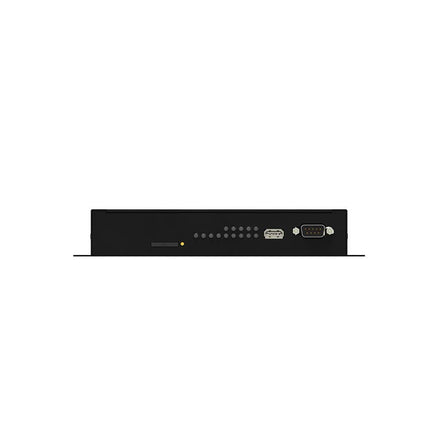

- Multiple indicator lights
- Data transparent transmission between RS232 and 4G network
- Support Web setting
- A key to restoring factory settings
- Both LAN port and WAN port with a rate of 10/100Mbps
Note: This kit includes all the antennas (4 Pcs) and AU power adapter.
Specifications:

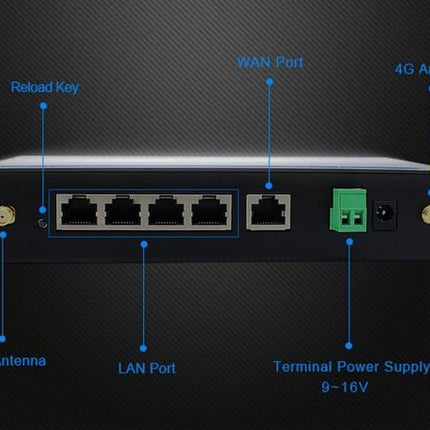

| Wired Ethernet Port |
| WAN port |
WAN *1 |
| LAN port |
LAN *4 |
| |
Both LAN port and WAN port with a rate of 10/100Mbps,Auto MDI/MDIX |
| WIFI |
| WIFI Network |
Support 802.11b/g/n |
| Antenna |
WIFI antenna *2 |
| Specification |
| Interface |
Mini PCI-E 52PIN |
| TD-LTE |
3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps |
| FDD-LTE |
3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps |
| WCDMA |
HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps |
| TD-SCDMA |
3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps |
| GSM/GPRS/EDGE |
Download rate of 384 kbps; upload rate of 128 kbps |

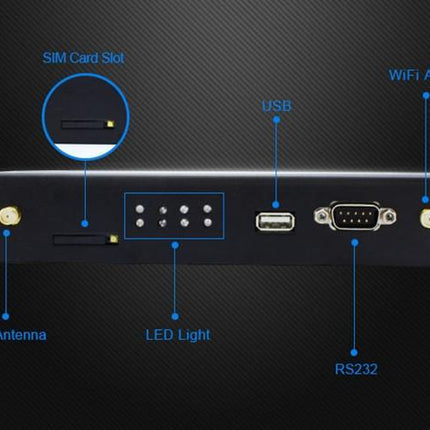

| SIM card&Antenna |
| SIM/USIM Card |
Standard 6 pin SIM card, 3V/1.8V SIM card |
| Antenna |
3/4G full-frequency antenna * 2 |
| Key |
| Reload |
A key to restore factory settings |
| Indicator light |
| Status indicator light |
Power, WIFI,4G, WAN*1, LAN*4 |
| Serial |
| RS232 |
DB9 pin male;
Data transparent transmission between RS232 and 4G network |
| Temperature |
| Working Temp |
-20°C~ +70°C |
| Storage Temp |
-40°C~ +75°C |
| Humidity |
| Working Humidity |
10%~90% |
| Storage Humidity |
5%~90% |
| Power Supply |
| Working Voltage |
DC9~36V |
| Working Current |
Average: 170mA; Max: 289mA (DC12V) |
Documentations
USR-G800V2-AT-Commands_V1.0.1
[Specification] Cellular routers USR-G800 V2 V2.0.4
USR-G800V2-User-Manual_V1.0.1
USR-G800 V2 Datasheet
