Industrial CAN-BUS to Ethernet Converter w RS485 Port USR-CANET200

Industrial CAN-BUS to Ethernet Converter w RS485 Port USR-CANET200

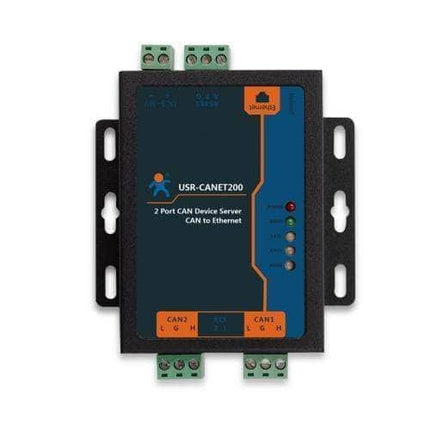

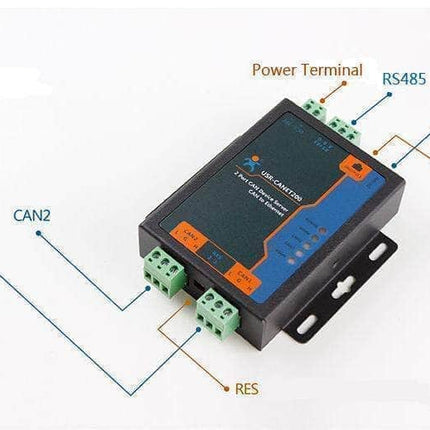

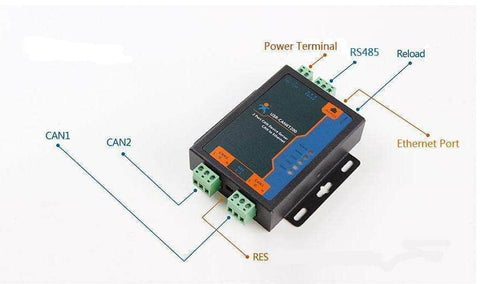

USR-Cannet200 is an industrial Can-bus to Ethernet converter built-in with two Can-bus ports, one ethernet port and one RS485 port.

- Support BASIC and LOOPBACK work modes

- Support CAN relay function

- Support switching between CAN and RS485

Advanced Function of CAN Bus - Ethernet Converter

• All-around hardware protection. CAN, serial port, Ethernet interface and power interface all have high-level protection to adopt harsh industrial environment.
• Support CAN ID filtering function, various filtering function make using module more secure
• One port supports two sockets
• CAN baud rate ranges from 10K~1Mbps
• Support BASIC and LOOPBACK work modes
• Support CAN relay function
• Support switching between CAN and RS485

Basic Feature of CAN Bus - Ethernet Converter

• Multiple indicator lights for convenient debugging
• Power-line terminal for industrial application
• ARM kernel and TCP/IP protocol stack
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• TCP Server, TCP Client, UDP and UDP Server work mode
• Support virtual serial port and provide corresponding software USR-VCOM
• Serial baud rate from 600bps to 115.2Kbps; Check bit of None, Odd, Even, Mark and Space
• DNS and DHCP supported
• Provide PC TCP/IP SOCKET programming example, VB, C++, Delphi, Android, IOS
• The built-in webpage also can customize webpage for users
• Reload button, one key to restore default settings
• RJ45 with Link/Data indicator light, built-in isolation transformer and 1.5 KV electromagnetic isolation
• The global unique MAC address bought from IEEE, the user can define MAC address
• - Upgrade firmware via network
• - Keepalive, rapidly detect dead links
• - Support account and password can be used to page login and network settings
• - The product is designed for industrial applications with emphasis for durability, functionality and robustness
• - The product has CE certification for EU market
• - This product is RoHS compliant
• - Possibility to mount on DIN Rail

Note: This kit also includes AU Power Adapter.

Specifications:

Hardware parameter
Working voltage DC 5~36V
Working current Average 26mA@36V, Average 56mA@12V, Average 124mA@5V
Power supply protection: Power supply surge: Level three.
Ethernet interface specification: RJ45, 10/100Mbps, support Auto-MDI/MDIX.
Ethernet interface protection: 1.5KV electromagnetic isolation
Serial port: RS485
Serial port baud rate: 600~115.2K(bps)
CAN baud rate: 10K~1M(bps)
CAN work mode: Basic, loopback
CAN protection: Power supply isolation, signal isolation

Software parameter
Network protocol: IPV4, TCP/UDP
How to get IP: Static IP, DHCP
Configuration method: Web Server, serial/network AT command
TCP Server connection: Support at most four TCP Client connections; serial server only support one Client connection
CAN receiving capability: 8000 frames every second(Every way)
CAN transmitting capability: 8000 frames every second(Every way)
Network cache: Transmitting: 16K bytes; receiving: 16K bytes
CAN cache: Transmitting: two hundred complete data packets(Every way); receiving: two hundred complete data packets(Every way)
Serial cache: Transmitting: 2K bytes; receiving: 2K bytes
Heartbeat packet: CAN, Support user editable heartbeat packet(CAN data packet that conforms to transparent transmission protocol).
Serial port: Support user editable heartbeat packet
Identity packet: CAN; Support user editable, MAC, USR Cloud identity packet.
Serial port; Support user editable, MAC, USR Cloud identity packet
Average transmission delay:<20 ms

Other parameters
Working temperature: -40~85℃(Industrial level)
Storage temperature: -40~105℃
Dimensions: 96.5*94*25mm(L*W*H)
Working humidity: 5~95%RH
Storage humidity: 5~95%RH

User Manual

[Datasheet] USR-CANET200 Datasheet
[User Manual] USR-CANET200 User Manual
