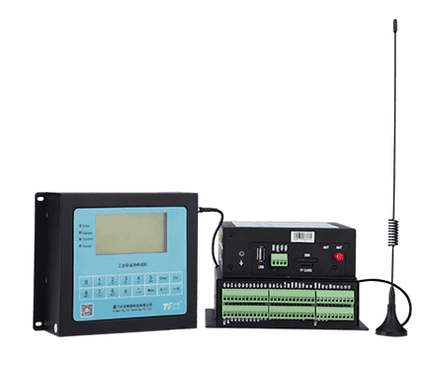

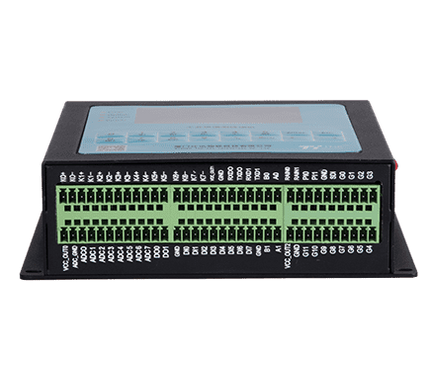

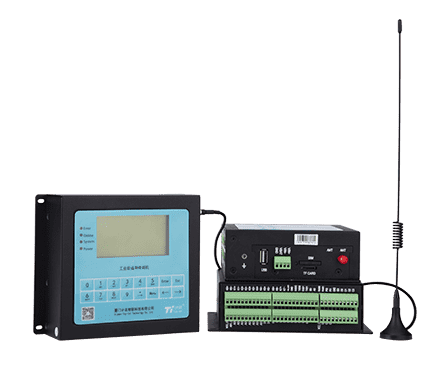

TY511 Industrial Cellular 4G LTE RTU Supports RS-232/485/422 I/O
Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)
2-RS232, 2-RS485, 8-DI, 8-DO, 8-ADC
2-Pulse, 3-Power output, 1-SD slot
Supports up to 16MB data storage and additional SD card data storage(Up to 16G)
LCD display of data and configuration*
Modbus TCP/RTU, MQTT, TCP/UDP protocols
SMS alarm and AT command
1. Rich and flexible industrial interfaces
2x rain gauges, 1x 12-bit gray code, 2x RS232, 2x RS485, 1x SDI-12, 8x analog input, 8x digital input, 2x digital output, 8x relay output, etc.
2. Large capacity of local data storage
Supports up to 16MB data storage and additional SD card data storage (Up to 16G), ideal for long term data storage and parameters setting.
3. Secure and transparent data transmission
Built in standard TCP/IP stack, supports up to 5 data centers for synchronous and transparent data transmission.
Local historical data exporting (via serial port or SD card), remote real time and historical data query.
Integrated with data acquisition and 4G/3G/2G data transmission, reliable and cost-saving, to realize hydrology and water resources data acquisition, storage, display, control, alarm and transmission, etc.
4. Easy to configure and use
Support multi types of configuration, including configured through local LCD and keyboard, serial port, remote configuration, etc.
5. Low power consumption design
Supports types of work modes, sleep mode, timing collecting and sending data to center, auto report, etc.
6. Remote management
Support remote management, including remote configuration through data center and SMS(under development), remote firmware upgrade, and center management software(option) to manage the devices remotely.
7. Extendable functionalities
Support monitoring status of current of external battery.
Support image capture(via serial port camera).
Support external LCD display screen via USB port.
8. Robust and reliable
High standard Industrial grade design, suitable for unattended and harsh industrial applications.
Complete system protection and keep online mechanism, to ensure always online
Support anti-electromagnetic interference, suitable for harsh environment.
Specifications
System
CPU: Industrial 32-bit
FLASH: 16MB (Extendable to 32MB)
SRAM: 256K
Cellular Interface
4G/3G for option (FDD-LTE, TDD-LTE, HSPA/WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X and GPRS)
Cellular Antenna Interface
Number of ports: 1
Note: Standard SMA female antenna interface, characteristic impedance 50Ω
SIM Interface
Number of Ports: 1
Note: Standard drawer type card holder, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Grounding screw
Number of ports: 1x M3 screw
LCD Screen
128*64 dot matrix, backlight
Keyboard
Number of keys: 16 Keys (2*8 keys)
Pulse quantity
2x tipping bucket rain gauge input(low level)
2x pulse input(high level)
Gray code(Option)
Number of ports: 1
Note: 12-bit gray code interface
SDI12(Option)
Number of ports: 1
Start Bit: 1 bit
Data Bit: 7 bit
Parity Bit: 1 bit
Stop Bit: 1 bit
Baud Rate: 1200bps
Analog quantity
Number of ports: 8
Note: 16-bit AD, support 4-20mA current signal input, and 0-5V voltage signal input is optional
DI(Digital Input)
Number of ports: 8(optical isolation)
Logic 0: Wet contact 0-3VDC, or dry contact close
Logic 1: Wet contact DC 5-30V, or dry contact open
DO(Digital output)
Number of ports: 2(optical isolation, Open Collector)
Rated drive current: 50mA
Rated drive voltage: 35V
Relay
Number of ports: 8
Max switching voltage: 30VDC/220VAC
Max switching current: 4A
Max switching power: 120W
Power output
Number of ports: 3
Note: power output is the same as power input of RTU, default is 12V. Rated output current of 1 power output is 1A, and total rated output current of 3 power outputs is 2A, built in overcurrent protection
USB Port(Reserved)
Number of ports: 1
Note: for external display screen port, able to connect
192*64 dot matrix STN LCD screen with keyboard
SD card port
Number of ports: 1
Note: support up to 16G SD card.

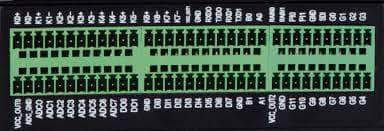

Serial Interface (Industrial terminal block)
Number of ports: 4, (2x RS232, 2x RS485)
Note: Built-in 8KV ESD protection for RS232, and 15KV ESD protection for RS485
Serial Communication Parameters
Baudrate: 300~230400bits/s
Data Bit: 5, 6, 7, 8 bits
Stop Bit: 1, 1.5, 2 bits
Check: No, Even-parity, Odd Parity, SPACE and MARK
Power Requirements
Standard Power: DC 12V/1.5A
Power Range: DC 5~35V
Note: Built-in power inverting protection and over voltage protection
Power Consumption
Communication: 45～55mA@12VDC
Standby: 37mA@12VDC
Sleep: 2mA@12VDC
LED Indicators
Power, System, Online, Error
Reliability
Low power consumption design, including sleep mode, scheduled online/offline modes.
EMC up to level 3
Use NTP technology, build-in RTC
SIM/UIM card port built-in 15KV ESD protection
Warranty
Warranty Period: 12 months
Environmental Limits
Operating Temperature: -35~+75ºC (-31~+167 ºF)
Storage Temperature: -40~+80ºC (-40~+176 ºF)
Ambient Relative Humidity: 93%±3%, non-condensing
Physical Characteristics
Protection Class: IP30, Housing and system are isolated safely, ideal for industrial automation application
Housing: Metal
Weight: 790g(1.74lbs), accessories are not included.

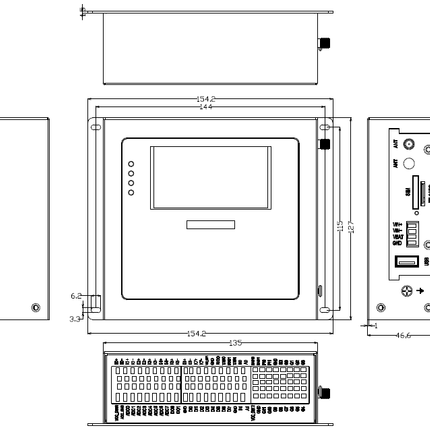

Dimension: 154.2×127×46.6mm (6.07x5x1.83 inches), Antenna and other accessories are not included.
