Industrial Conductivity Kit K 1.0 - Atlas Scientific
Are you working with a PLC and aren’t sure what parts are right for you? Let us help you. This is the Atlas Scientific, Industrial Conductivity kit. It comes with everything you need to take high accuracy, interference-free readings with a PLC. The industrial strength conductivity probe is ready for the job, whatever it may be. This probe doesn’t care, from batch process chemical production to wastewater treatment. You can use it for anything. The DIN rail mount and wide operating voltage makes it easy to install. The 4-20mA data output and display makes it easy to read. And the simple calibration protocol gets you up and running in no time.
An E.C. (electrical conductivity) probe measures the electrical conductivity of a solution. It is commonly used in hydroponics, aquaculture and freshwater systems to monitor the number of nutrients, salts or impurities in the water. Inside the conductivity probe, two electrodes are positioned opposite from each other, an AC voltage is applied to the electrodes causing cations to move to the negatively charged electrode, while the anions move to the positive electrode. The more free electrolyte the liquid contains, the higher the electrical conductivity.
A conductivity probe is a very simple device. It is just two conductors with a fixed surface area at a fixed distance from each other. This distance and surface area is known as the conductivity cell. The cells distance and surface area is quantified as the conductivity cells K constant.

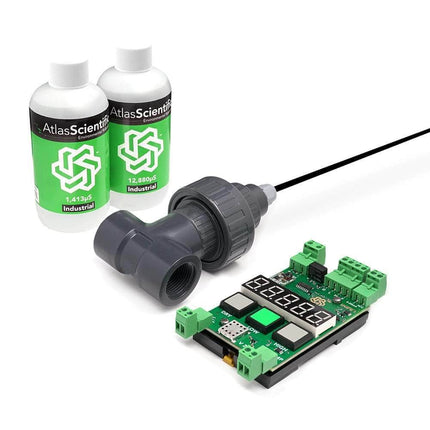

Kit includes:

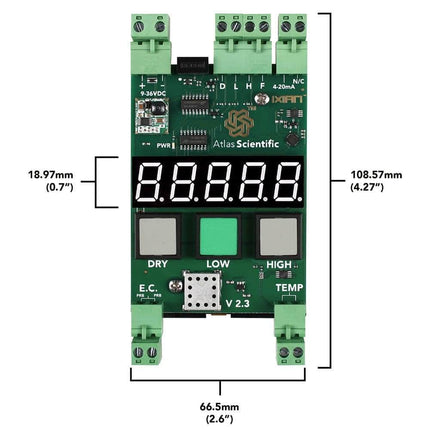

• 1 IXIAN™ Conductivity Transmitter

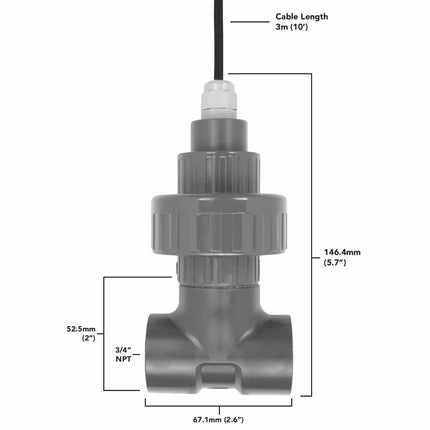

• 1 Industrial Conductivity Probe K 1.0

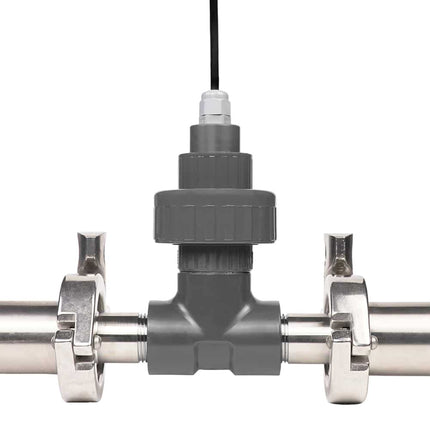

• 3/4" NPT pipe thread on input and output side
• 2 125ml (4oz) calibration solutions
K 1.0 - This set includes 1 (1,413µS) and 1 (12,880µS)
Probe Max Pressure: 1380 kPa (200 Psi)
Probe Cable length: 10Ft
Probe Weight: 504 grams
