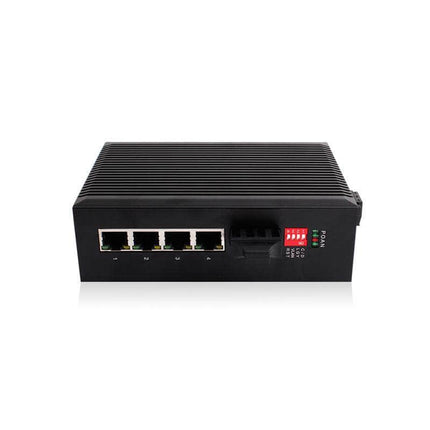

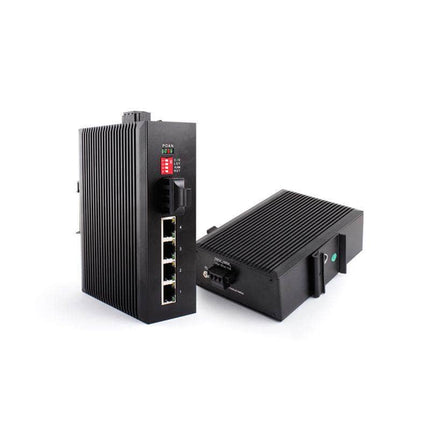

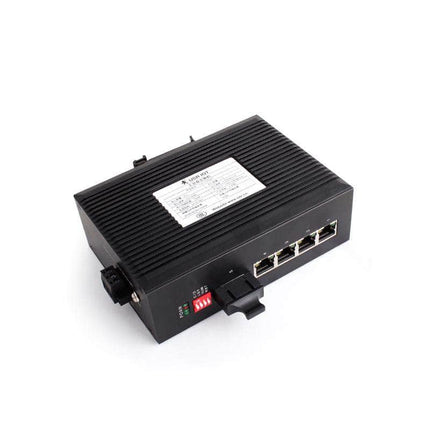

Industrial 4 Port Ethernet Switches POE and Fibre USR-SDR041
Industrial 4 Port Ethernet Switches POE and Fibre USR-SDR041
Ethernet Switches USR-SDR041 with 4 Ethernet ports and 1 fiber port, plug and play, simple and reliable, which can realize the expansion function of the network port, and enhance the reliability and security of the industrial network.
- Industrial Ethernet-unmanaged switch
- Support 4 Ethernet ports (electrical ports) and 1 fiber port, 10/100Mbps rate adaptation
- Support level 4 electrostatic protection, level 4 power surge protection, level 3 network port surge protection, IP40, and other advanced protection
- Phoenix terminal power interface
- Support 10-58V wide voltage, natural heat dissipation, DIN-Rail mounting
Specifications
|
Model |
USR-SDR041 |
|
|
Interface |
Power interface |
Phoenix terminal, redundant dual power supply |
|
Network interface |
10/100 Base - T |
|
|
Ethernet port number |
4*10/100M，1*100 Base-FX |
|
|
LED indicators |
PWR，Link/ACT |
|
|
Cable type |
Twisted-pair |
100m (CAT5E, CAT6) |
|
Monomode optical fiber |
20/40/60/80/100KM |
|
|
Multimode (optical) fiber |
550m |
|
|
Electrical Specifications |
Input voltage |
DC 10-58V |
|
Power consumption |
Normal model<5W; POE model<95W |
|
|
Network Topology |
Star topology |
support |
|
Bus topology |
support |
|
|
Tree Topology |
support |
|
|
Parameters |
MAC address table |
1K |
|
Buffer |
512K |
|
|
Forwarding delay |
<3us |
|
|
MDX/MIDX |
support |
|
|
Flow control |
support |
|
|
Jumbo frame |
2048bytes |
|
|
Switching capacity |
1G |
|
|
Packet forwarding rate |
0.744Mpps |
|
|
EMC&INGRESS PROTECTION |
IP level |
IP40 |
|
Power surge protection |
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) |
|
|
Ethernet port surge protection |
IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) |
|
|
EMI |
CLASS A |
|
|
ESD |
IEC 61000-4-2 Level 4(8K/15K) |
|
|
Free fall |
0.5m |
|
|
Environment |
Operating temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+85℃ |
|
|
Relative humidity |
5%~95%, (non-condensing) |
|
|
MTBF |
MTBF |
100000hours |
|
Mechanical structure |
Size |
143X104X48mm |
|
Installation Method |
DIN rail |
|
|
Shell material |
Aluminium alloy |
|
|
Weight |
0.52kg |
|
Industrial 4 Port Ethernet Switches USR-SDR041
Excellent industrial-level - anti-thunder, anti-static which always ensure sable transmission.
Protection Class
More Functions of 4 Port Ethernet Switches USR-SDR041
Wide Power Supply
Terminal power supply at DC 10-58V.
Two independent power supply circuits.
Natural heat dissipation
It adopts fanless which does not need
additional cooling equipment.
DIN-Rail Mounting
It can meet the requirements of different application scenes
Product Details
Application
Intelligent transportation network transmission
In the case of intelligent traffic scenes, a high-definition camera increases the data volume and increases the pressure of network bandwidth. USR-SDR041 unmanaged industrial ethernet switch supports a 100-megabyte rate to handle heavy traffic through smoothing. It reduces the construction cost.
