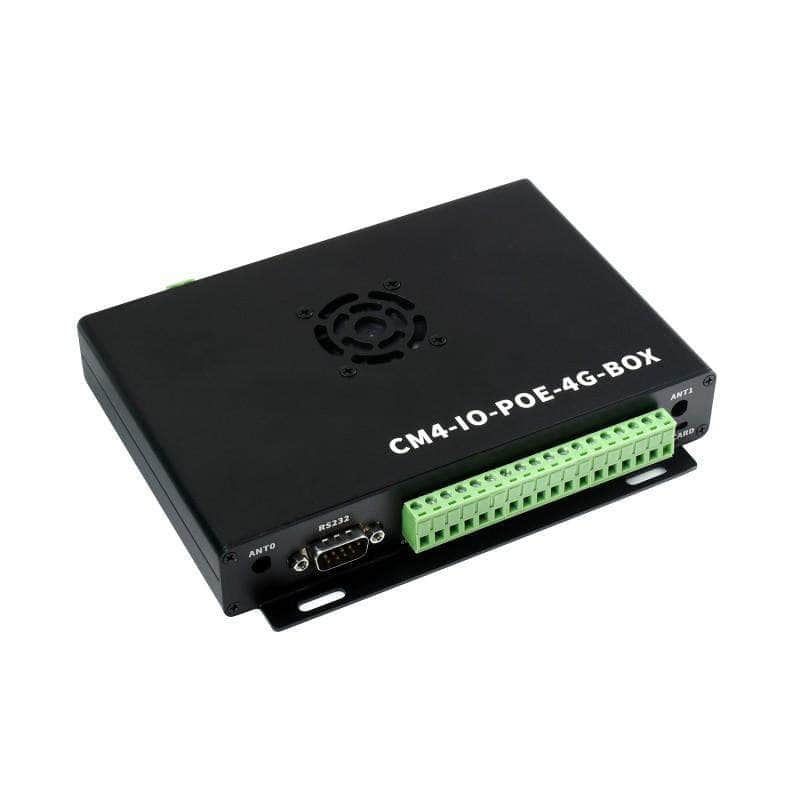

Industrial IoT Mini-Computer Raspberry Pi Compute Module 4, PoE, 5G/4G

Description



Industrial IoT Mini-Computer Raspberry Pi Compute Module 4, PoE, 4G

RPi CM4 is NOT included.

Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC


Base Board Specifications

CM4 SOCKET suitable for all variants of Compute Module 4
NETWORKING Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
M.2 B KEY, supports 5G / 4G module
SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication
CONNECTOR Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
USB Dual USB 2.0 Type A
DISPLAY Dual MIPI DSI display ports (15pin 1.0mm FPC connector)
CAMERA Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
VIDEO Dual HDMI ports, supports 4K 30fps output
RTC Real-time clock with battery socket and ability to wake Compute Module 4
STORAGE MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER allows speed adjustment and measurement, 5V / 12V input
POWER INPUT 7V~36V wide range
DIMENSIONS 160 × 114mm

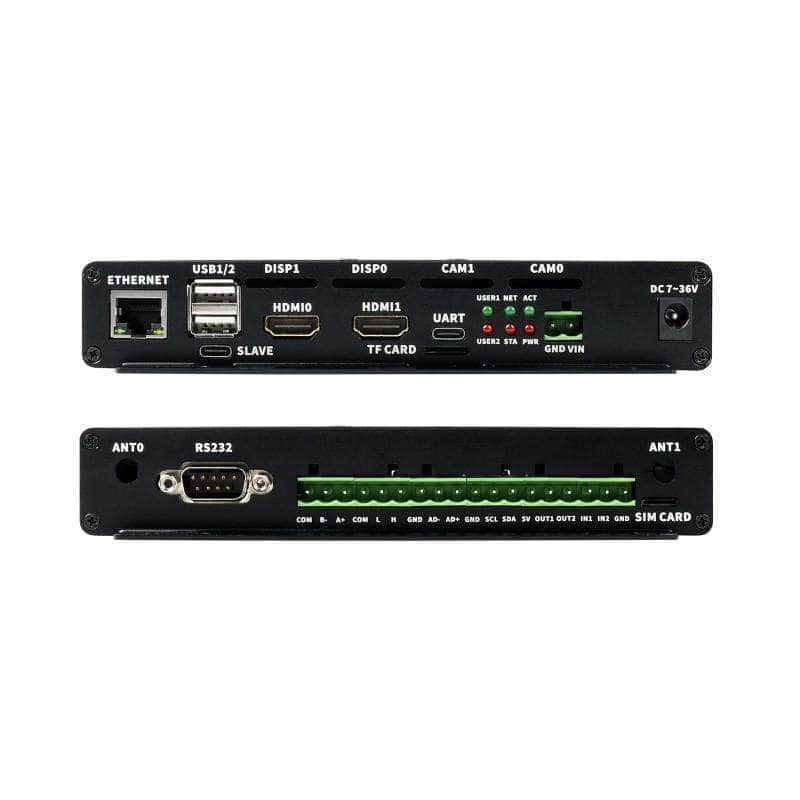

Rich Peripheral Connectors

Onboard Connectors Including M.2/CSI/DSI/HDMI/USB/ETH/PCIe/RS232/RS485

Precise Cut-Out With Clear Label

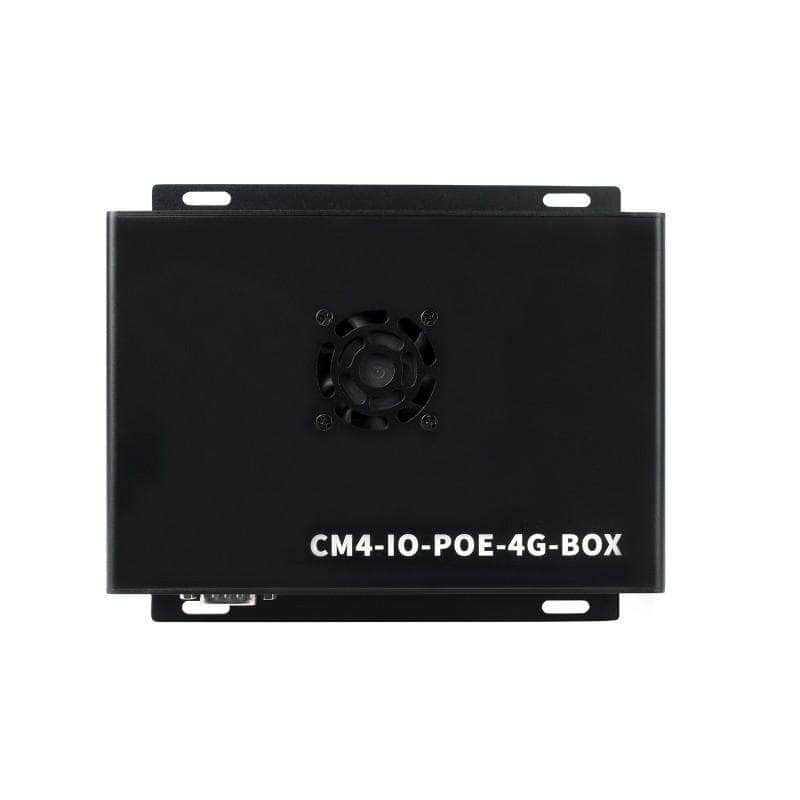

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

Wall Mount Holes On Two Sides, Handy For Mounting


Outline Dimensions



Industrial IoT Mini-Computer Raspberry Pi Compute Module 4, PoE, 5G/4G

Product form

SKU: CM4-IO-POE-4G-BOX

$199.00 $179.00 Excl. GST

$179.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    Industrial IoT Mini-Computer Raspberry Pi Compute Module 4, PoE, 4G

    RPi CM4 is NOT included.

    Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC


    Base Board Specifications

    CM4 SOCKET suitable for all variants of Compute Module 4
    NETWORKING Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
    M.2 B KEY, supports 5G / 4G module
    SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication
    CONNECTOR Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
    USB Dual USB 2.0 Type A
    DISPLAY Dual MIPI DSI display ports (15pin 1.0mm FPC connector)
    CAMERA Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
    VIDEO Dual HDMI ports, supports 4K 30fps output
    RTC Real-time clock with battery socket and ability to wake Compute Module 4
    STORAGE MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
    FAN HEADER allows speed adjustment and measurement, 5V / 12V input
    POWER INPUT 7V~36V wide range
    DIMENSIONS 160 × 114mm

    Rich Peripheral Connectors

    Onboard Connectors Including M.2/CSI/DSI/HDMI/USB/ETH/PCIe/RS232/RS485

    Precise Cut-Out With Clear Label

    Cooling Fan Included

    Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

    Wall Mount Holes On Two Sides, Handy For Mounting


    Outline Dimensions
