Industrial Light Intensity Sensor, MODBUS-RTU RS485 0-2V

Description



Industrial Light Intensity Sensor, MODBUS-RTU RS485 0-2V

Industrial ambient light sensor, or illuminance sensor, measures the ambient illuminance. Each sensor is calibrated and offers excellent accuracy and consistency. Applications are scientific research, solar farms, greenhouse, weather station, etc.

Features:

  • Wide-range measurement: up to 200000lux
  • Output interface with RS485, Voltage
  • Level indicator and spring-loaded for installation
  • IP66 rated: waterproof & dustproof, suitable for outdoor applications
  • High accuracy and consistency with excellent stability
  • Reverse power protection and built-in TVS/ESD protection


Light intensity sensors are used to measure ambient illuminance in a given environment. This can have many important applications. Light directly impacts the growth of plants, so in agriculture, it can run manage farms and greenhouses more efficiently with real-time light data and analysis. Operators of electric grids and solar farms can use the data to predict the available electricity and run their operations more efficiently.

This Light Intensity Sensor (S-Light-01) is ideal for this kind of environment. It is IP66 rated, waterproof, and dustproof, and has no problem working under harsh conditions like solar farms, outdoor agricultural farms, as well as greenhouses. Each sensor is calibrated and offers high accuracy and consistency.

This sensor support two output options MODBUS-RTU RS485 protocol or analog voltage (0-2v) and can be used with a data logger conveniently.

Applications:

  • Weather stations
  • Solar farms
  • Outdoor Farming
  • Greenhouse
  • Research




Specifications



Output Interface

RS485 Modbus-RTU,  Analog Voltage 0-2V (Output resistance ~0ohm)

Power Supply

3.9-30V/DC

Power Consumption

7mA@24V DC

Illuminance Range

Range:0～200000 Lux, Accuracy:±6% , Resolution:1lux

Direction Error

30°±3%,60°±6%,80°±24%（Cosine Characteristics）

IP Ratings

IP66

Operating Temperature

-40~85°C

Installation

Screw hole * 3

Cable Length

2 meters

Dimension

75*55*58mm



Wiring

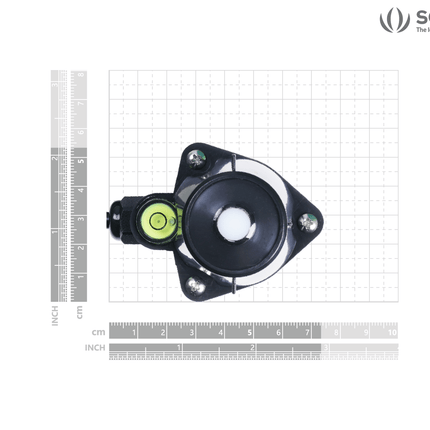

Dimensions














Read more

Industrial Light Intensity Sensor, MODBUS-RTU RS485 0-2V

Product form
Free pickup in our shop(s)

SKU: 314990740

$169.00 $149.00 Excl. GST

$149.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    Industrial Light Intensity Sensor, MODBUS-RTU RS485 0-2V

    Industrial ambient light sensor, or illuminance sensor, measures the ambient illuminance. Each sensor is calibrated and offers excellent accuracy and consistency. Applications are scientific research, solar farms, greenhouse, weather station, etc.

    Features:

    • Wide-range measurement: up to 200000lux
    • Output interface with RS485, Voltage
    • Level indicator and spring-loaded for installation
    • IP66 rated: waterproof & dustproof, suitable for outdoor applications
    • High accuracy and consistency with excellent stability
    • Reverse power protection and built-in TVS/ESD protection


    Light intensity sensors are used to measure ambient illuminance in a given environment. This can have many important applications. Light directly impacts the growth of plants, so in agriculture, it can run manage farms and greenhouses more efficiently with real-time light data and analysis. Operators of electric grids and solar farms can use the data to predict the available electricity and run their operations more efficiently.

    This Light Intensity Sensor (S-Light-01) is ideal for this kind of environment. It is IP66 rated, waterproof, and dustproof, and has no problem working under harsh conditions like solar farms, outdoor agricultural farms, as well as greenhouses. Each sensor is calibrated and offers high accuracy and consistency.

    This sensor support two output options MODBUS-RTU RS485 protocol or analog voltage (0-2v) and can be used with a data logger conveniently.

    Applications:

    • Weather stations
    • Solar farms
    • Outdoor Farming
    • Greenhouse
    • Research




    Specifications



    Output Interface

    RS485 Modbus-RTU,  Analog Voltage 0-2V (Output resistance ~0ohm)

    Power Supply

    3.9-30V/DC

    Power Consumption

    7mA@24V DC

    Illuminance Range

    Range:0～200000 Lux, Accuracy:±6% , Resolution:1lux

    Direction Error

    30°±3%,60°±6%,80°±24%（Cosine Characteristics）

    IP Ratings

    IP66

    Operating Temperature

    -40~85°C

    Installation

    Screw hole * 3

    Cable Length

    2 meters

    Dimension

    75*55*58mm



    Wiring









    Dimensions














    Read more
