Description

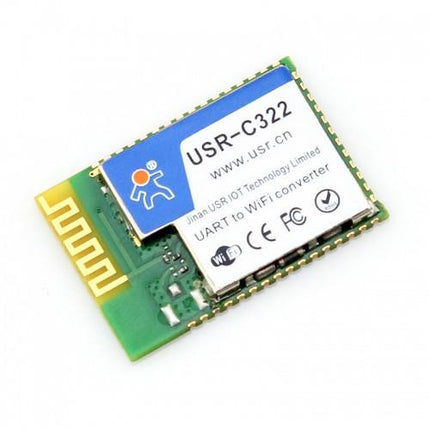

Industrial Low Power Serial UART to Wifi Module with TI CC3200 Chip - USR-C322
Unique Features
1.Adopt TI CC3200 solution
2.Industrial level, NO data loss!
3.Low power for standby 3.5mA, deep sleep 25uA
4.Working voltage range from -40~85 degree
CC3200 Wifi Module Download
User Manual: USR-C322
Client Support Center: submit your ticket at h.usriot.com If you have a technical inquiry about the product.
CC3200 Wifi Module Introduction
This is a UART to wifi module, used for data transparent transmission.USR-C322 is a wifi module released by USR IOT, which has the features of minimizing, low power and industry-grade. The hardware of USR-C322 wifi module integrates MAC, baseband chip, RF transceiver unit and power amplifier.
USR-C322 wifi module is based on TI CC3200 chip, which has industrial ARM Cortex-M4 core and ultra-low power operation mechanism. And it supports WiFi protocol and TCP/IP protocol. The user can achieve the function of UART devices connecting to the Internet with a simple configuration.
CC3200 Wifi Module Features
- Support Wi-Fi@2.4 GHz 802.11 b/g/n wireless standards
- Based on ARM Cortex-M4 kernel, running frequency of 80 MHZ
- Support Simplelink/usrlink networking configuration
- Support custom webpage function
- High-speed UART: Max baud rate of 3M bps (with specific firmware and opening the flow control; In this firmware, the module only can work in transparent transmission mode)
- The fully integrated serial to wifi TCP/UDP transmission function, the rate of serial port up to 3M bps
- Support 2 uart and 3 sockets communication
- DHCP, DNS, WebSocket, HTTPD Client function available
- PC1 16 bytes encryption when work in transparent transmission mode
- Support SSL Client function
- Can search in local area network (LAN) and wireless parameters setting function
- Support TCP/UDP Client registration packet mechanism
- Support class RFC2217 automatic baud rate adaptation function
- Supports 485 transmission control
- Support AT+ simple instruction set configuration
- Internal/external antenna option
- Mini size: 18.22mm*26.65mm*2.8mm SMT
CC3200 Wifi Module Parameters
|
Category
|
Parameter
|
Value
|
| Wireless Parameters |
Certification
|
CE, FCC, ROHS, WEEE |
|
Wireless Standard
|
802.11 b/g/n |
|
Transmit Power
|
17.0 dBm @ 1 DSSS
17.25 dBm @ 11 CCK
13.5 dBm @ 54 OFDM |
|
Receive Sensitivity
|
–94.7 dBm @ 1 DSSS
–87.0 dBm @ 11 DSSS
–73.0 dBm @ 54 OFDM |
|
Antenna
|
External: I-PEX connector
Internal: on-board antenna |
| Hardware Parameters |
Data Interface
|
UART |
|
Operating Voltage
|
3.0~3.6V |
|
Operating Current
|
AP: 70mA
STA: 18mA
Peak: 247mA |
|
Operating Temp.
|
-40 ~ 85°C |
|
Storage Temp.
|
-40 ~ 125°C, 5 ~ 95% RH |
|
Size
|
18.22mm*26.65mm*2.8mm |
|
External Interface
|
SMT |
| Software Parameters |
Wireless Network Type
|
STA/AP |
|
Security Mechanism
|
WEP-A / WPA-PSK / WPA2-PSK |
|
Encryption Type
|
WEP64 / WEP128 / TKIP / AES |
|
Update Firmware
|
Local WiFi |
|
Network Protocol
|
IPv4, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP |
|
User Configuration
|
Built-in webpage
Serial AT command
Network AT command |
